UGC DOR5984024
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$93.56 CAD - $93.56 CAD
$93.56 CAD
$93.56 CAD - $93.56 CAD
$93.56 CAD

Vendu en lots de : 1

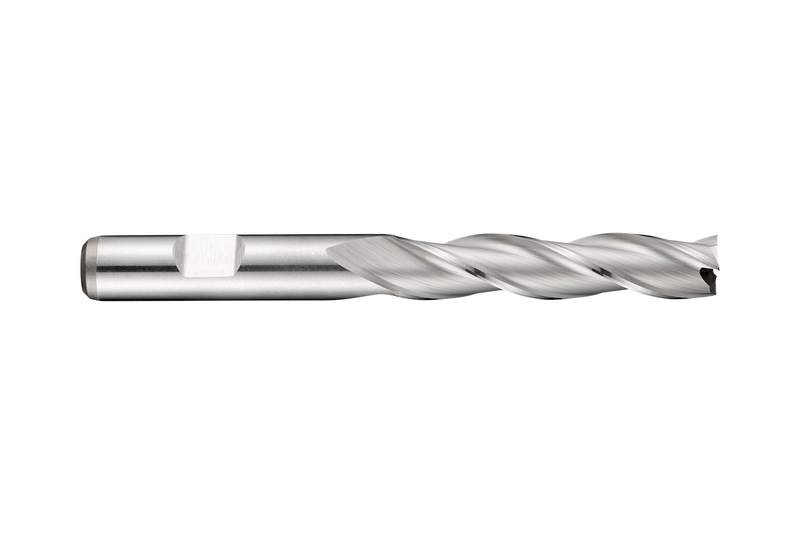

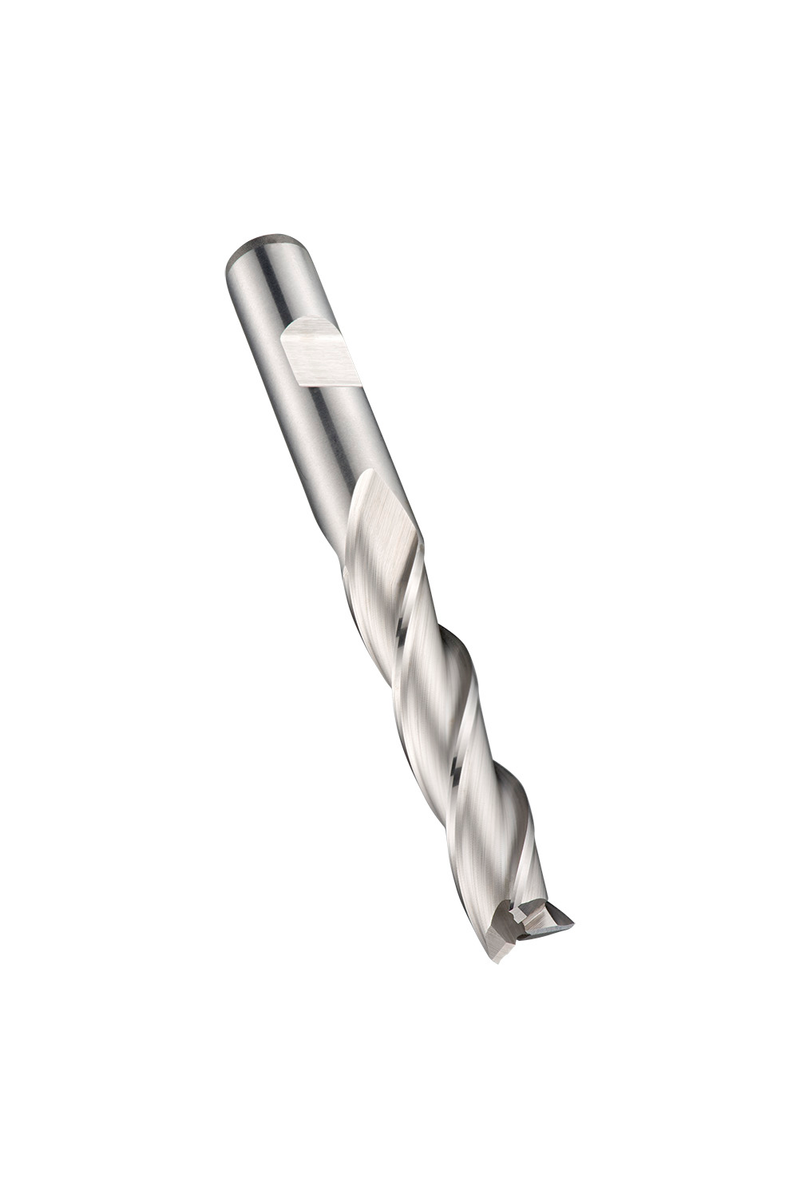

Fraise 3 dents série longue, diamètre 13 mm, longueur de coupe 53 mm, longueur totale 110 mm et dégagement de 64,5 mm avec réduction de diamètre, selon la norme DIN 844 L avec queue Weldon de 12 mm, HSS-E cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements et de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C34613.0
GradeLumineux
Product Number5984024
Product FamilyC346
Insert Geometry
Depth of Cut Max — in (APMX)2.0866"
Depth of Cut Max — mm (APMX)53.0 mm

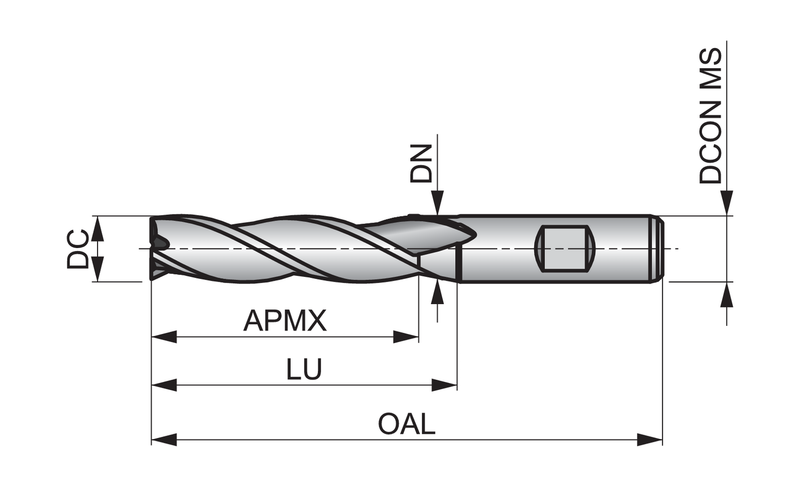

Dimensions
Cutting Diameter — in (DC)0.5118"
Cutting Diameter — mm (DC)13.0 mm
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

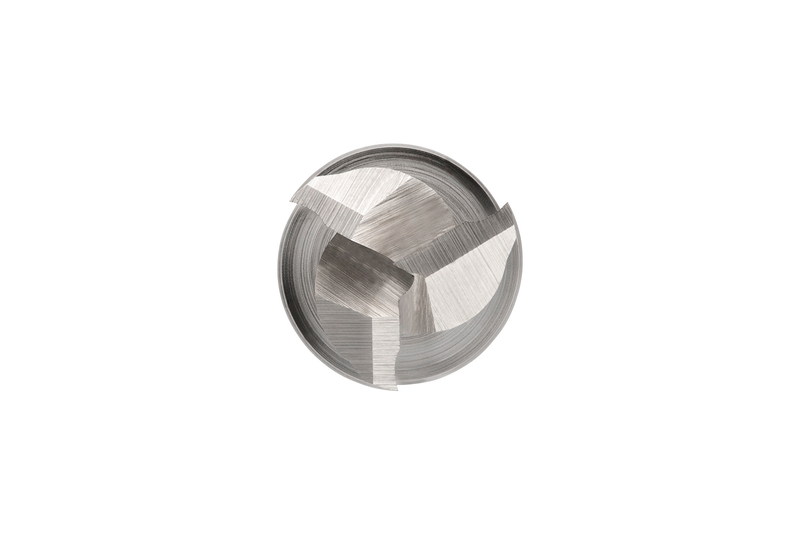

Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number126264
EAN7320760126264
File Type Download
C34613.0 — Line Drawing PDF Download
