UGC DOR5984030
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.50 CAD - $52.50 CAD
$52.50 CAD
$52.50 CAD - $52.50 CAD
$52.50 CAD

Vendu en lots de : 1

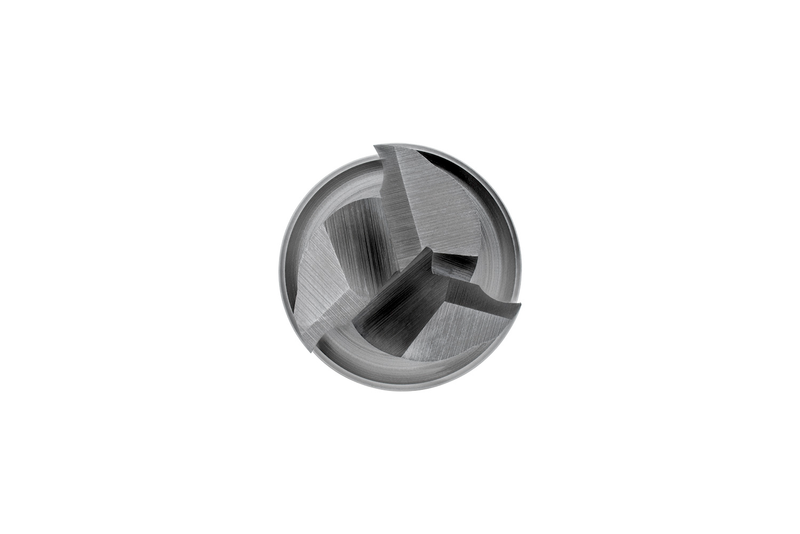

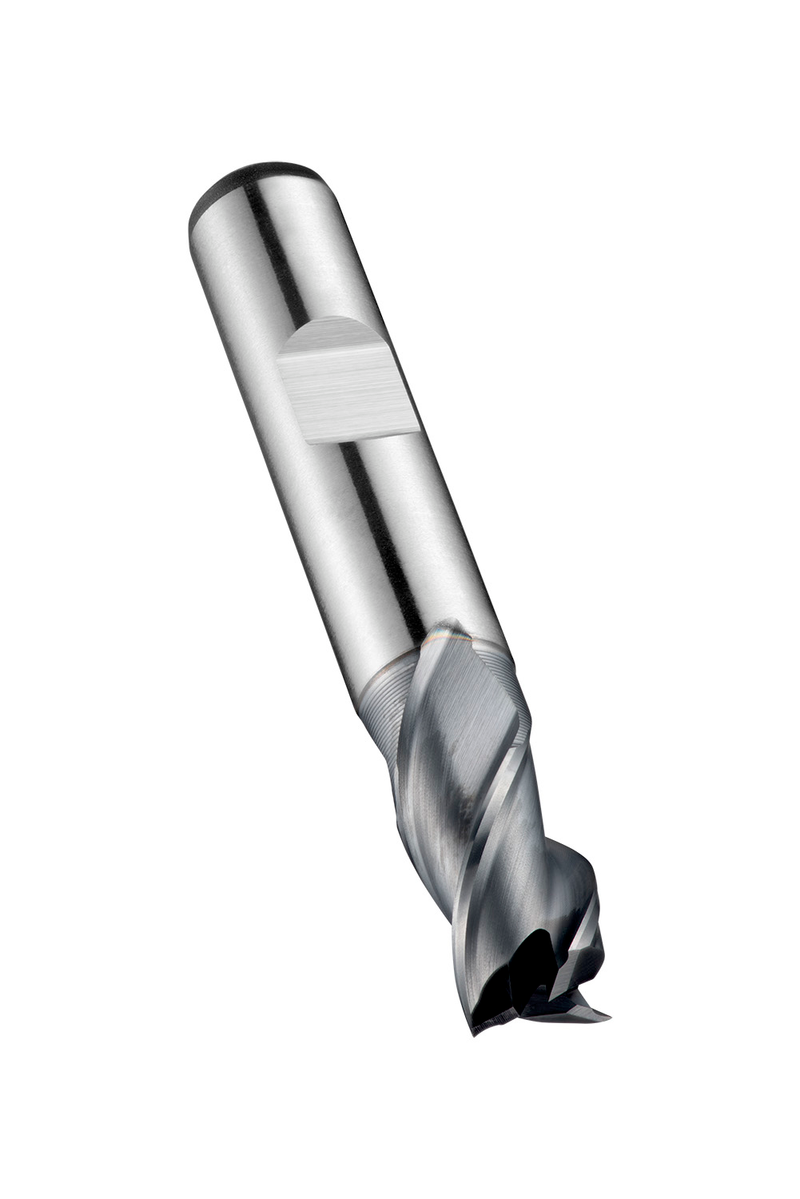

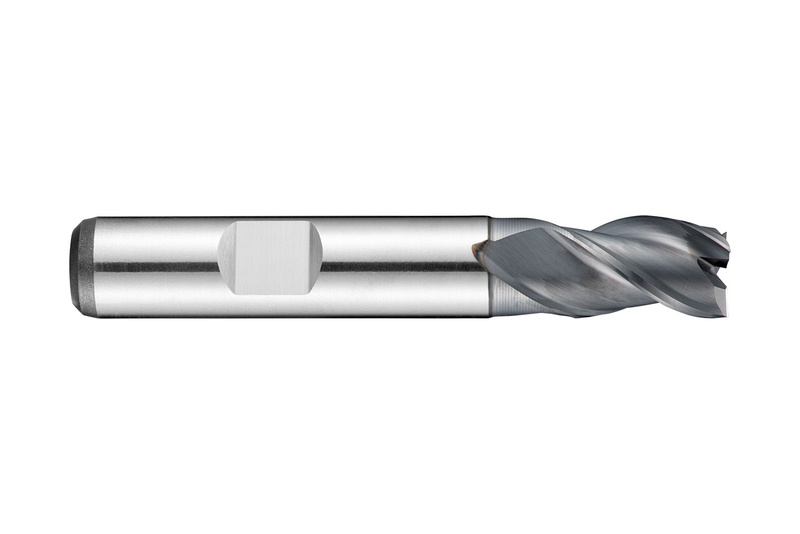

Fraise-scie extra courte à 3 dents, diamètre 4 mm avec une longueur de coupe de 7 mm et une longueur totale de 51 mm, selon la norme DIN 327 D avec une queue Weldon de 6 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 40° et angle de dégagement de 15° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage, l'acier inoxydable et l'aluminium corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3674.0
GradeALCRONA
Product Number5984030
Product FamilyC367

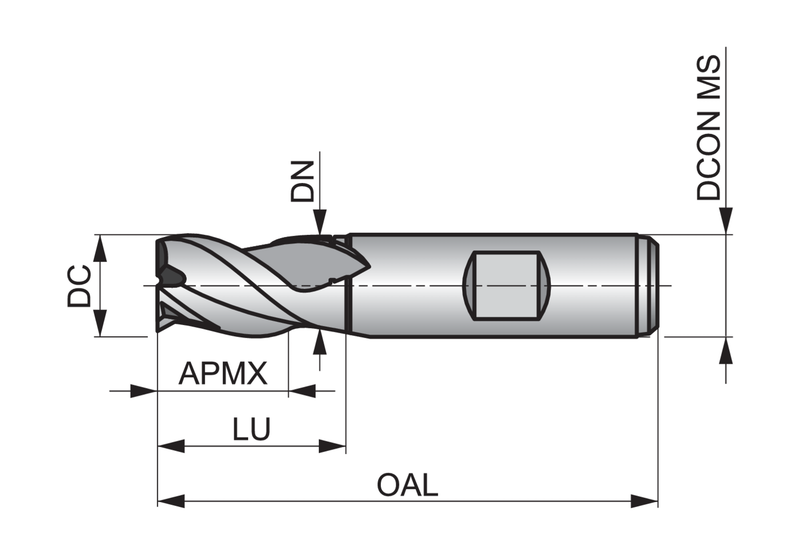

Insert Geometry
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.0079"
Overall Length — mm (OAL)51.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355367
EAN7320760355367
File Type Download
C3674.0 — Line Drawing PDF Download
