C1396.5
C1396.5
C1396.5
C1396.5

C1396.5

UGC DOR5984031
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.37 CAD - $62.37 CAD
$62.37 CAD
$62.37 CAD - $62.37 CAD
$62.37 CAD

Vendu en lots de : 1

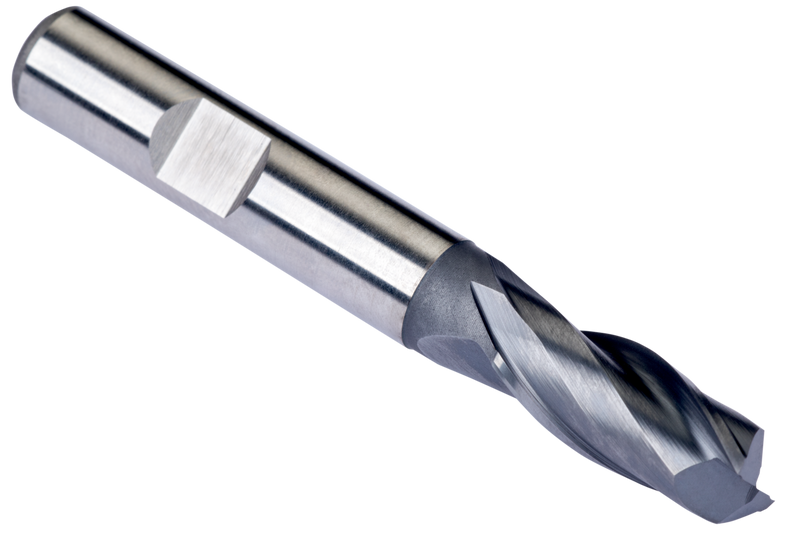

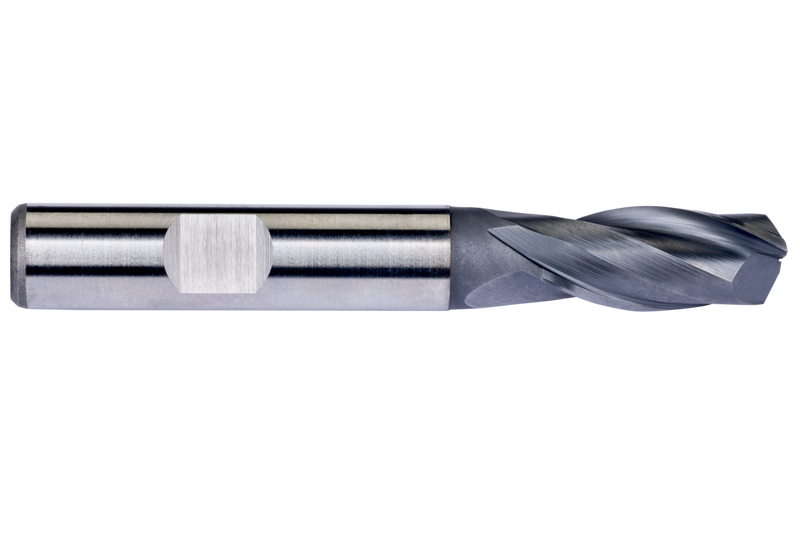

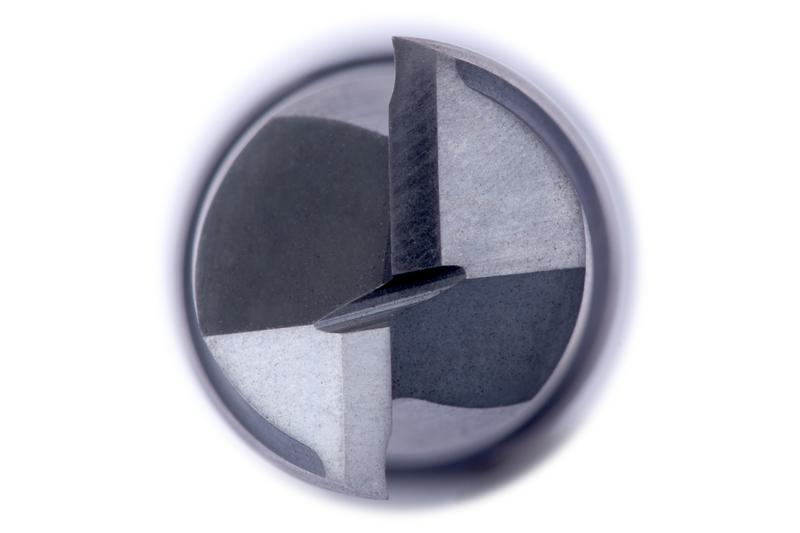

Fraise 2 dents pour rainurage série courte, diamètre 6,5mm, longueur de coupe 16mm et longueur totale 66mm, selon la norme DIN 844 K avec queue Weldon de 10mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le rainurage et l'interpolation hélicoïdale dans les aciers non alliés, aciers alliés, fontes, cuivre ou alliages de cuivre et titane ou alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1396.5
GradeTiCN
Product Number5984031
Product FamilyC139
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.2559"
Cutting Diameter — mm (DC)6.5 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573631
EAN7320760573631
File Type Download
C1396.5 — Line Drawing PDF Download
