UGC DOR5984035
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.96 CAD - $51.96 CAD
$51.96 CAD
$51.96 CAD - $51.96 CAD
$51.96 CAD

Vendu en lots de : 1

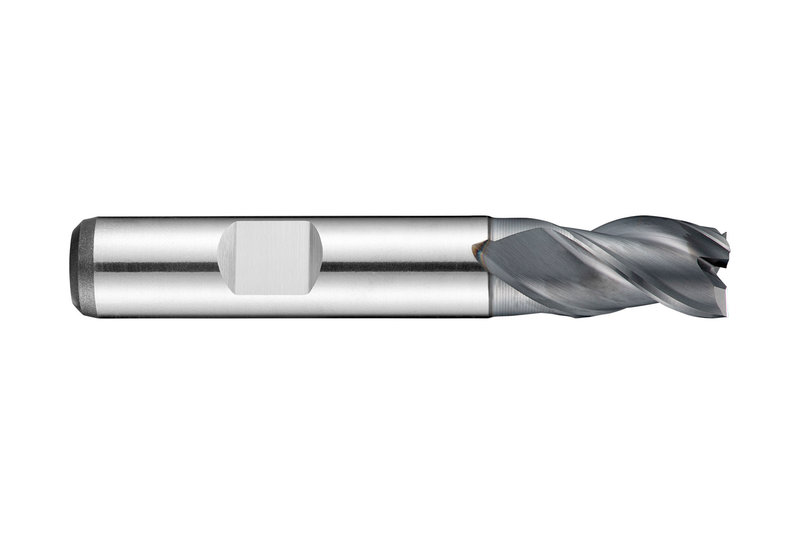

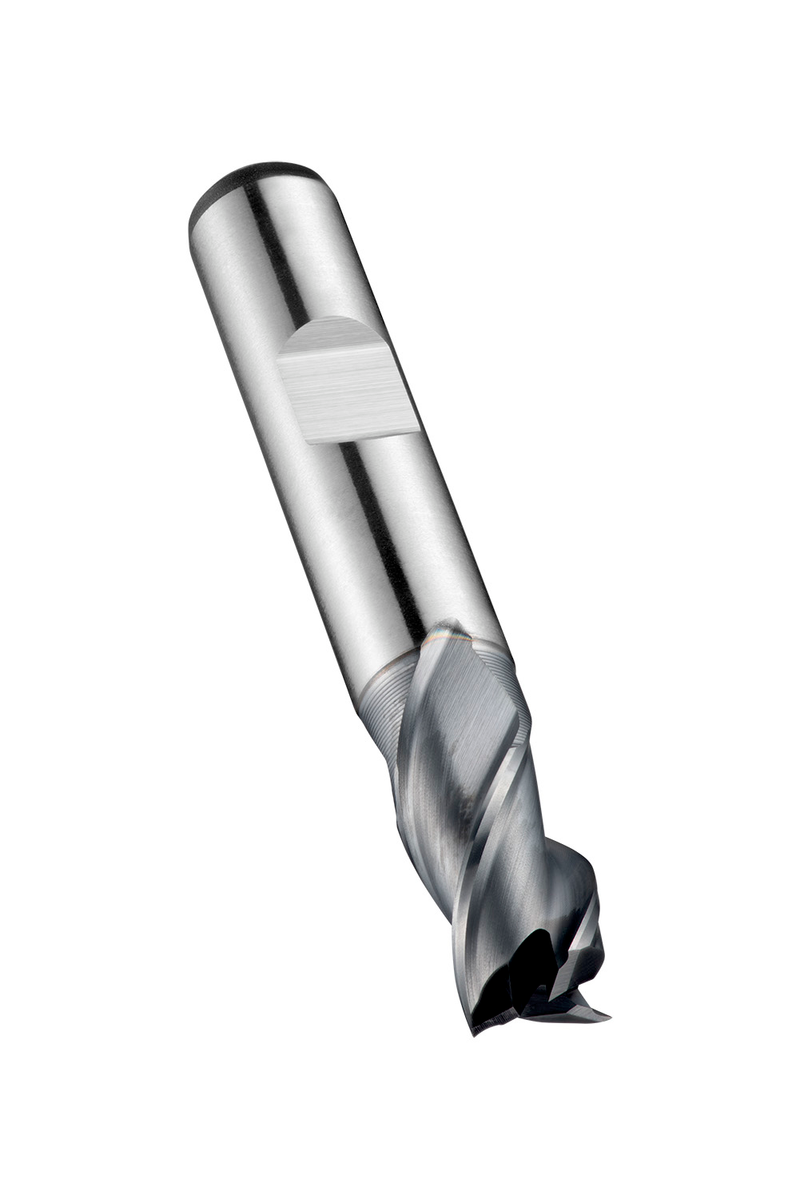

Fraise à rainurer à queue cylindrique, série extra-courte, 3 dents, diamètre 5 mm, longueur de coupe 8 mm et longueur totale 52 mm, selon la norme DIN 327 D avec un attachement Weldon de 6 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 40° et angle de dépouille 15° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage, l'acier inoxydable et l'aluminium corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3675.0
GradeALCRONA
Product Number5984035
Product FamilyC367
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm

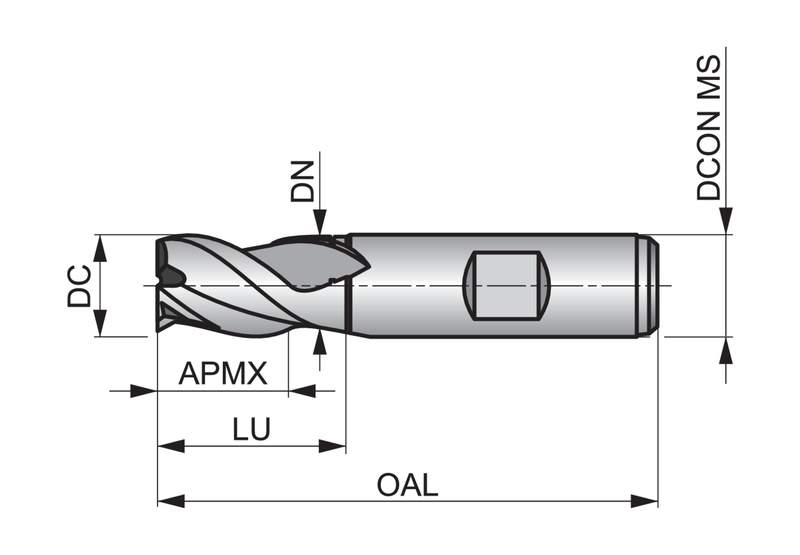

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

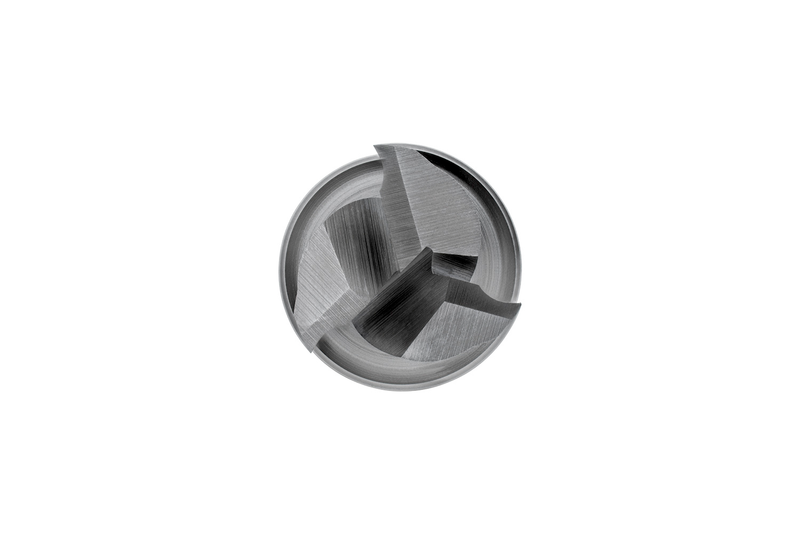

Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355374
EAN7320760355374
File Type Download
C3675.0 — Line Drawing PDF Download
