UGC DOR5984041
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.31 CAD - $52.31 CAD
$52.31 CAD
$52.31 CAD - $52.31 CAD
$52.31 CAD

Vendu en lots de : 1

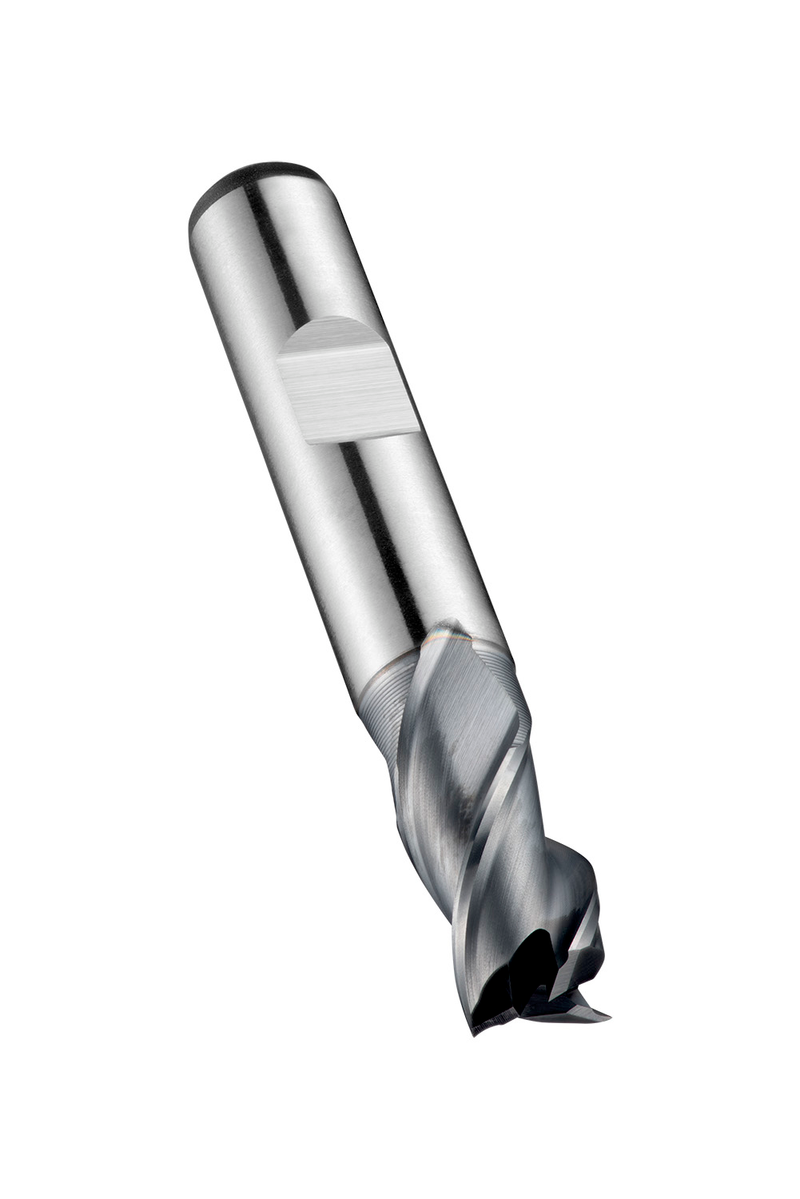

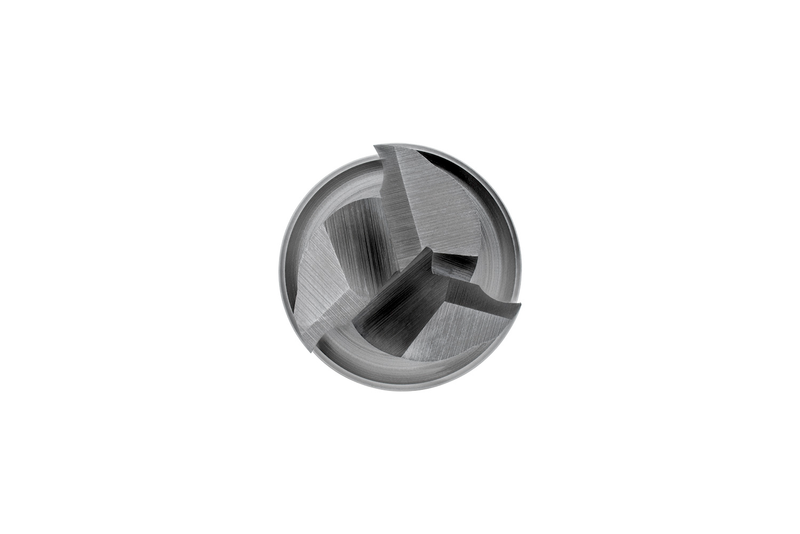

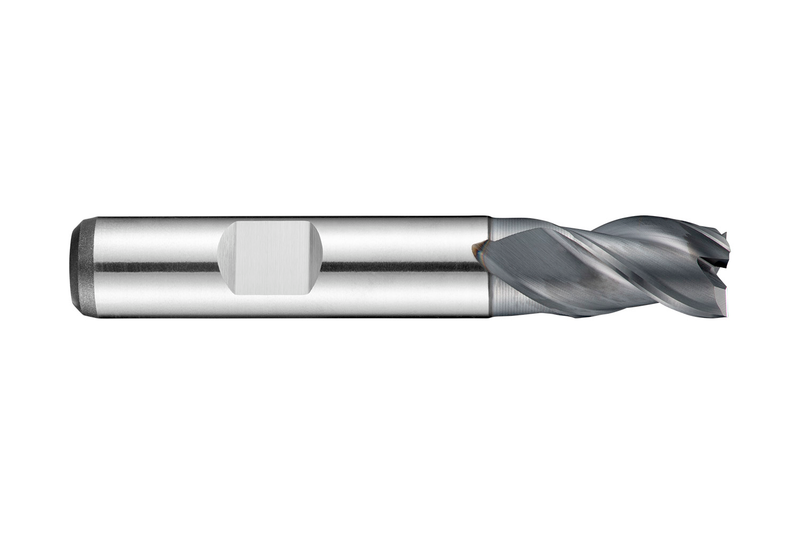

Fraise-scie extra-courte à 3 dents, diamètre 6mm avec une longueur de coupe de 8mm et une longueur totale de 52mm, conforme à la norme DIN 327 D avec un attachement Weldon de 6mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 40° et angle de dépouille de 15° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage, l'acier inoxydable et l'aluminium forgé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3676.0
GradeALCRONA
Product Number5984041
Product FamilyC367

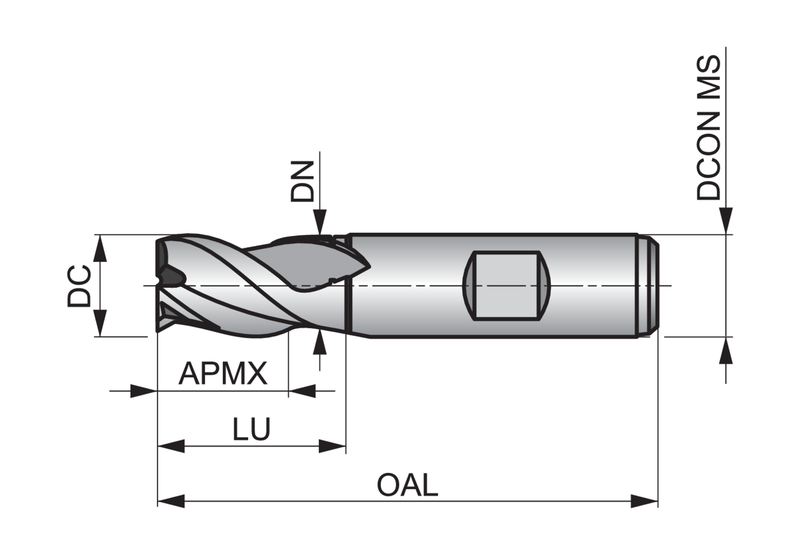

Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355381
EAN7320760355381
File Type Download
C3676.0 — Line Drawing PDF Download
