UGC DOR5984046
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.40 CAD - $74.40 CAD
$74.40 CAD
$74.40 CAD - $74.40 CAD
$74.40 CAD

Vendu en lots de : 1

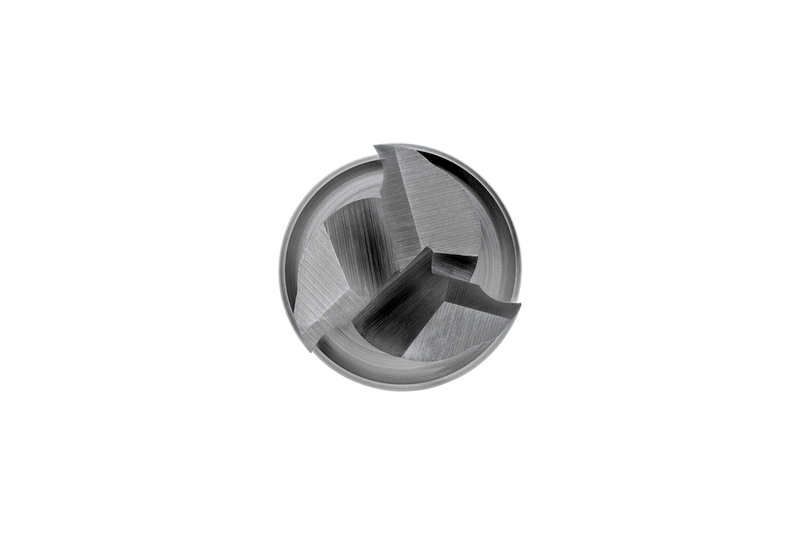

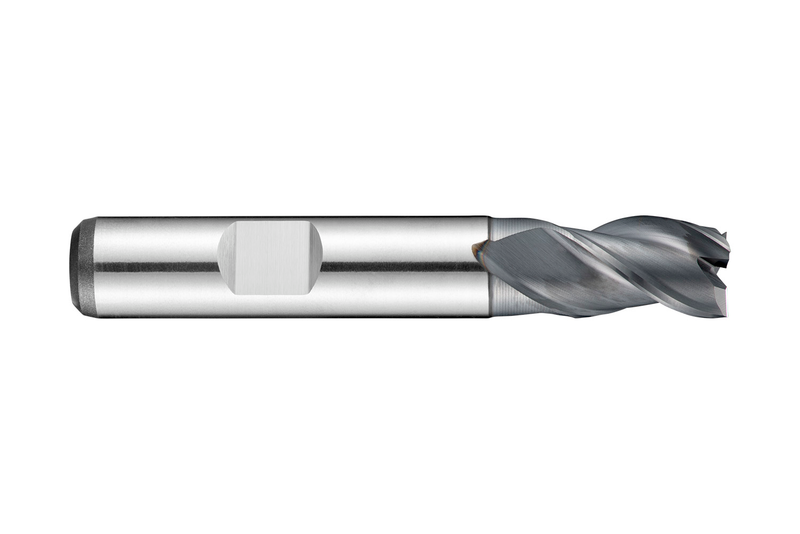

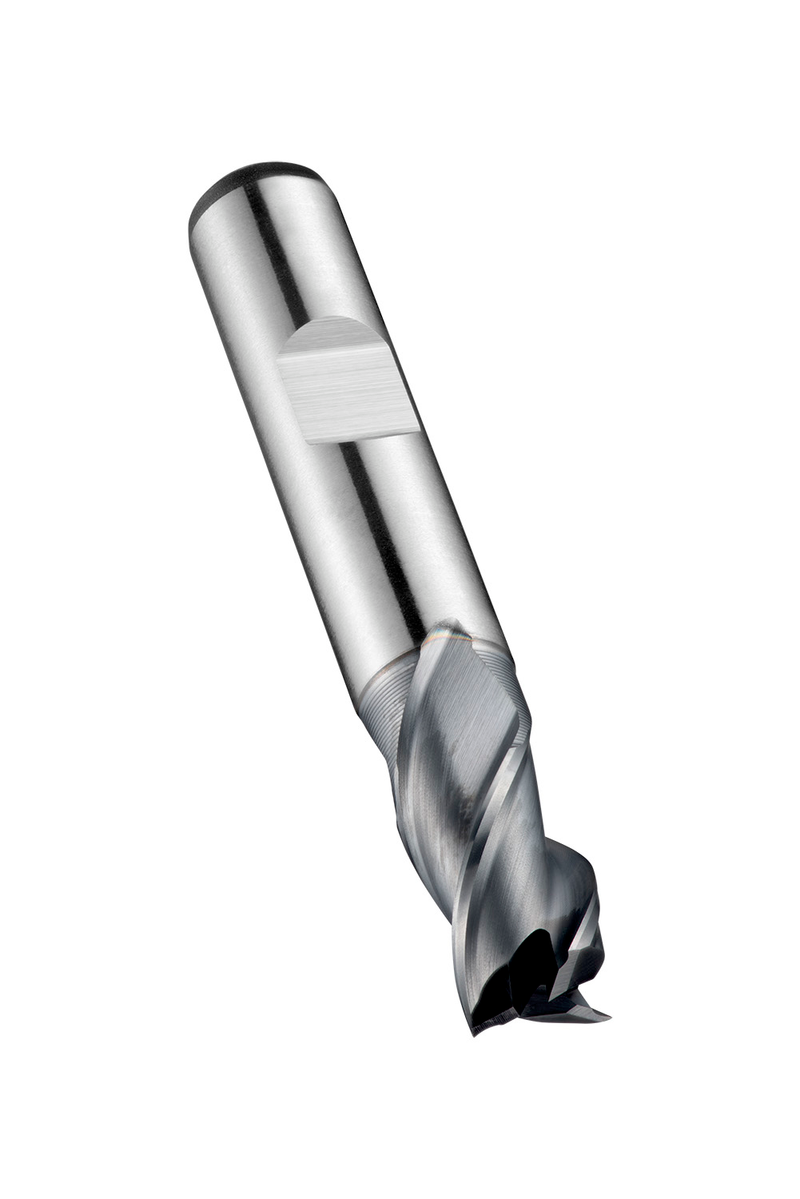

Fraise-scie extra-courte à 3 dents, diamètre 7 mm avec 10 mm de longueur de coupe et 60 mm de longueur totale, selon la norme DIN 327 D avec une queue Weldon de 10 mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 40° et angle de dépouille de 15° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans les aciers de décolletage, les aciers inoxydables et l'aluminium corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3677.0
GradeALCRONA
Product Number5984046
Product FamilyC367
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

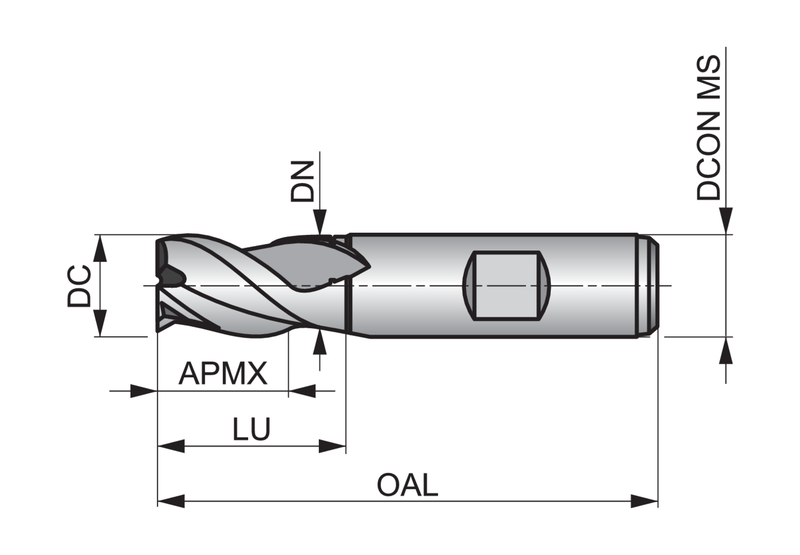

Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355398
EAN7320760355398
File Type Download
C3677.0 — Line Drawing PDF Download
