UGC DOR5984052
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$141.13 CAD - $141.13 CAD
$141.13 CAD
$141.13 CAD - $141.13 CAD
$141.13 CAD

Vendu en lots de : 1

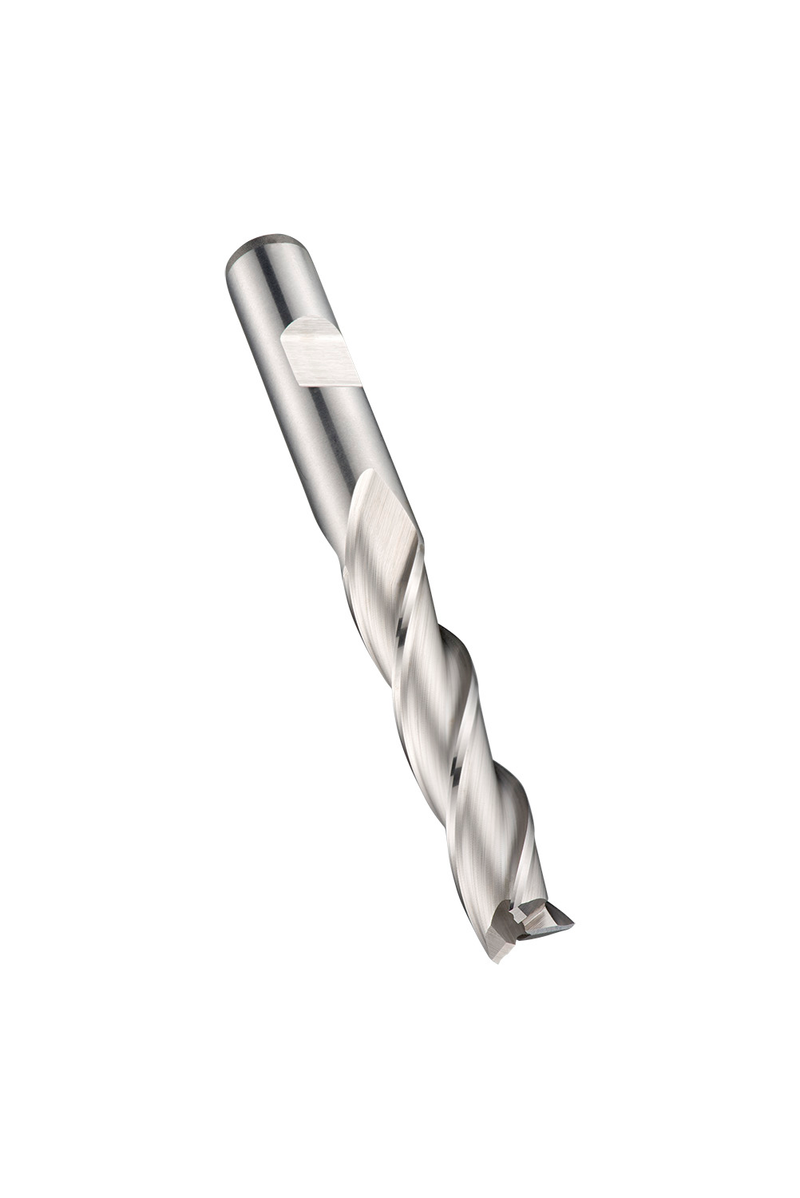

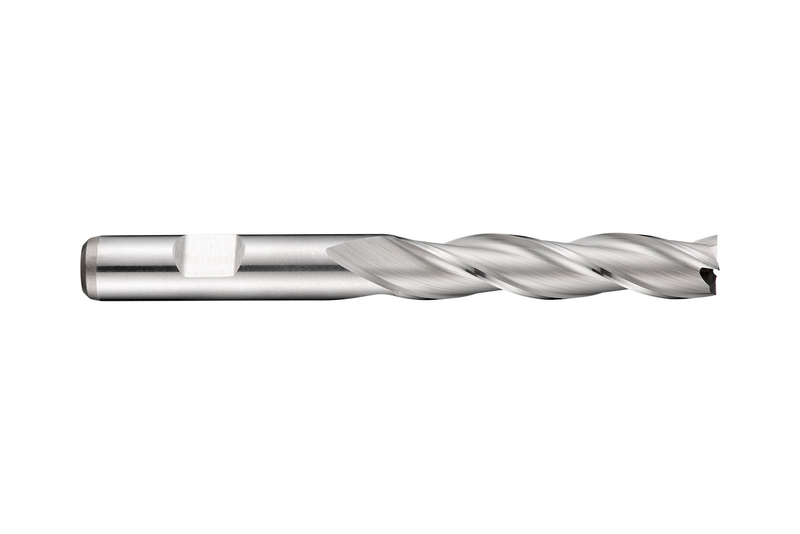

Fraise trois tailles longue, diamètre 20mm, longueur de coupe 75mm, longueur totale 141mm et portée 90.5mm avec dégagement de col, selon la norme DIN 844 L avec un attachement Weldon 20mm, HSS-E cobalt avec finition brillante, hélice 30° et angle de coupe 12° pour le fraisage d'épaulement et le rainurage dans les aciers à usinage facile et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C34620.0
GradeLumineux
Product Number5984052
Product FamilyC346

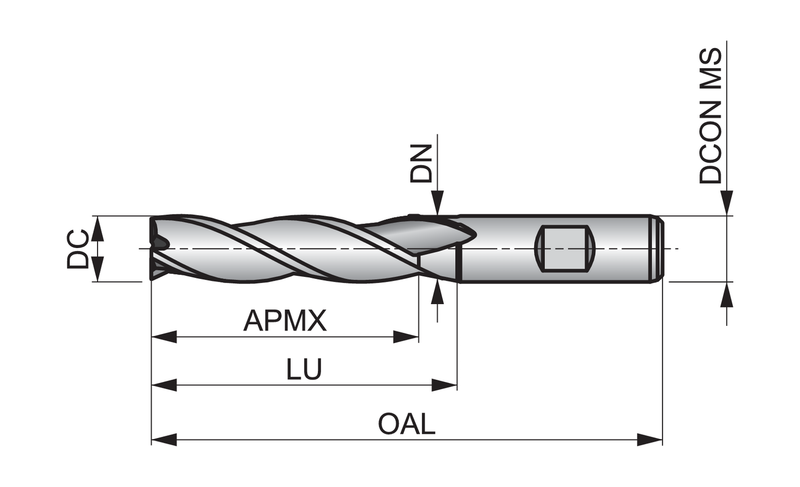

Insert Geometry
Depth of Cut Max — in (APMX)2.9528"
Depth of Cut Max — mm (APMX)75.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)5.5512"
Overall Length — mm (OAL)141.0 mm
Usable Length — mm (LU)90.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm

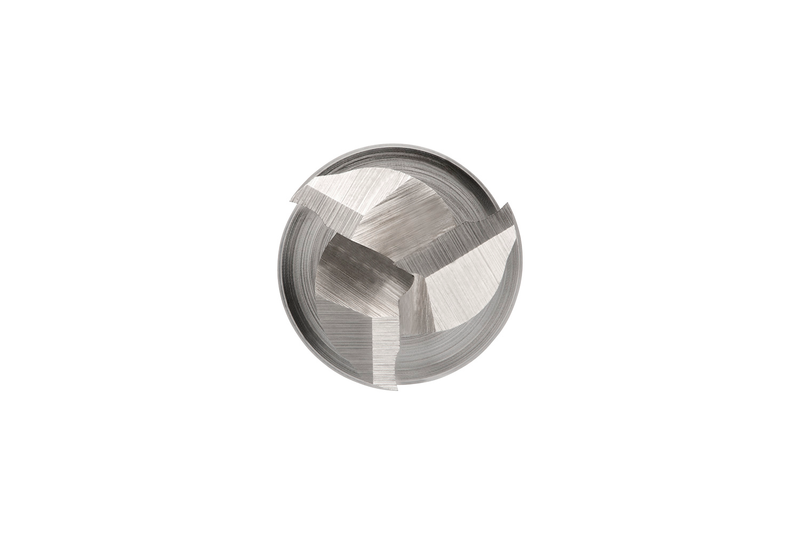

Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number126318
EAN7320760126318
File Type Download
C34620.0 — Line Drawing PDF Download
