UGC DOR5984053
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.80 CAD - $61.80 CAD
$61.80 CAD
$61.80 CAD - $61.80 CAD
$61.80 CAD

Vendu en lots de : 1

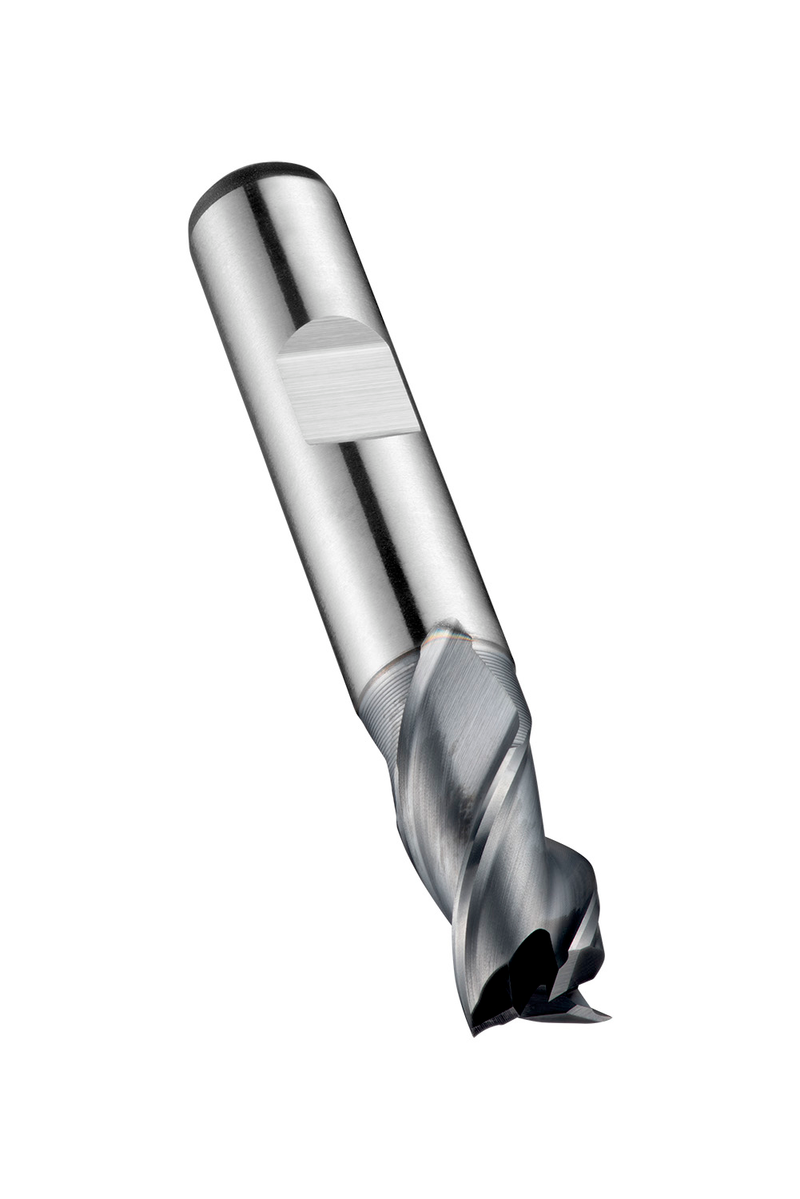

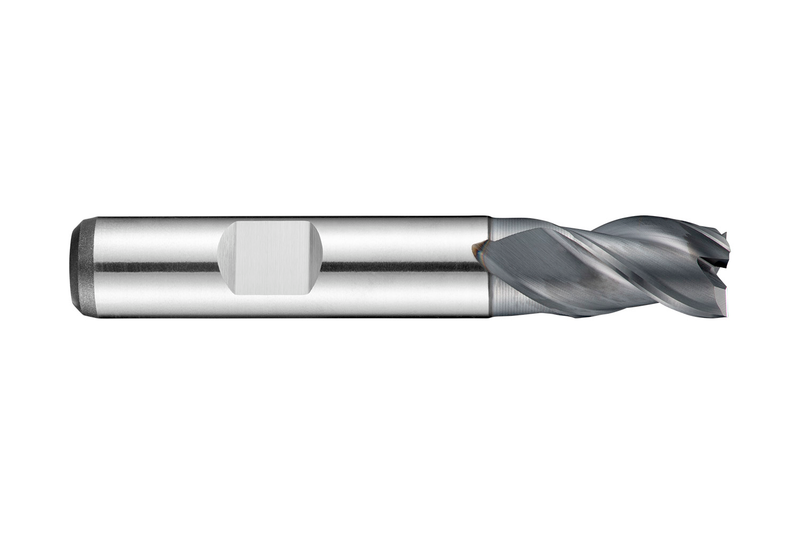

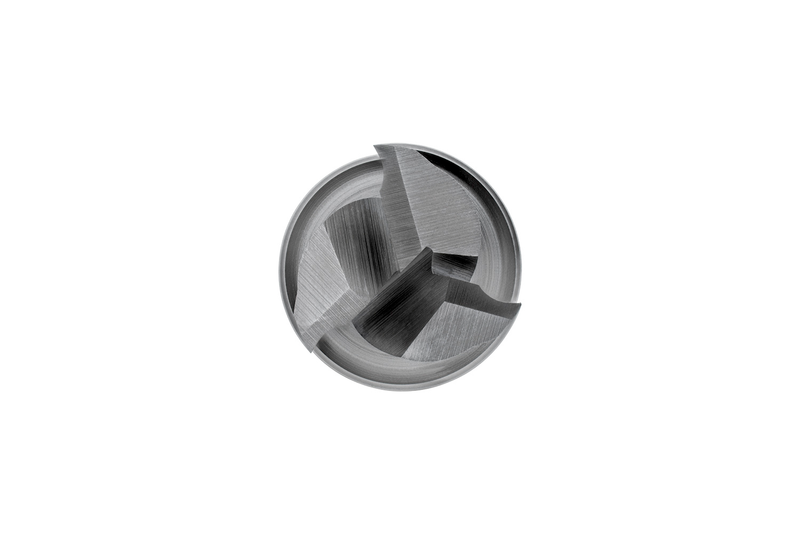

Fraise-scie extra courte à 3 dents, diamètre de 8 mm avec une longueur de coupe de 11 mm et une longueur totale de 61 mm, selon la norme DIN 327 D avec une queue Weldon de 10 mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 40° et angle de coupe de 15° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage dans l'acier de décolletage, l'acier inoxydable et l'aluminium corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3678.0
GradeALCRONA
Product Number5984053
Product FamilyC367
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

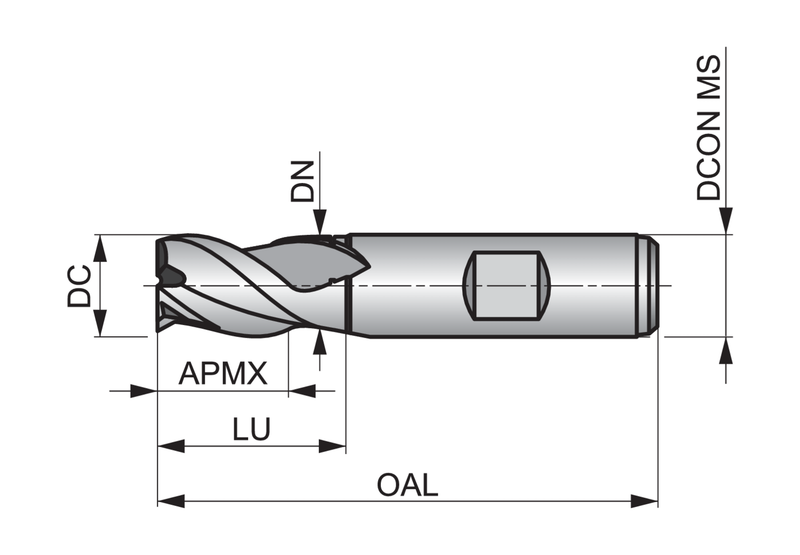

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4016"
Overall Length — mm (OAL)61.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355404
EAN7320760355404
File Type Download
C3678.0 — Line Drawing PDF Download
