UGC DOR5984062
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.13 CAD - $43.13 CAD
$43.13 CAD
$43.13 CAD - $43.13 CAD
$43.13 CAD

Vendu en lots de : 1

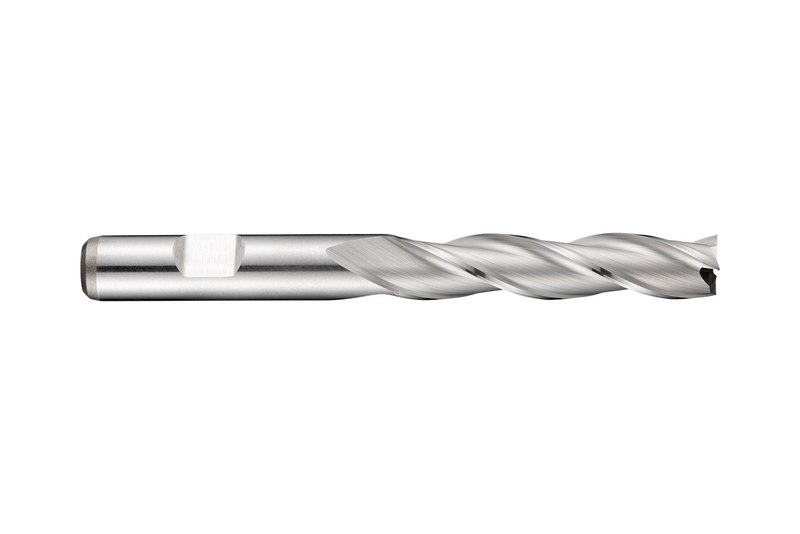

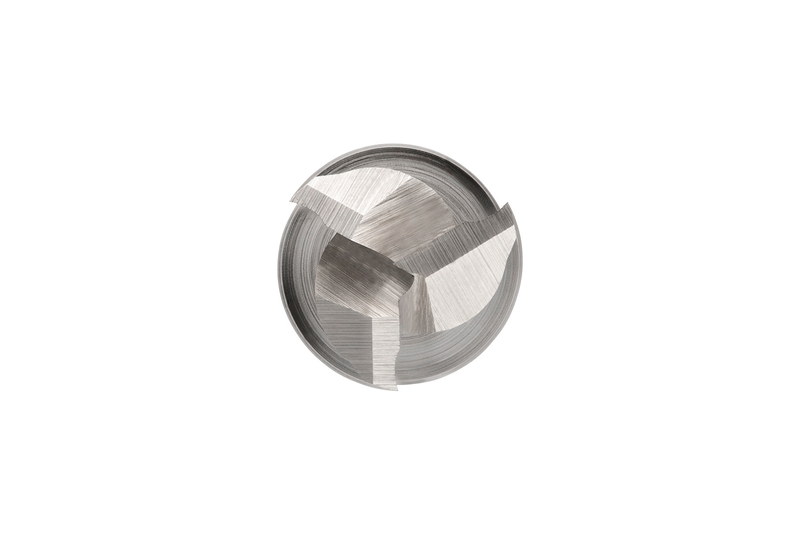

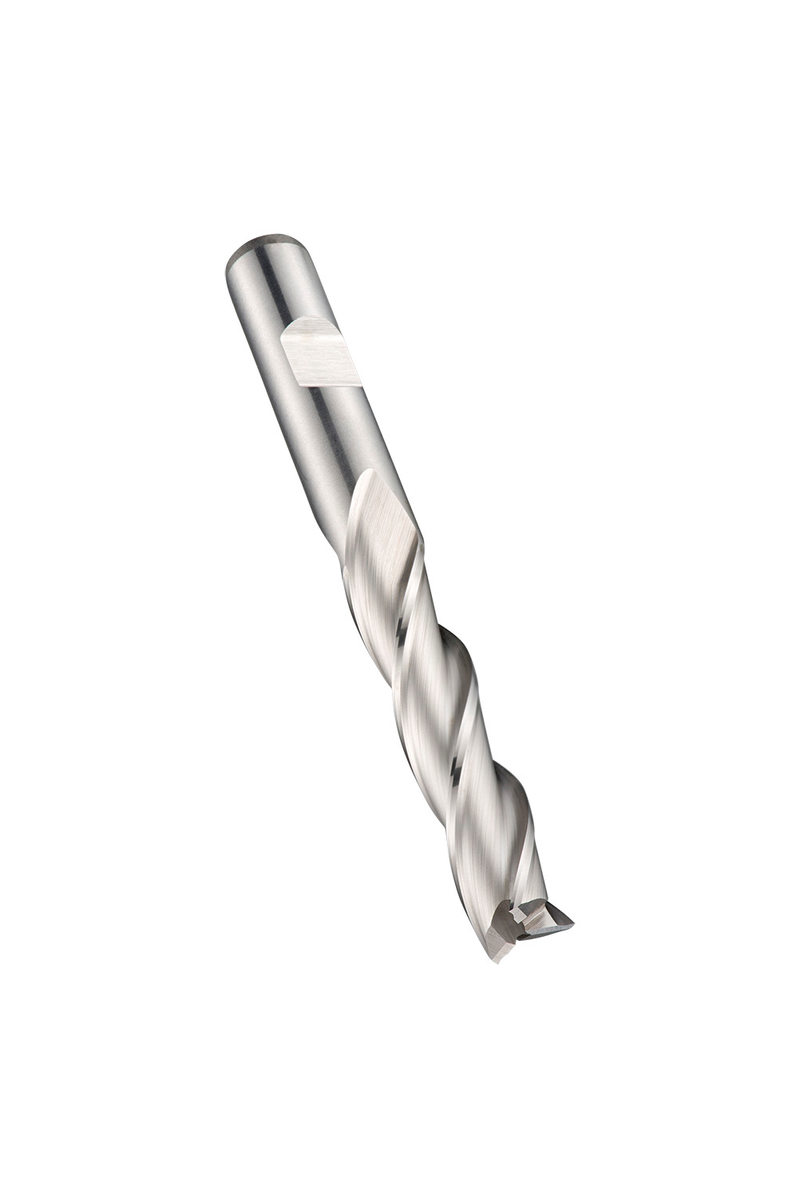

Fraise trois tailles à queue longue, diamètre 4 mm avec longueur de coupe de 19 mm et longueur totale de 63 mm, selon la norme DIN 844 L avec queue Weldon de 6 mm, en HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le surfaçage et le fraisage de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3464.0
GradeLumineux
Product Number5984062
Product FamilyC346
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

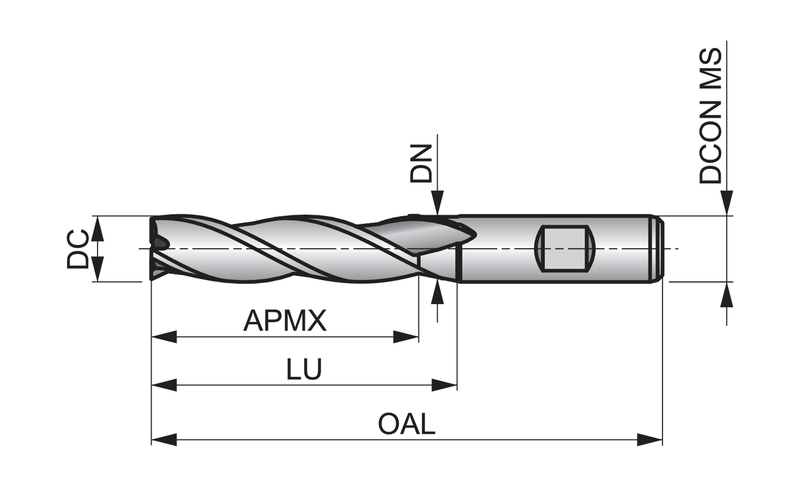

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number122303
EAN7320760122303
File Type Download
C3464.0 — Line Drawing PDF Download
