UGC DOR5984075
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.91 CAD - $42.91 CAD
$42.91 CAD
$42.91 CAD - $42.91 CAD
$42.91 CAD

Vendu en lots de : 1

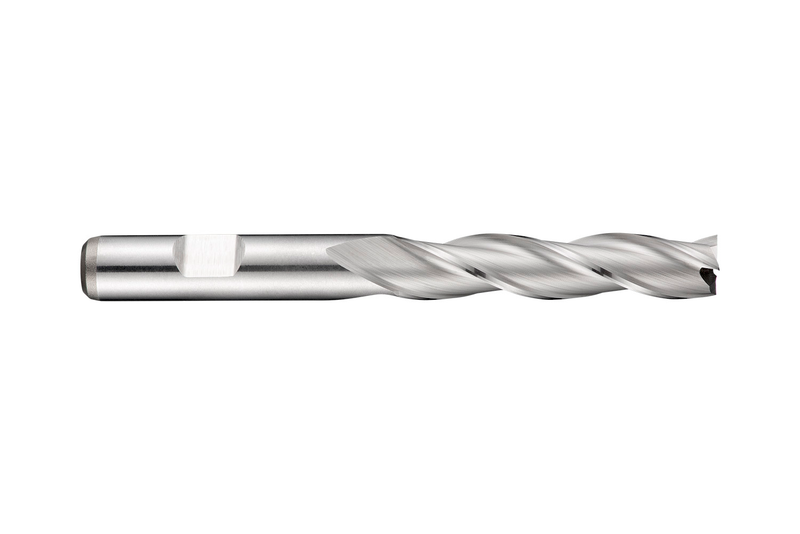

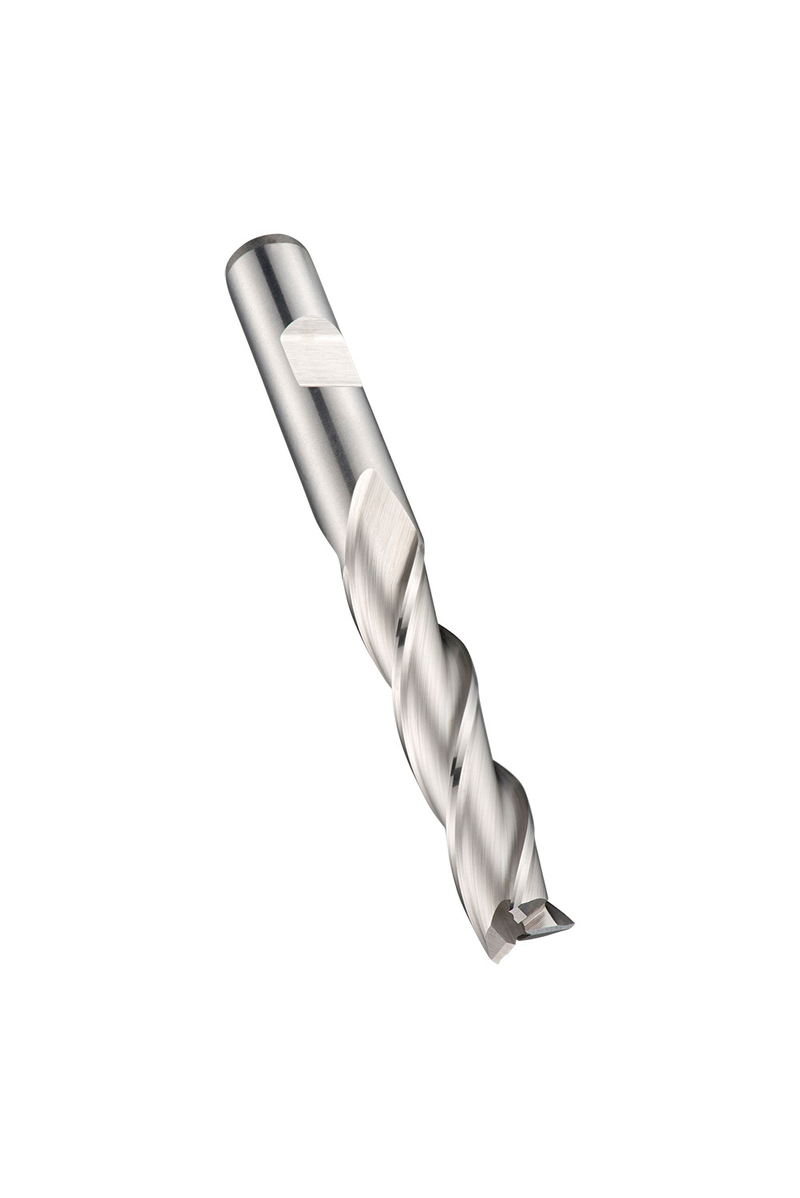

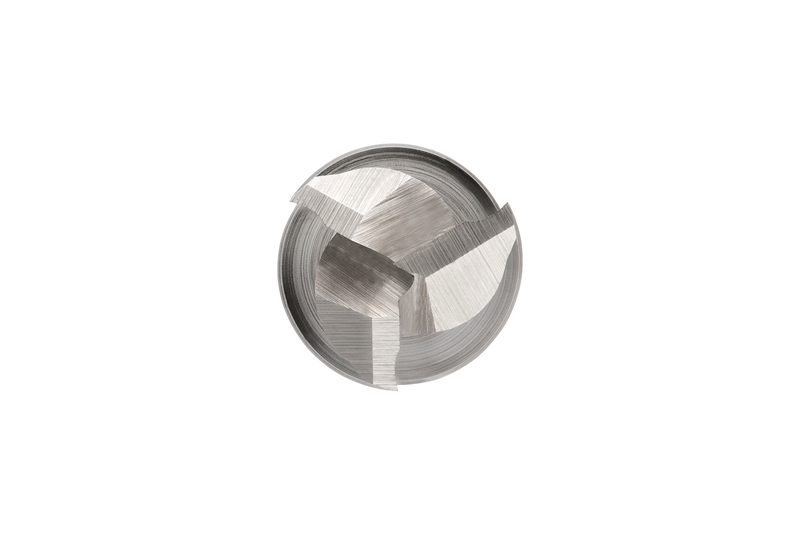

Fraise trois tailles à queue longue, diamètre 6 mm avec une longueur de coupe de 24 mm et une longueur totale de 68 mm, conforme à la norme DIN 844 L avec un entraînement Weldon de 6 mm, en HSS-E au cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage en bout et le fraisage de rainures dans les aciers de décolletage, le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3466.0
GradeLumineux
Product Number5984075
Product FamilyC346
Insert Geometry
Depth of Cut Max — in (APMX)0.9449"
Depth of Cut Max — mm (APMX)24.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.6772"
Overall Length — mm (OAL)68.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number122327
EAN7320760122327
File Type Download

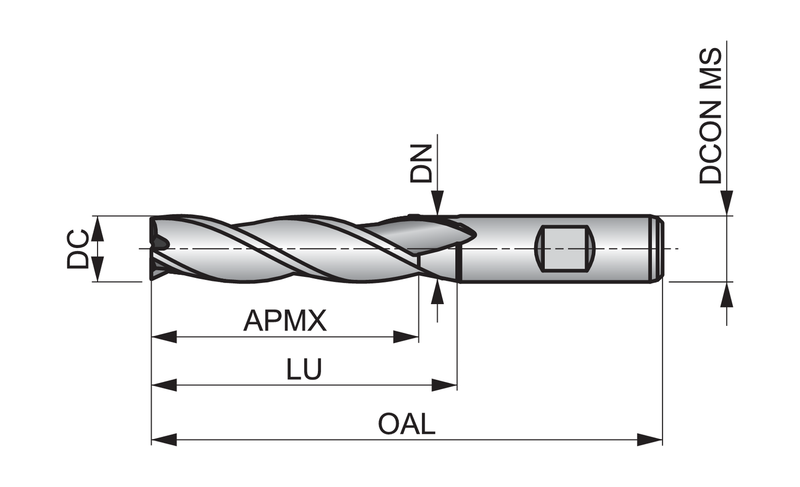

C3466.0 — Line Drawing PDF Download
