UGC DOR5984080
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.26 CAD - $60.26 CAD
$60.26 CAD
$60.26 CAD - $60.26 CAD
$60.26 CAD

Vendu en lots de : 1

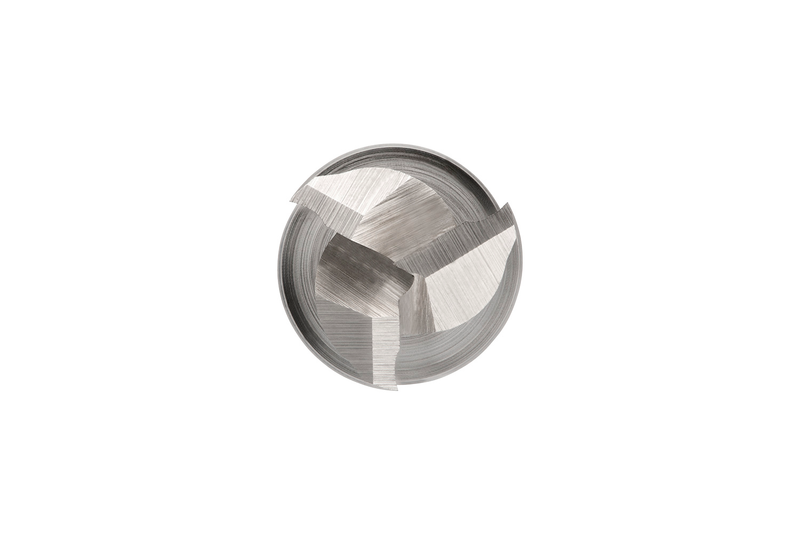

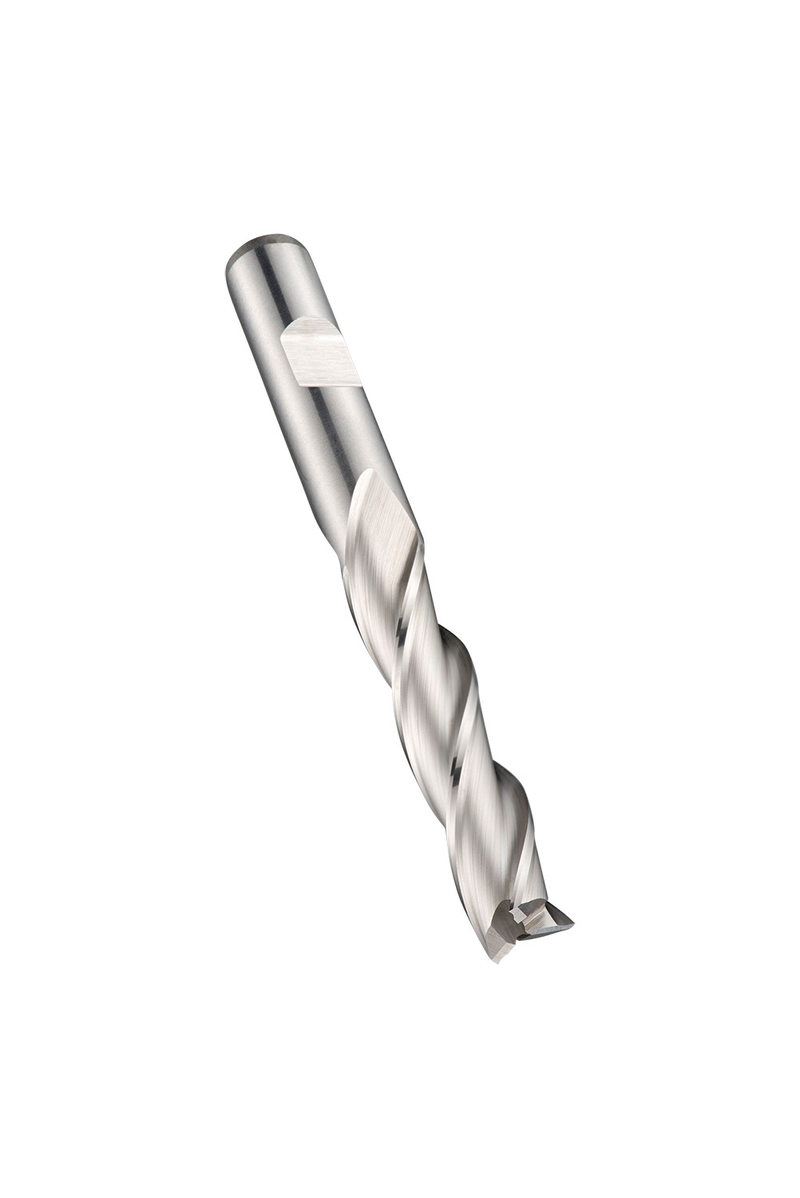

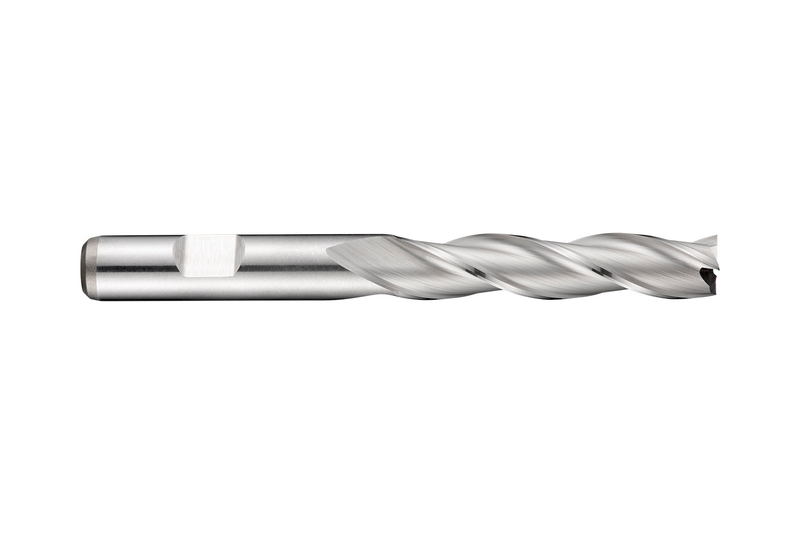

Fraise 3 dents à queue longue, diamètre 7 mm avec 30 mm de longueur de coupe et 80 mm de longueur totale, selon la norme DIN 844 L avec une queue Weldon de 10 mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3467.0
GradeLumineux
Product Number5984080
Product FamilyC346
Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm

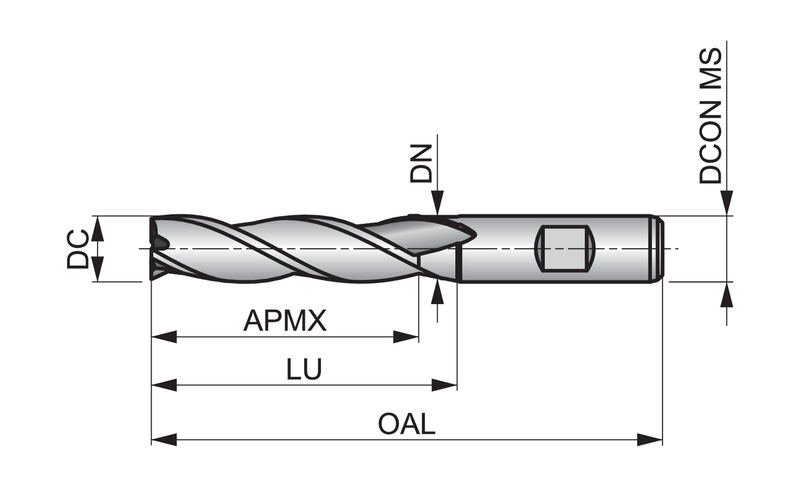

Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number126325
EAN7320760126325
File Type Download
C3467.0 — Line Drawing PDF Download
