UGC DOR5984081
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$181.20 CAD - $181.20 CAD
$181.20 CAD
$181.20 CAD - $181.20 CAD
$181.20 CAD

Vendu en lots de : 1

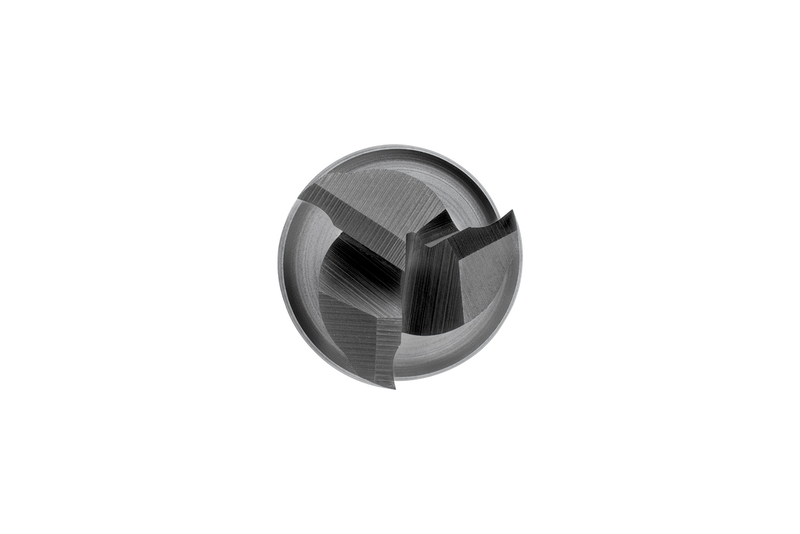

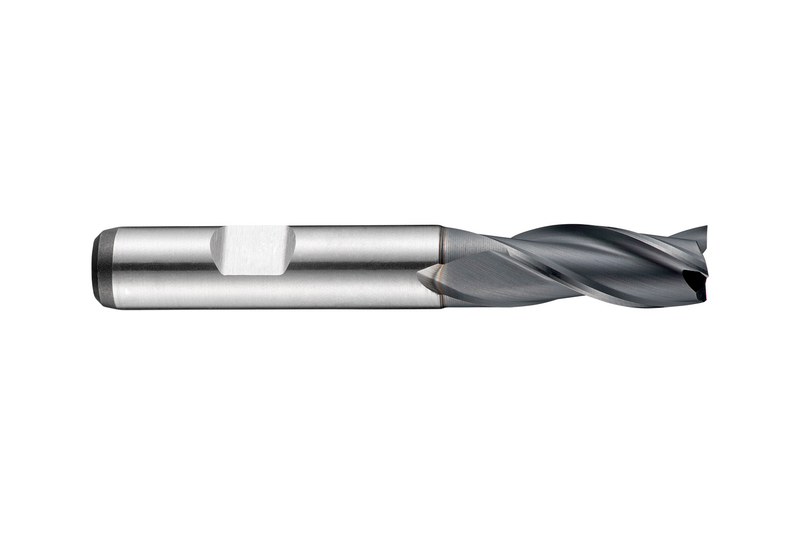

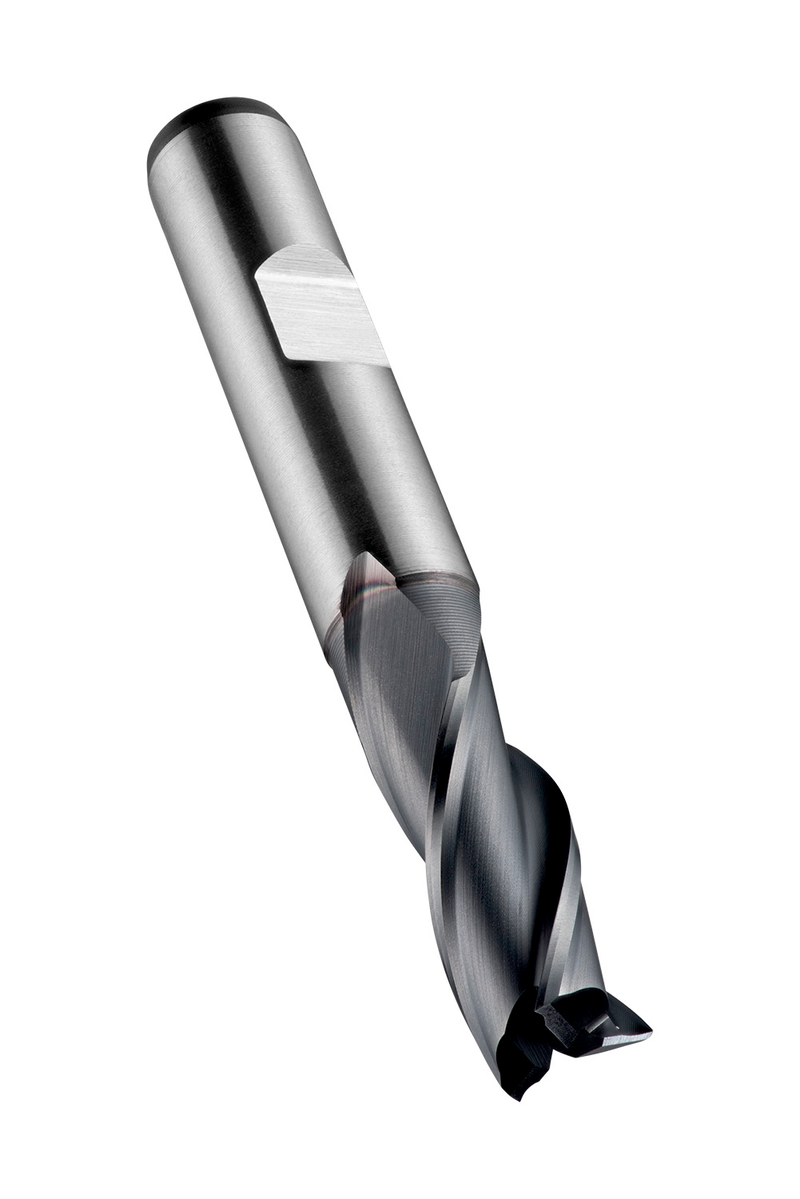

Fraise 3 dents à gorges profondes série courte, diamètre 18mm, longueur de coupe 32mm, longueur totale 92mm et longueur utile 43,5mm avec dégagement de collet, selon la norme DIN 844 K avec une queue Weldon de 16mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 30° et angle de dépouille 12° pour le surfaçage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C35218.0
GradeALCRONA
Product Number5984081
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573006
EAN7320760573006
File Type Download
C35218.0 — Line Drawing PDF Download
