UGC DOR5984085
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.44 CAD - $54.44 CAD
$54.44 CAD
$54.44 CAD - $54.44 CAD
$54.44 CAD

Vendu en lots de : 1

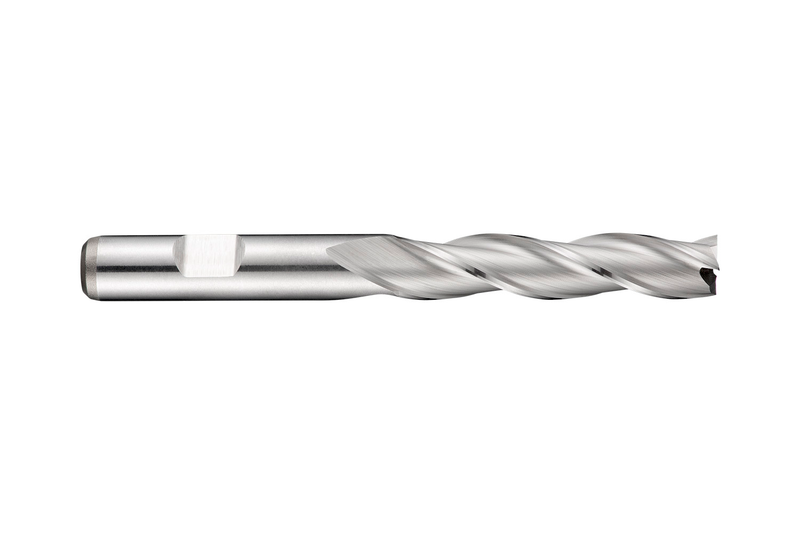

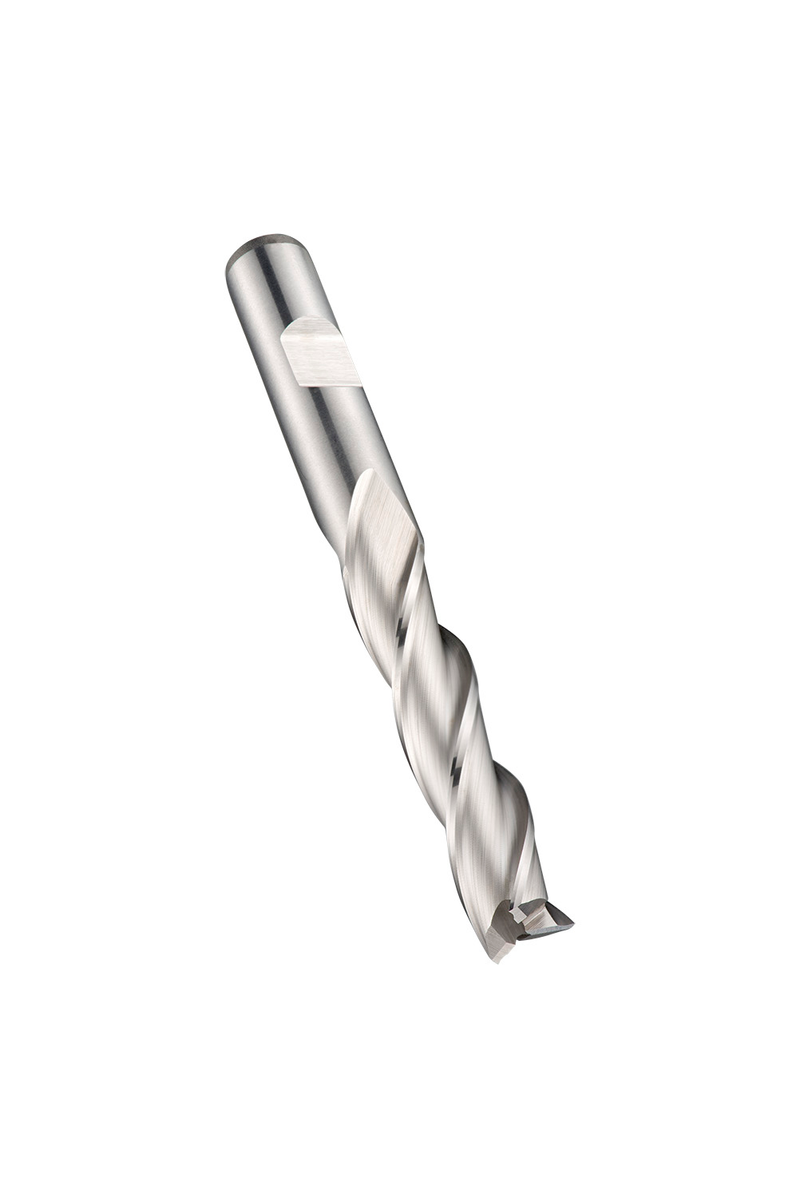

Fraise 3 dents longue diamètre 8 mm, longueur de coupe 38 mm et longueur totale 88 mm, norme DIN 844 L, queue Weldon 10 mm, HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements et de rainures dans les aciers à usinabilité améliorée et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3468.0
GradeLumineux
Product Number5984085
Product FamilyC346

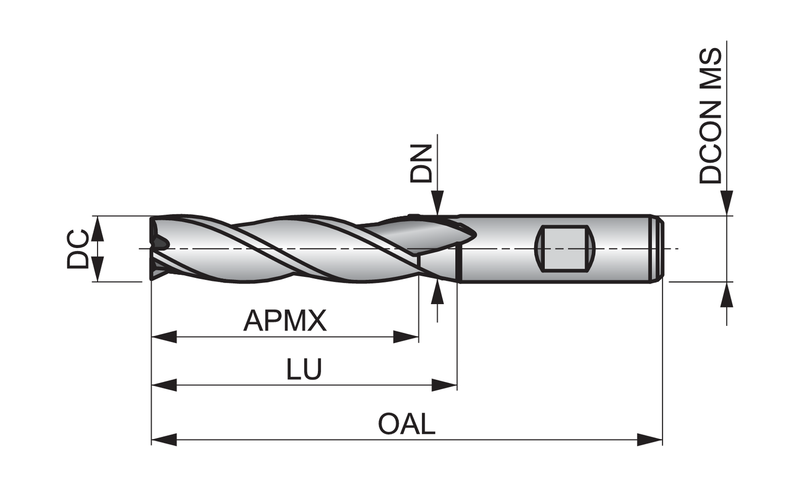

Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

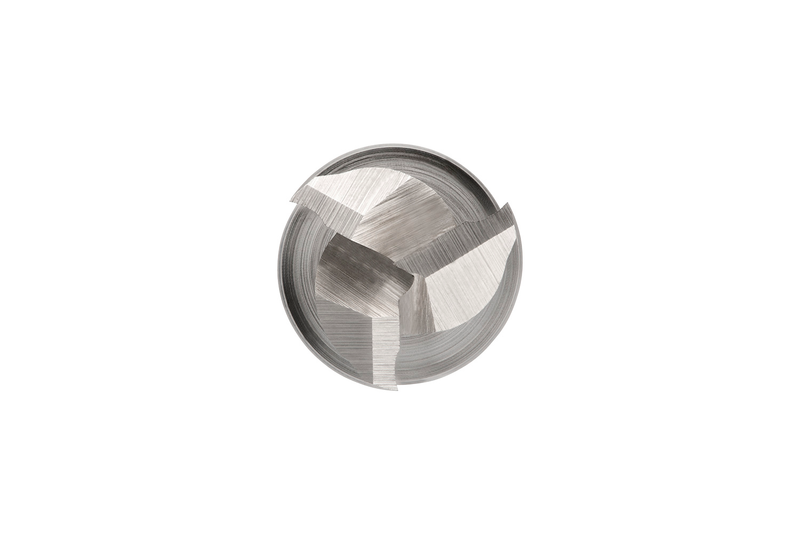

Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number126332
EAN7320760126332
File Type Download
C3468.0 — Line Drawing PDF Download
