UGC DOR5984090
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.07 CAD - $66.07 CAD
$66.07 CAD
$66.07 CAD - $66.07 CAD
$66.07 CAD

Vendu en lots de : 1

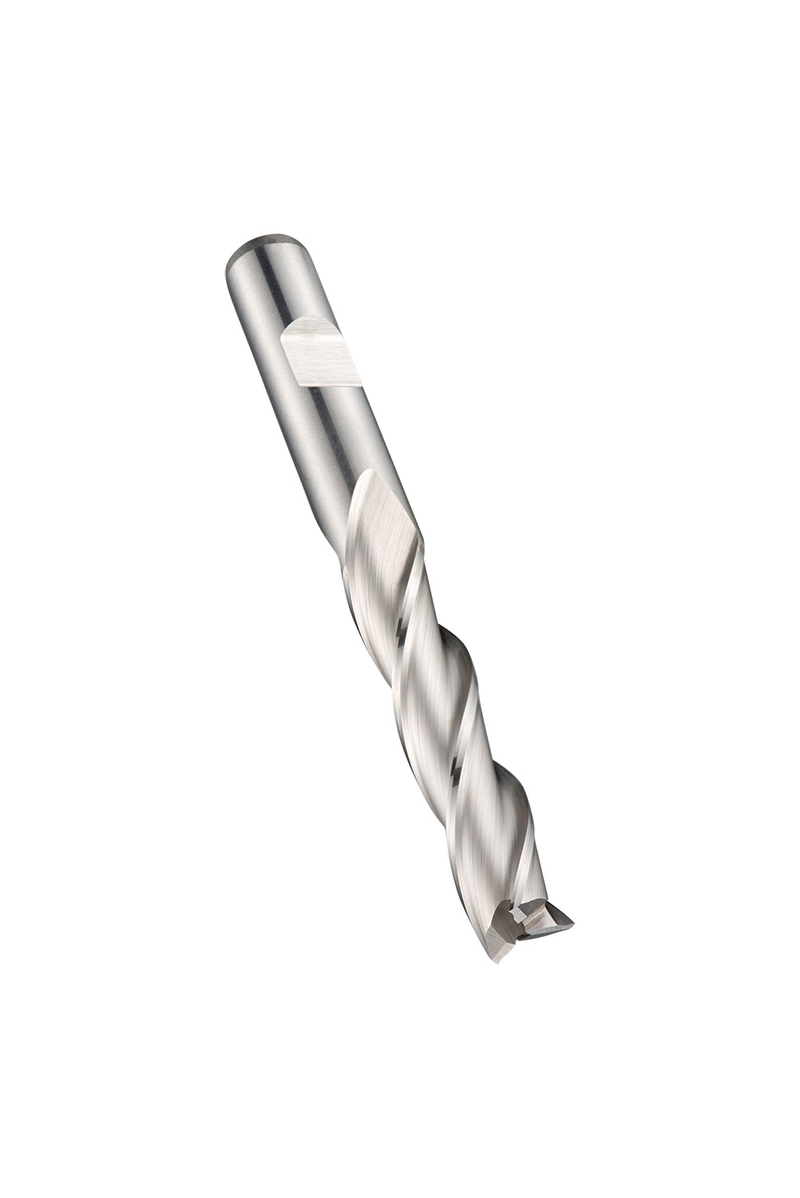

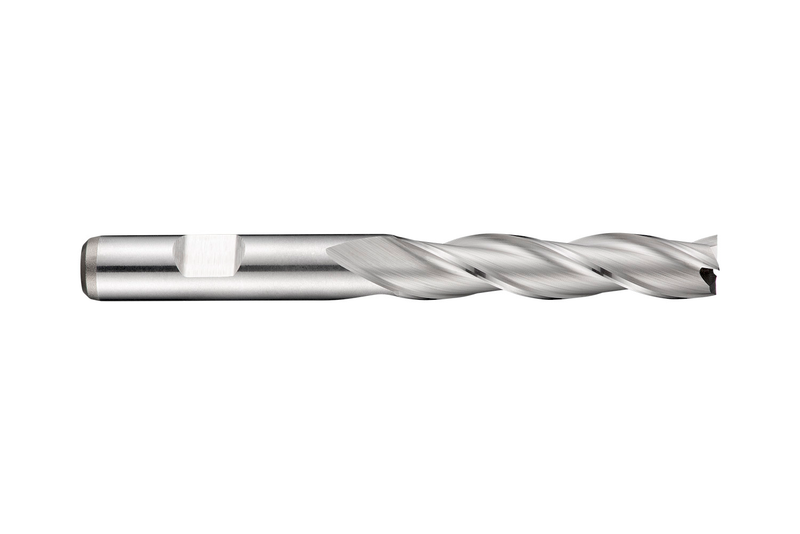

Fraise trois tailles longue diamètre 9 mm avec une longueur de coupe de 38 mm et une longueur totale de 88 mm, norme DIN 844 L, queue Weldon de 10 mm, en HSS-E cobalt avec finition brillante, hélice à 30° et angle de coupe de 12° pour l'usinage d'épaulements et de rainures dans les aciers de décolletage, le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3469.0
GradeLumineux
Product Number5984090
Product FamilyC346
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

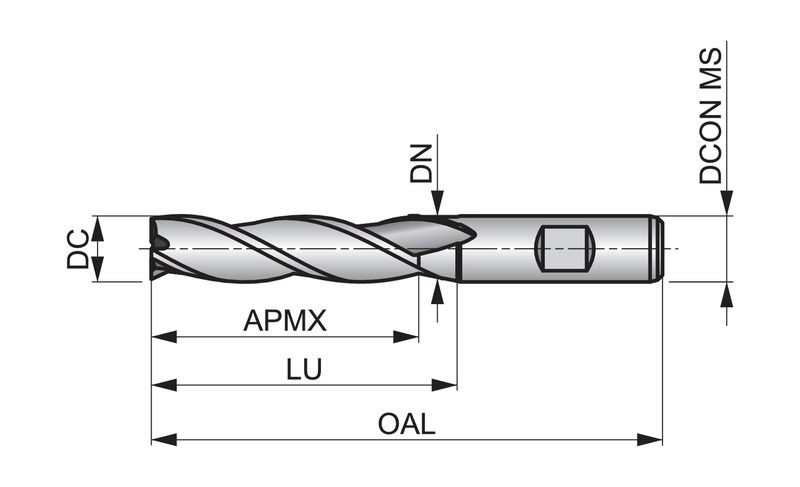

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

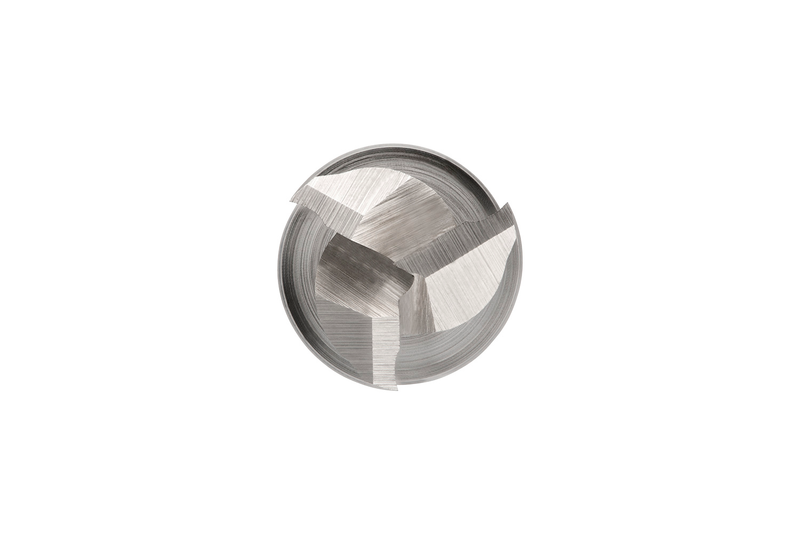

Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number126349
EAN7320760126349
File Type Download
C3469.0 — Line Drawing PDF Download
