UGC DOR5984098
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.20 CAD - $59.20 CAD
$59.20 CAD
$59.20 CAD - $59.20 CAD
$59.20 CAD

Vendu en lots de : 1

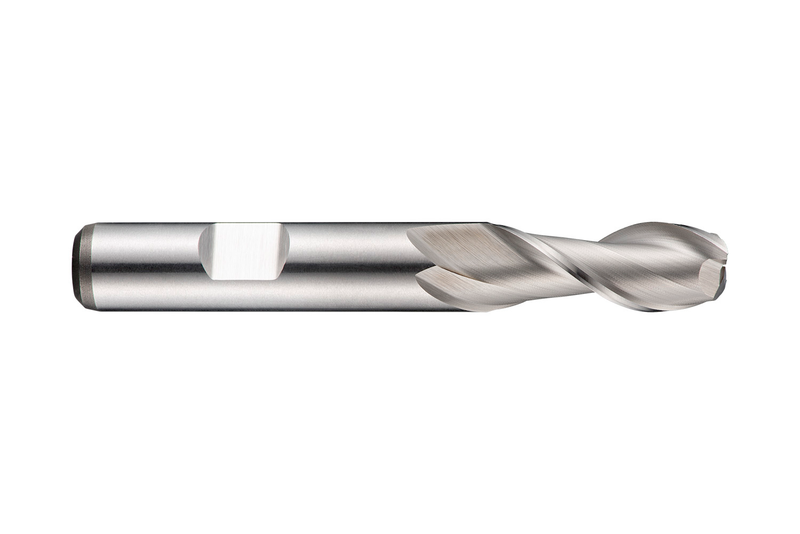

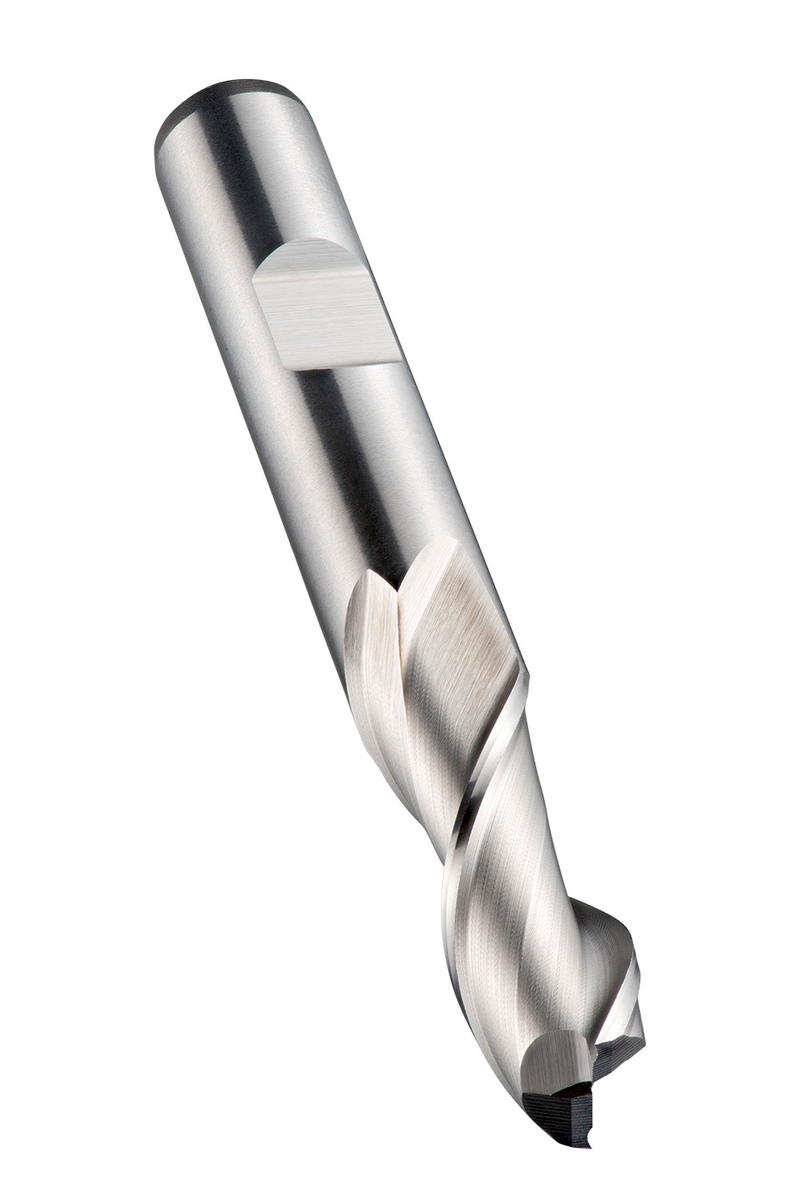

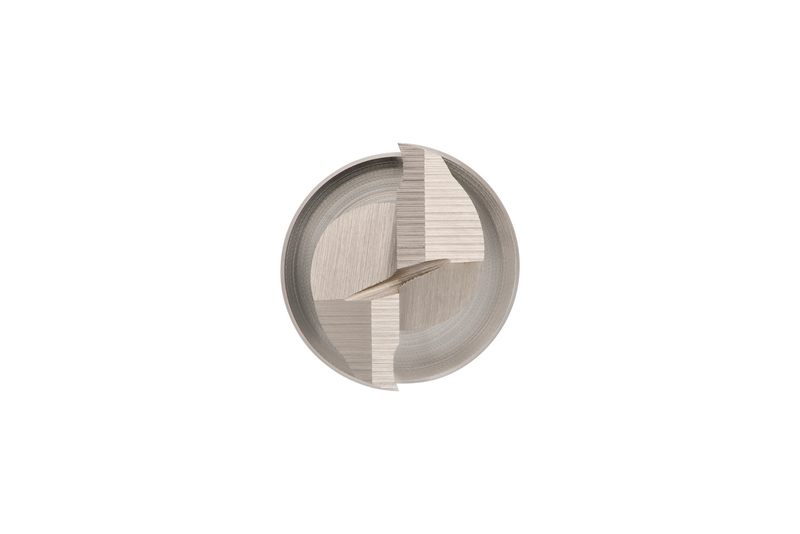

Fraise 2 dents pour rainures, série courte, diamètre 12mm, longueur de coupe 26mm, longueur totale 83mm, selon la norme DIN 844 K, avec queue Weldon 12mm, en HSS-E cobalt, finition brillante, hélice 40° et angle de dépouille 20° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C15912.0
GradeLumineux
Product Number5984098
Product FamilyC159
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number59500
EAN7320760059500
File Type Download

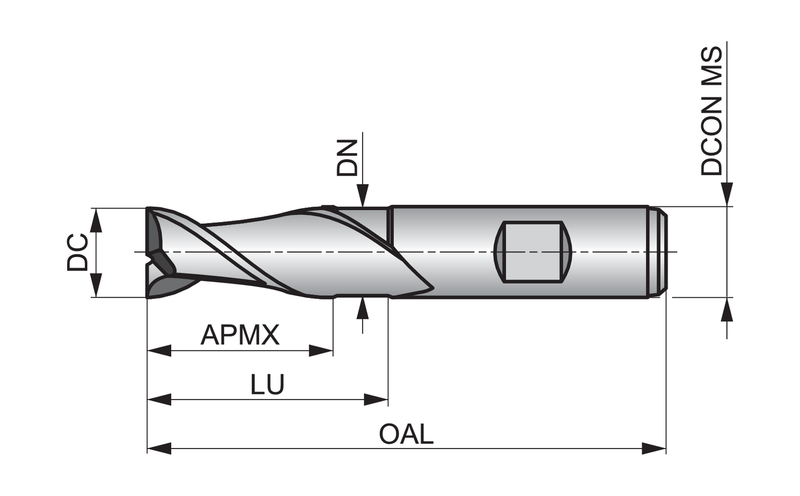

C15912.0 — Line Drawing PDF Download
