UGC DOR5984100
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.60 CAD - $90.60 CAD
$90.60 CAD
$90.60 CAD - $90.60 CAD
$90.60 CAD

Vendu en lots de : 1

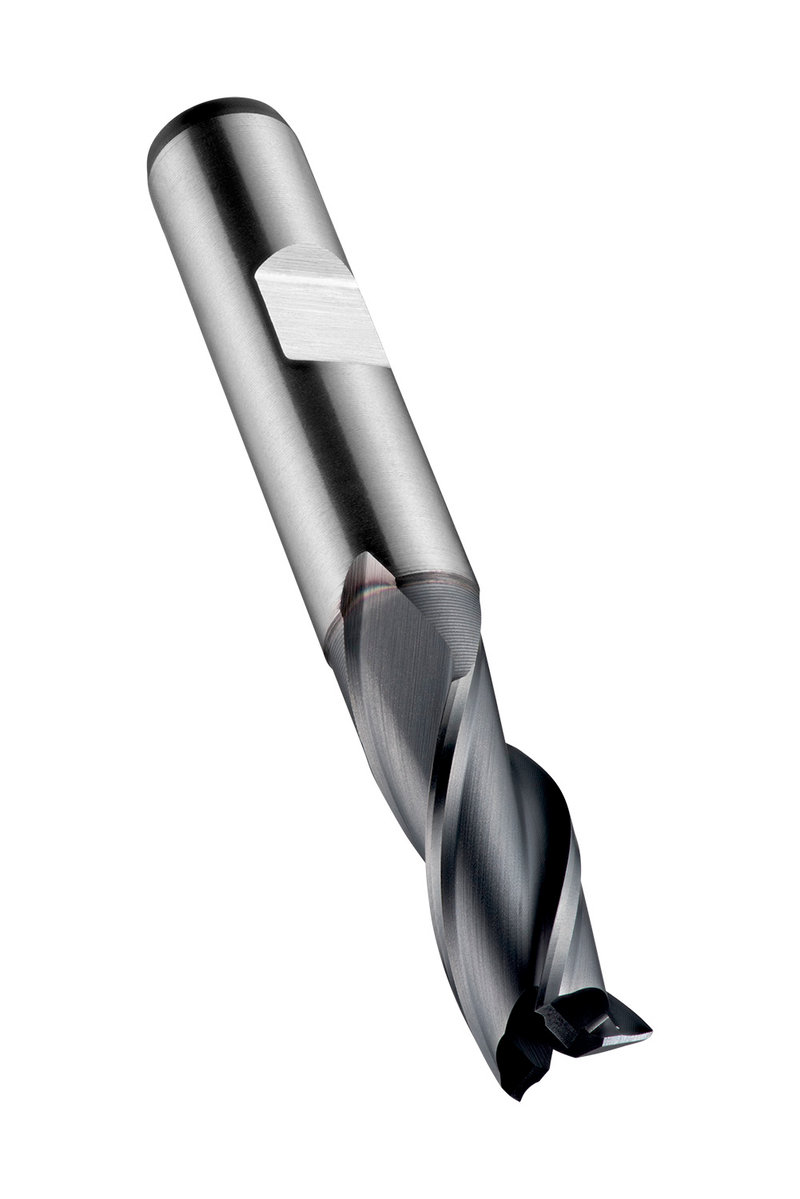

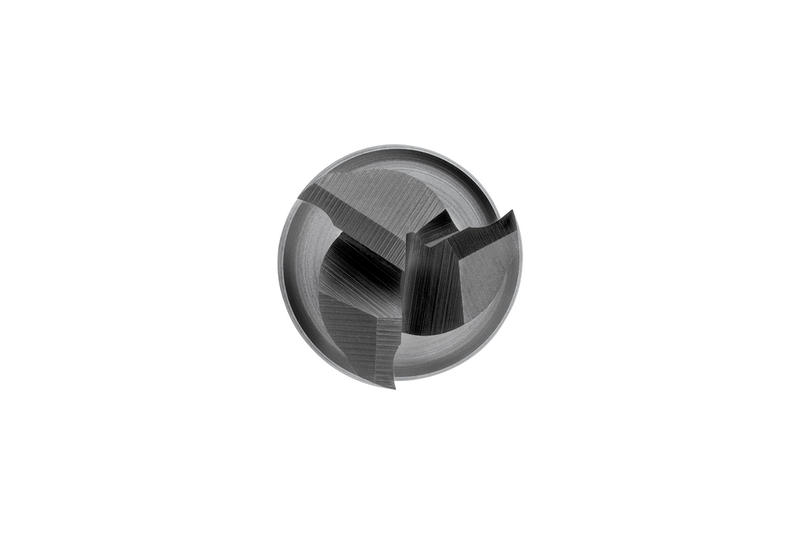

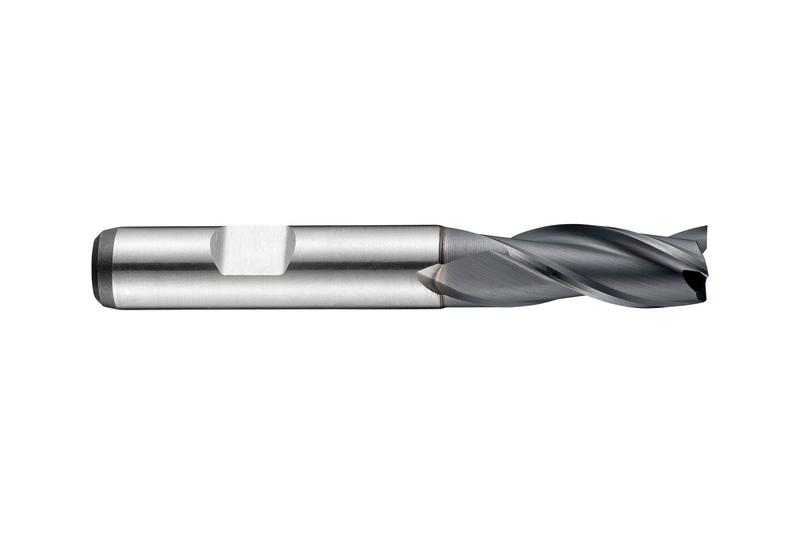

Fraise 3 dents à queue cylindrique, série courte, diamètre 10 mm, longueur de coupe 22 mm, longueur totale 72 mm et portée 31,5 mm avec dégagement de col, selon la norme DIN 844 K avec une queue Weldon 10 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice à 30° et angle de dépouille à 12° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI)C35210,0
Product Name (ISO)C35210.0
GradeALCRONA
Product Number5984100
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Usable Length — mm (LU)31.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572962
EAN7320760572962
File Type Download
C35210.0 — Line Drawing PDF Download
