UGC DOR5984115
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.27 CAD - $88.27 CAD
$88.27 CAD
$88.27 CAD - $88.27 CAD
$88.27 CAD

Vendu en lots de : 1

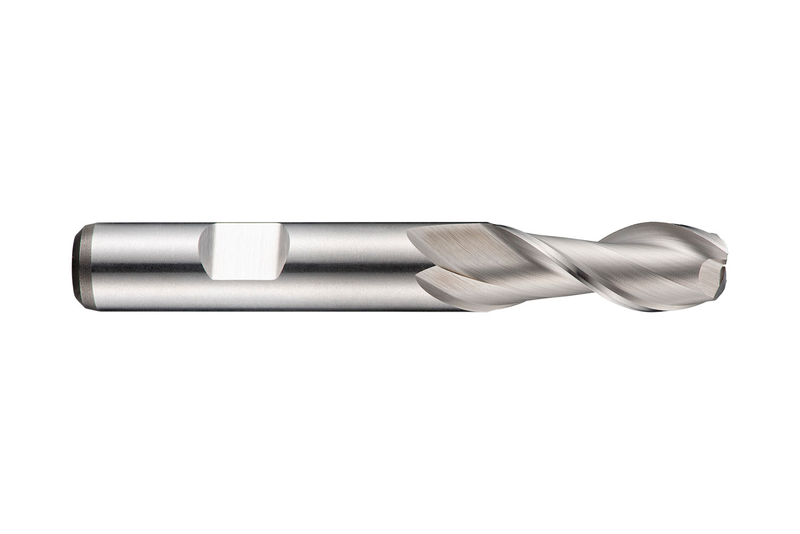

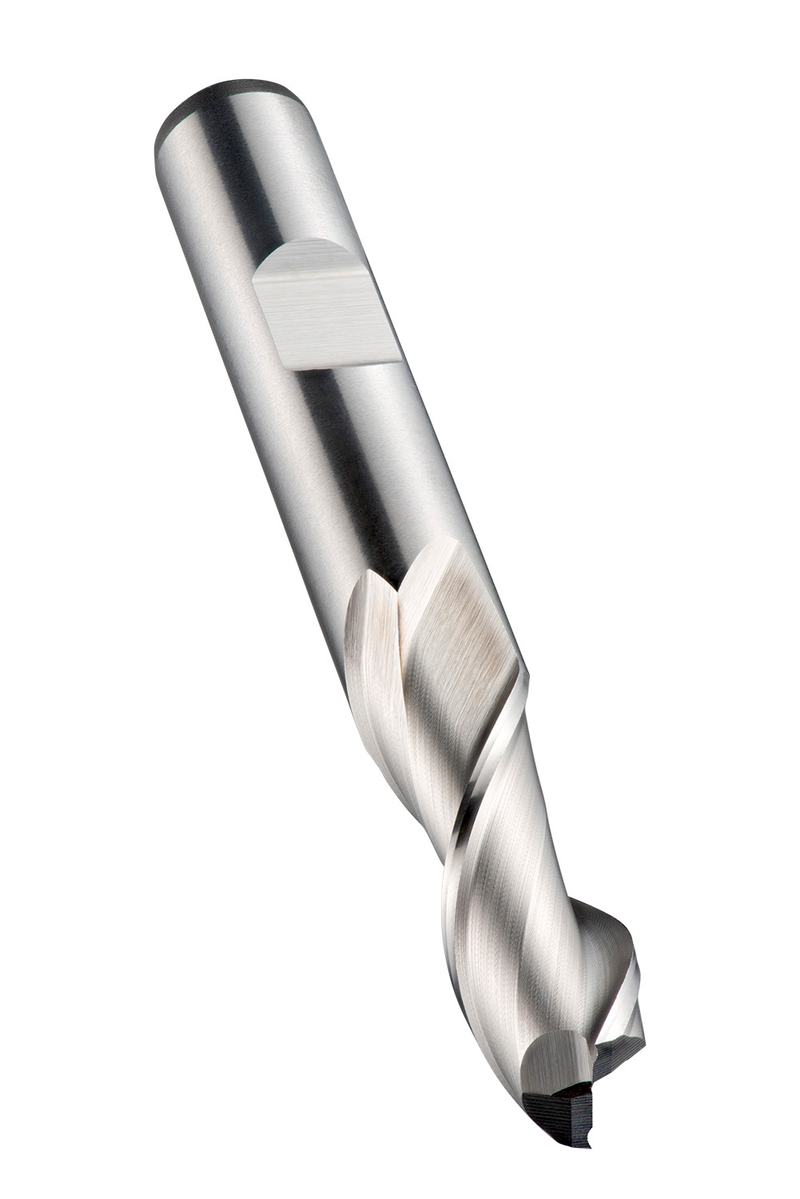

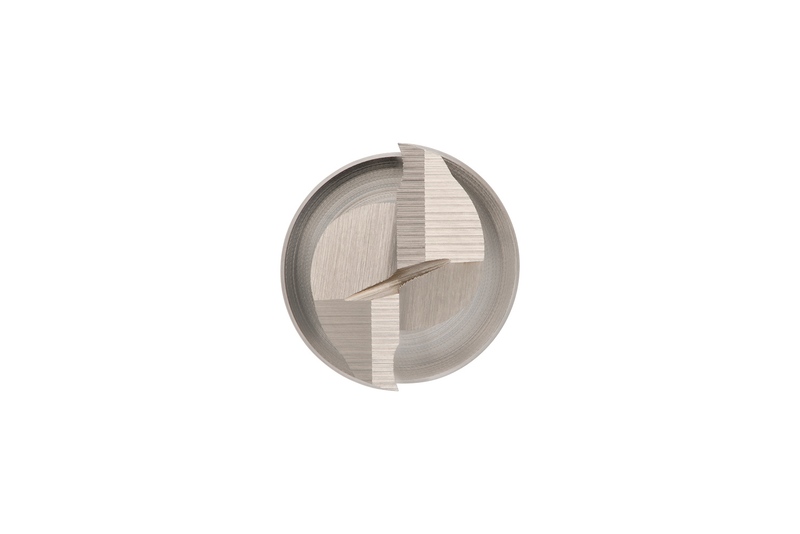

Fraise-scie courte à 2 dents, diamètre 16mm avec une longueur de coupe de 32mm, une longueur totale de 92mm et une portée de 43.5mm avec dégagement de col, selon la norme DIN 844 K avec une queue Weldon de 16mm, en HSS-E à base de cobalt avec finition brillante, hélice de 40° et angle de coupe de 20° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C15916.0
GradeLumineux
Product Number5984115
Product FamilyC159

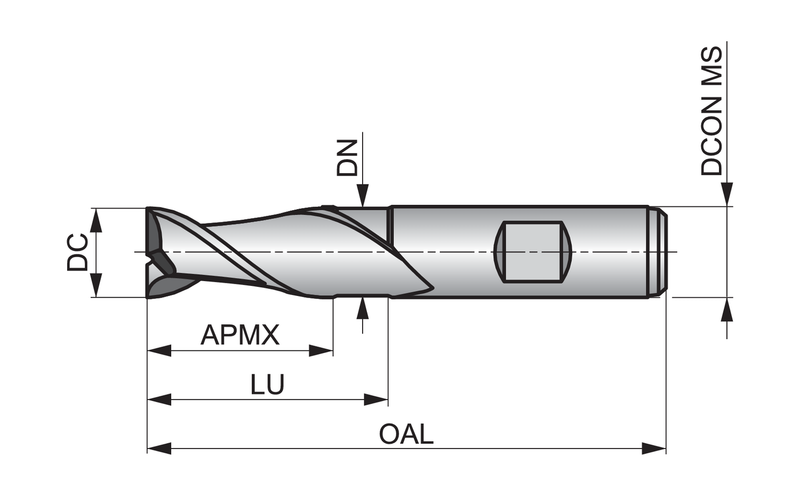

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number59548
EAN7320760059548
File Type Download
C15916.0 — Line Drawing PDF Download
