UGC DOR5984127
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.40 CAD - $212.40 CAD
$212.40 CAD
$212.40 CAD - $212.40 CAD
$212.40 CAD

Vendu en lots de : 1

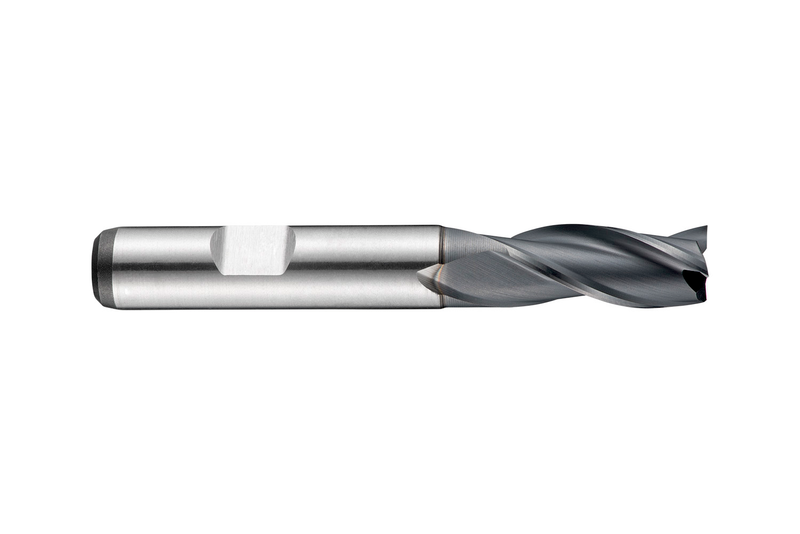

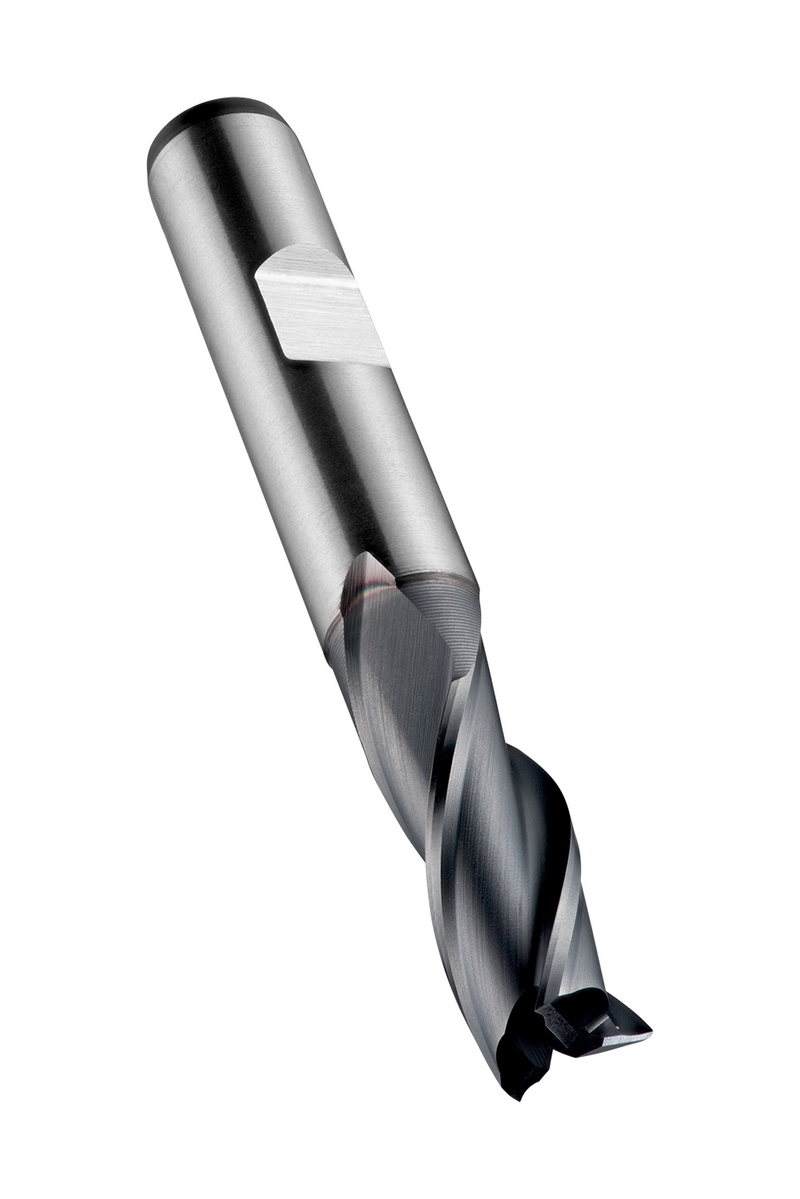

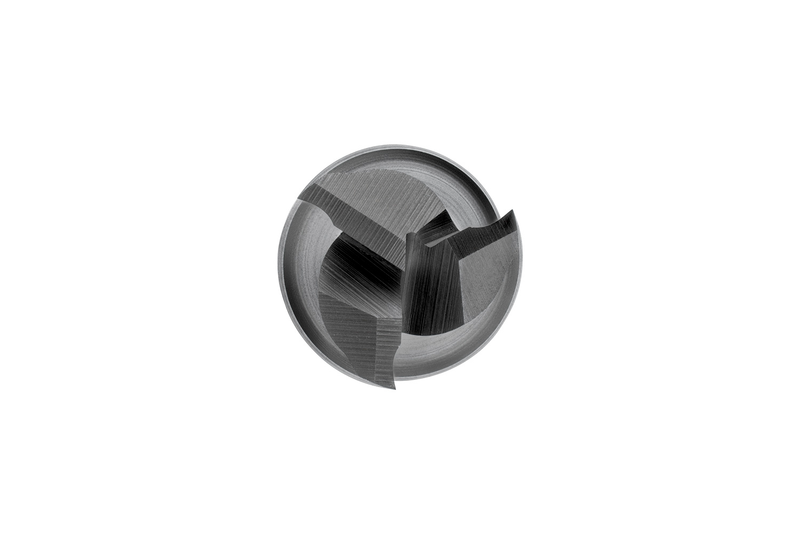

Fraise 3 dents à queue cylindrique, série courte, diamètre 20mm, longueur de coupe 38mm, longueur totale 104mm et dégagement de 53,5mm, conforme à la norme DIN 844 K avec un tenon Weldon de 20mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainure et l'interpolation hélicoïdale dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C35220.0
GradeALCRONA
Product Number5984127
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573013
EAN7320760573013
File Type Download
C35220.0 — Line Drawing PDF Download
