UGC DOR5984128
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.34 CAD - $117.34 CAD
$117.34 CAD
$117.34 CAD - $117.34 CAD
$117.34 CAD

Vendu en lots de : 1

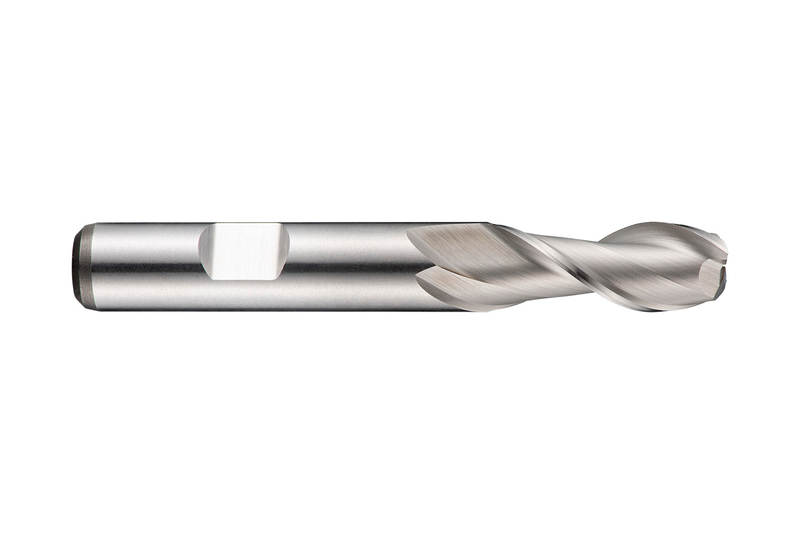

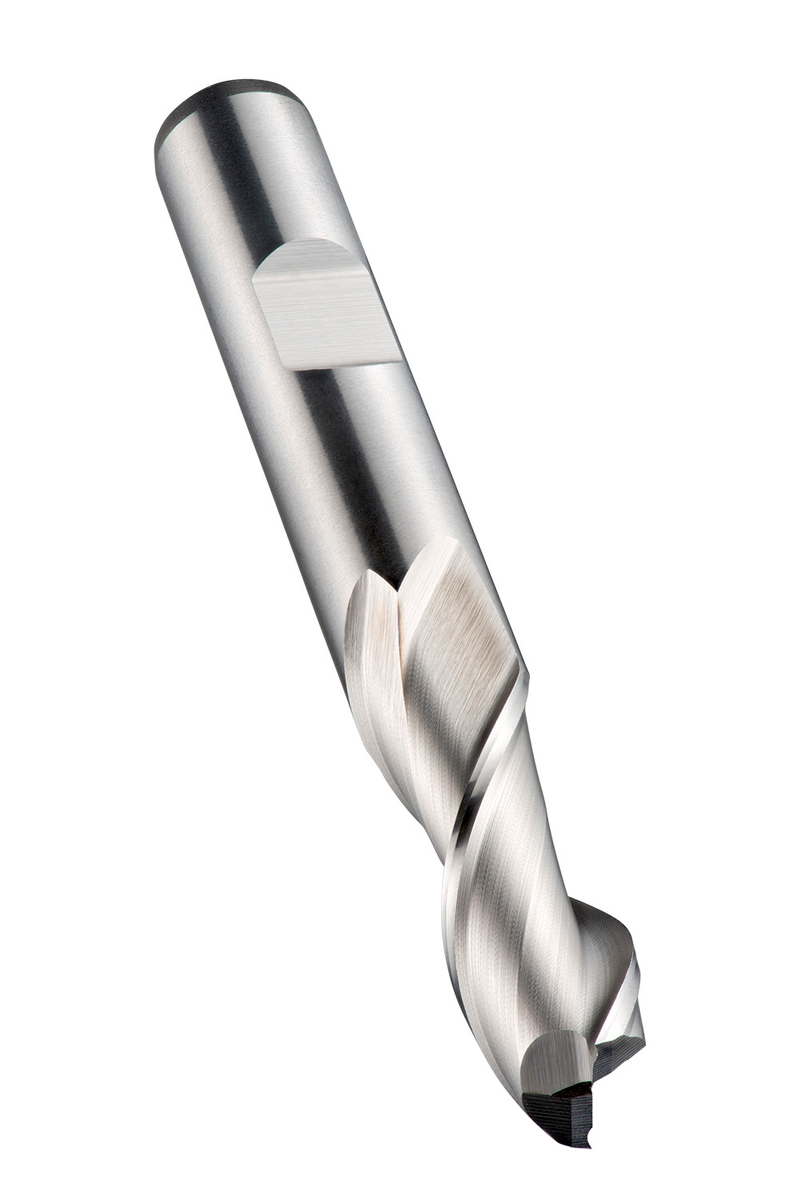

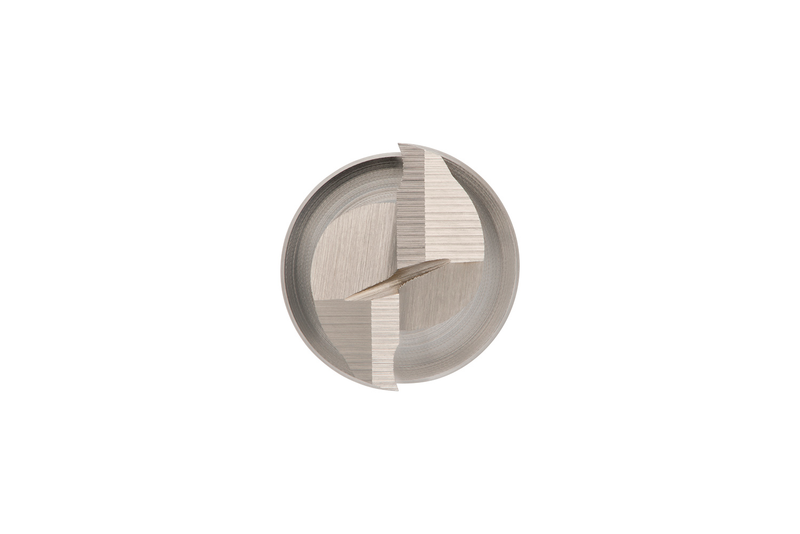

Fraise 2 tailles à queue cylindrique, série courte, diamètre 20mm, longueur de coupe 38mm, longueur totale 104mm et dégagement 53.5mm avec collet, selon la norme DIN 844 K avec une queue Weldon de 20mm, en HSS-E à base de cobalt avec finition brillante, hélice 40° et angle de coupe 20° pour le fraisage d'épaulements, le fraisage de rainures et l'usinage en plongée dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C15920.0
GradeLumineux
Product Number5984128
Product FamilyC159
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

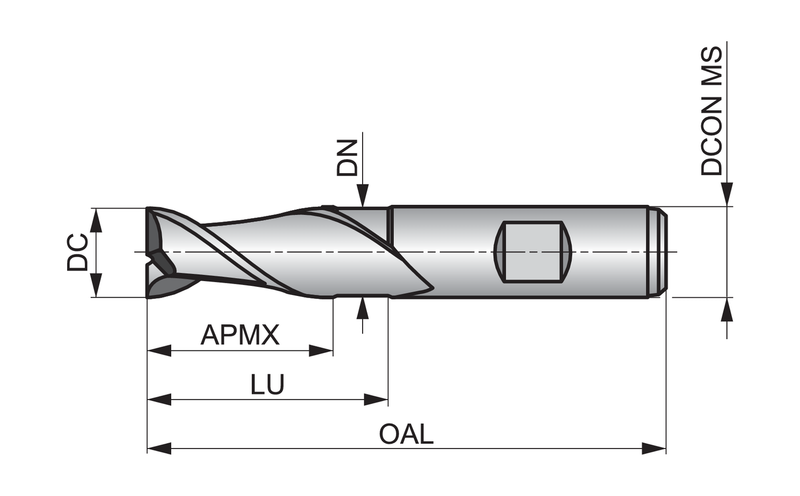

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number59579
EAN7320760059579
File Type Download
C15920.0 — Line Drawing PDF Download
