UGC DOR5984130
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.10 CAD - $36.10 CAD
$36.10 CAD
$36.10 CAD - $36.10 CAD
$36.10 CAD

Vendu en lots de : 1

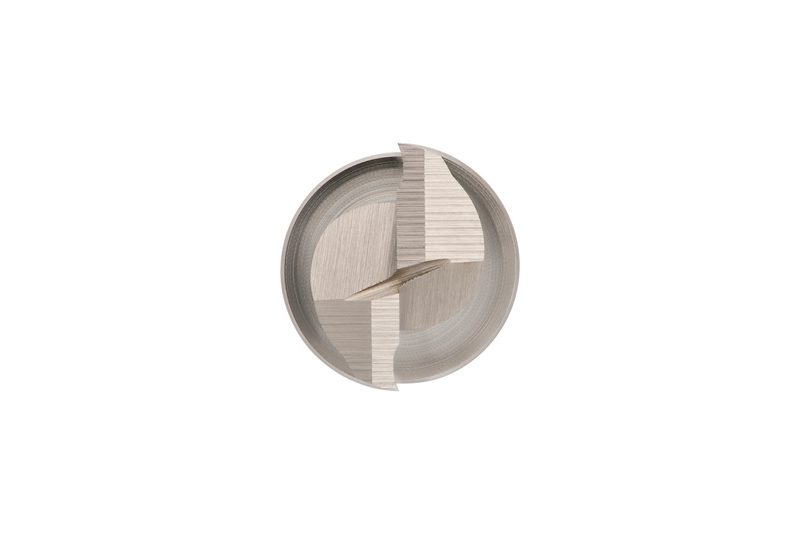

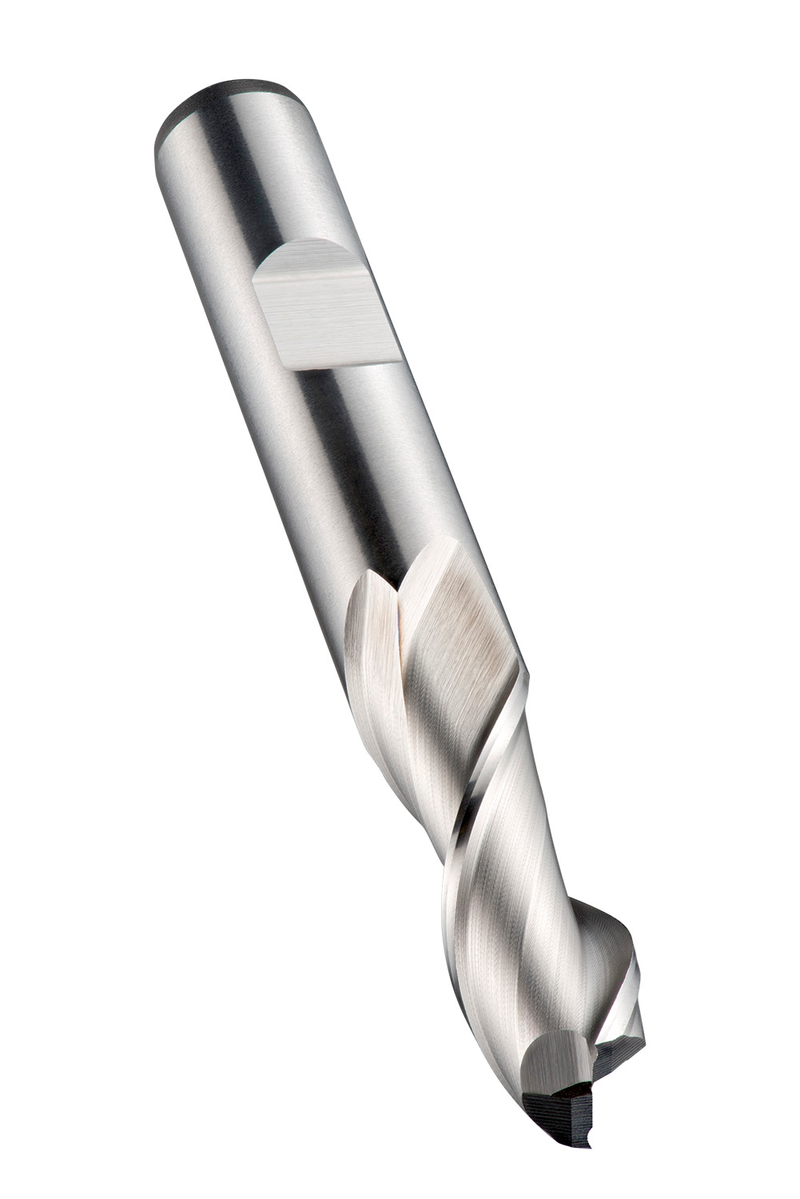

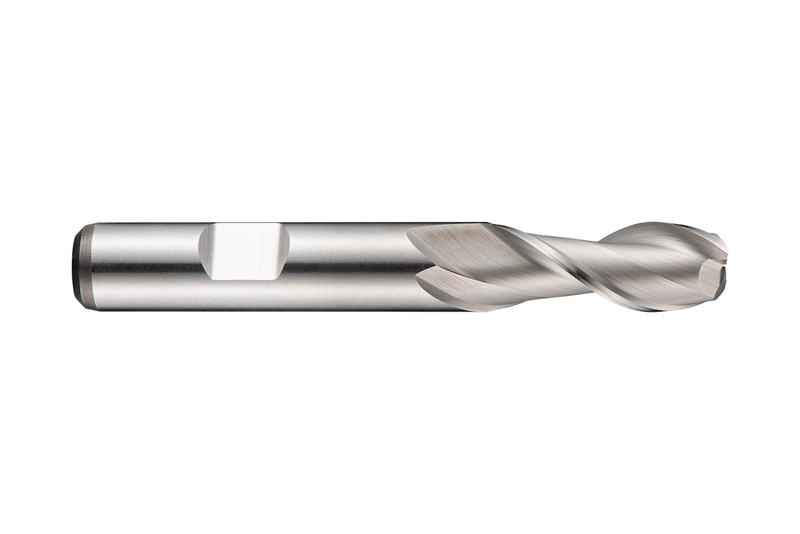

Fraise 2 tailles queue courte 2 dents, diamètre 3mm avec une longueur de coupe de 8mm et une longueur totale de 52mm, selon la norme DIN 844 K avec une queue Weldon de 6mm, en HSS-E cobalt avec finition brillante, hélice de 40° et angle de dépouille de 20° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1593.0
GradeLumineux
Product Number5984130
Product FamilyC159

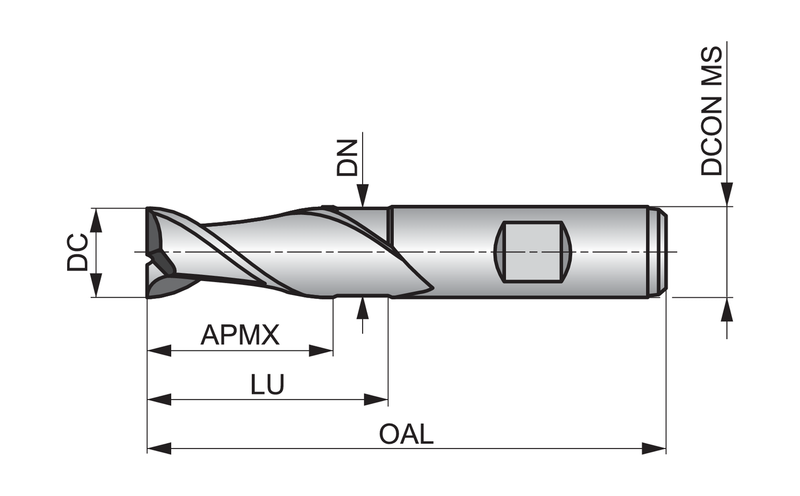

Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number59586
EAN7320760059586
File Type Download
C1593.0 — Line Drawing PDF Download
