C3523.0
C3523.0
C3523.0
C3523.0

C3523.0

UGC DOR5984134
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.20 CAD - $70.20 CAD
$70.20 CAD
$70.20 CAD - $70.20 CAD
$70.20 CAD

Vendu en lots de : 1

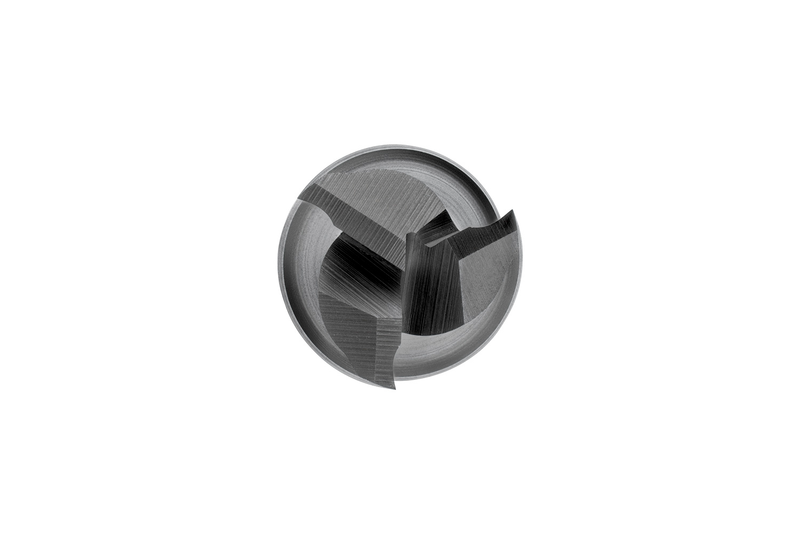

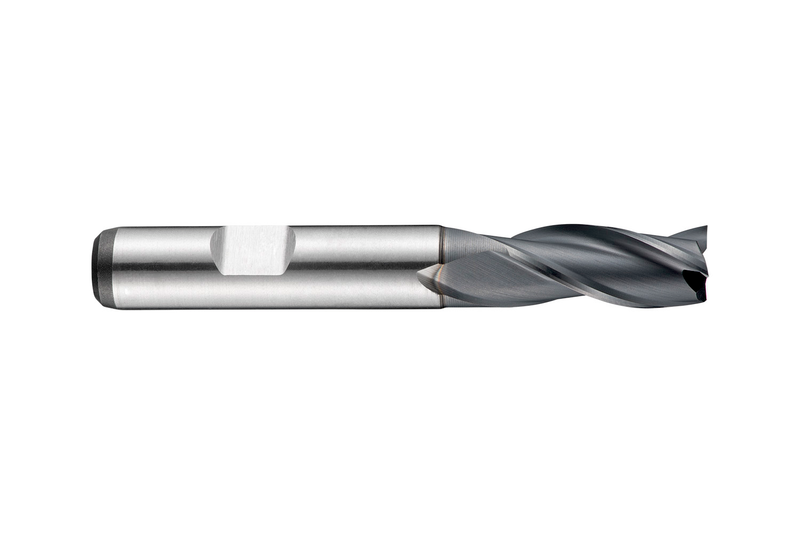

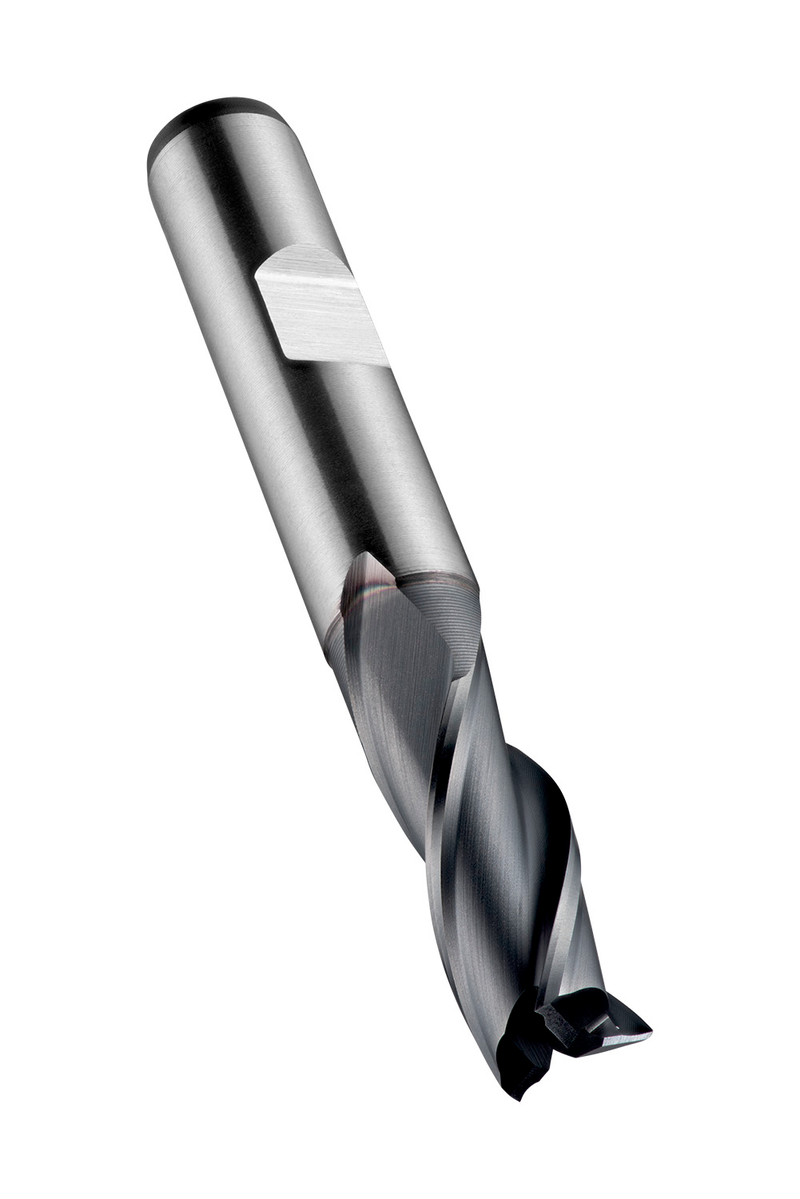

Fraise 3 dents en bout à queue cylindrique, série courte, diamètre 3 mm, longueur de coupe 8 mm, longueur totale 52 mm, selon la norme DIN 844 K, queue Weldon 6 mm, en HSS-E (acier rapide fritté) avec revêtement Alcrona, hélice à 30° et angle de dépouille à 12°, pour fraisage en bout, fraisage de rainures et fraisage en plongée inclinée dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3523.0
GradeALCRONA
Product Number5984134
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573020
EAN7320760573020
File Type Download
C3523.0 — Line Drawing PDF Download
