UGC DOR5984136
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.16 CAD - $36.16 CAD
$36.16 CAD
$36.16 CAD - $36.16 CAD
$36.16 CAD

Vendu en lots de : 1

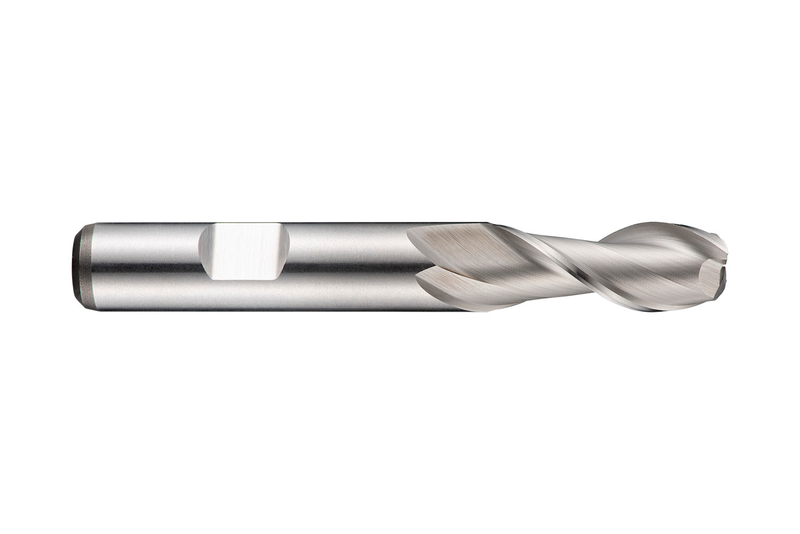

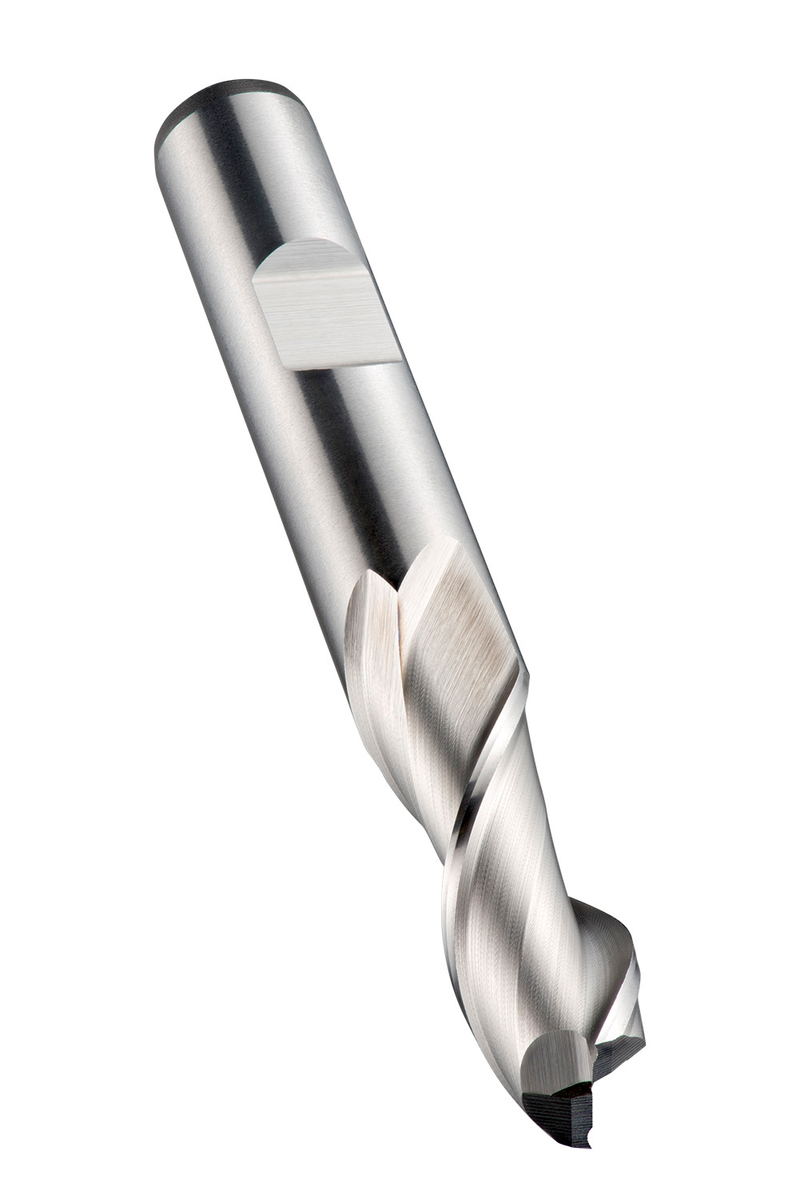

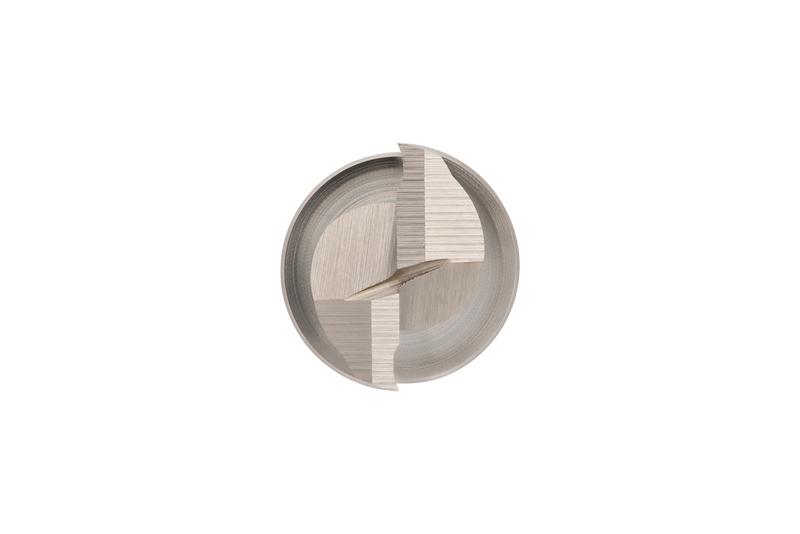

Fraise 2 tailles à queue cylindrique courte 2 dents, diamètre 4mm, longueur de coupe 11mm et longueur totale 55mm, selon la norme DIN 844 K, queue Weldon 6mm, en HSS-E cobalt avec finition brillante, hélice 40° et angle de dépouille 20° pour le fraisage d'épaulements, de rainures et en ramping dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1594.0
GradeLumineux
Product Number5984136
Product FamilyC159
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

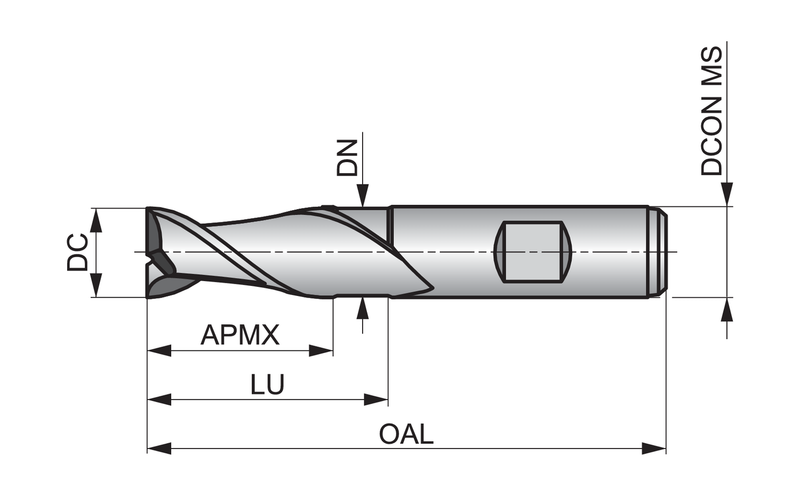

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number59593
EAN7320760059593
File Type Download
C1594.0 — Line Drawing PDF Download
