UGC DOR5984137
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.20 CAD - $70.20 CAD
$70.20 CAD
$70.20 CAD - $70.20 CAD
$70.20 CAD

Vendu en lots de : 1

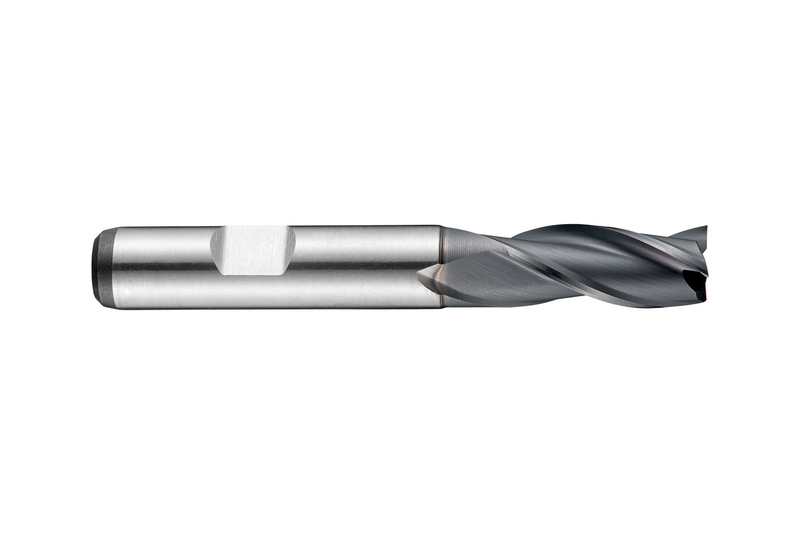

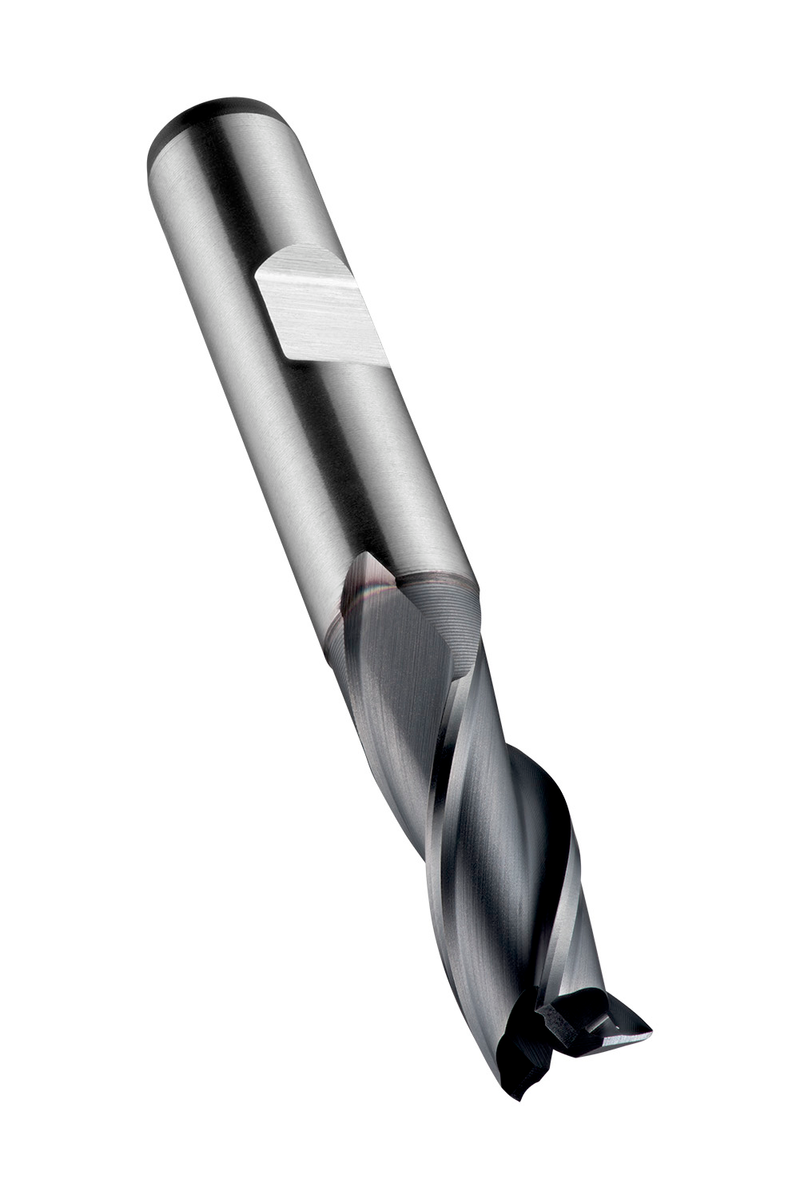

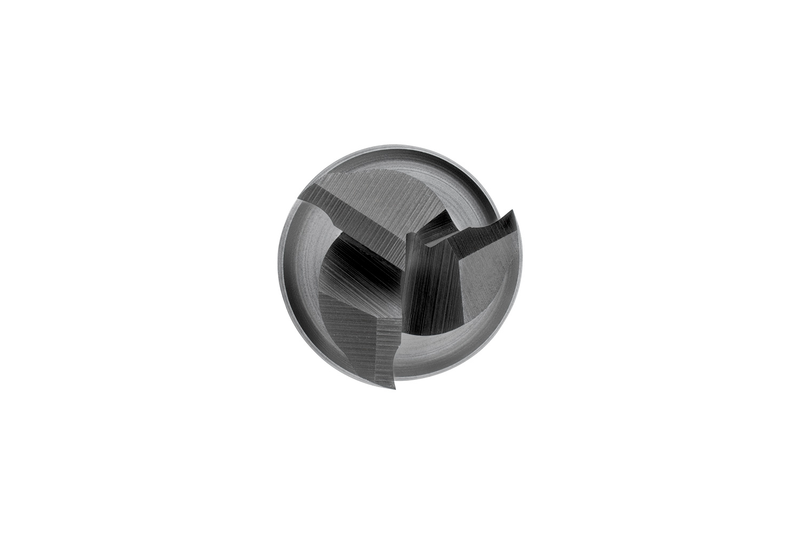

Fraise 3 dents à queue courte, diamètre 4mm avec 11mm de longueur de coupe et 55mm de longueur totale, selon la norme DIN 844 K avec une queue Weldon 6mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice à 30° et angle de dépouille de 12° pour le surfaçage, le fraisage de rainures et le ramping dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3524.0
GradeALCRONA
Product Number5984137
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573037
EAN7320760573037
File Type Download
C3524.0 — Line Drawing PDF Download
