UGC DOR5984138
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.69 CAD - $35.69 CAD
$35.69 CAD
$35.69 CAD - $35.69 CAD
$35.69 CAD

Vendu en lots de : 1

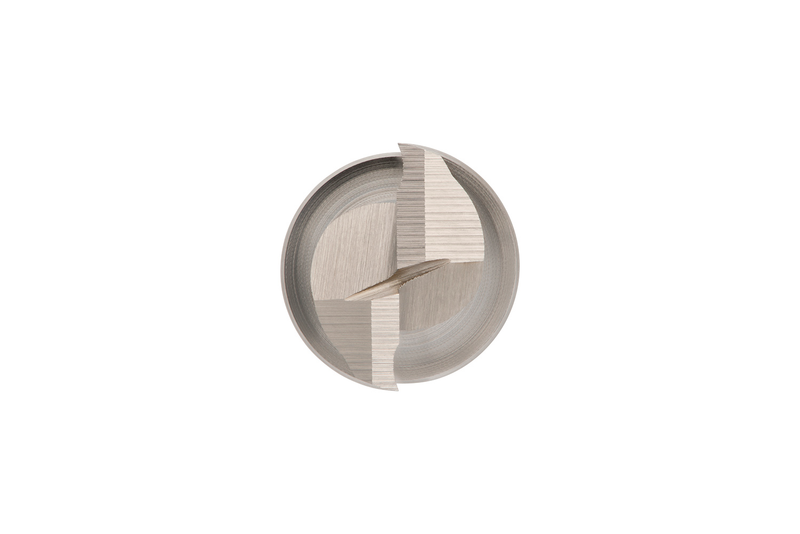

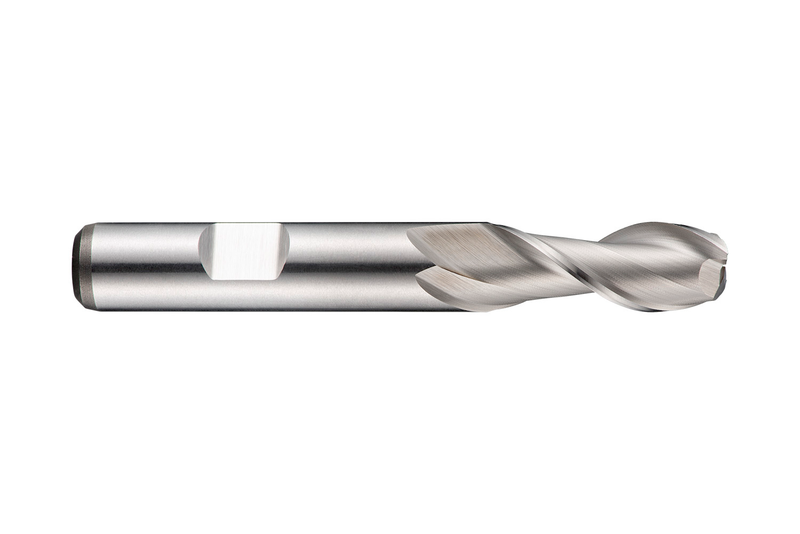

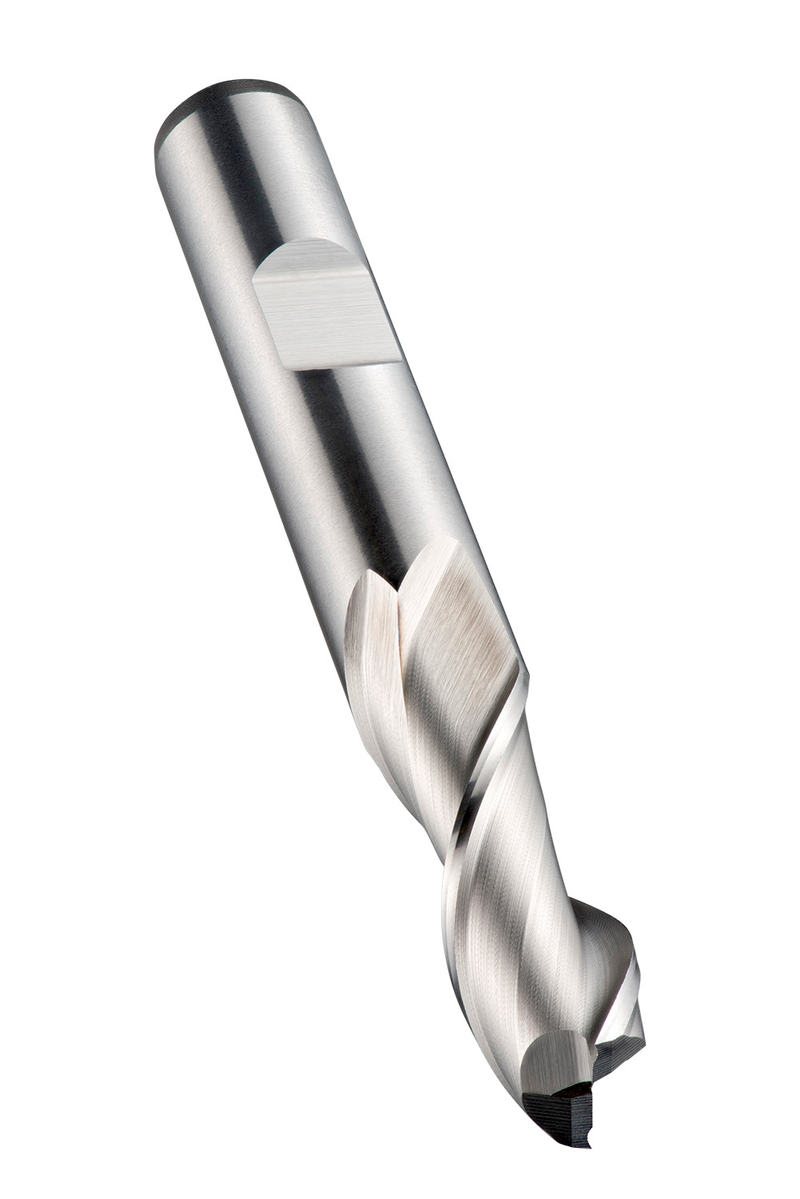

Fraise-scie à deux arêtes, série courte, diamètre 5mm avec une longueur de coupe de 13mm et une longueur totale de 57mm, conforme à la norme DIN 844 K avec une queue Weldon de 6mm, en HSS-E à base de cobalt avec finition brillante, hélice de 40° et angle de dépouille de 20° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en ramping dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1595.0
GradeLumineux
Product Number5984138
Product FamilyC159
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm

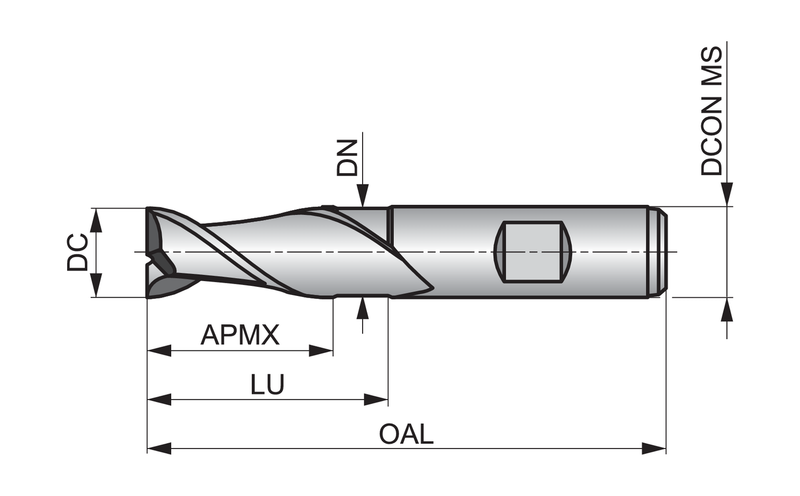

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number59609
EAN7320760059609
File Type Download
C1595.0 — Line Drawing PDF Download
