C3525.0
C3525.0
C3525.0
C3525.0

C3525.0

UGC DOR5984139
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.60 CAD - $69.60 CAD
$69.60 CAD
$69.60 CAD - $69.60 CAD
$69.60 CAD

Vendu en lots de : 1

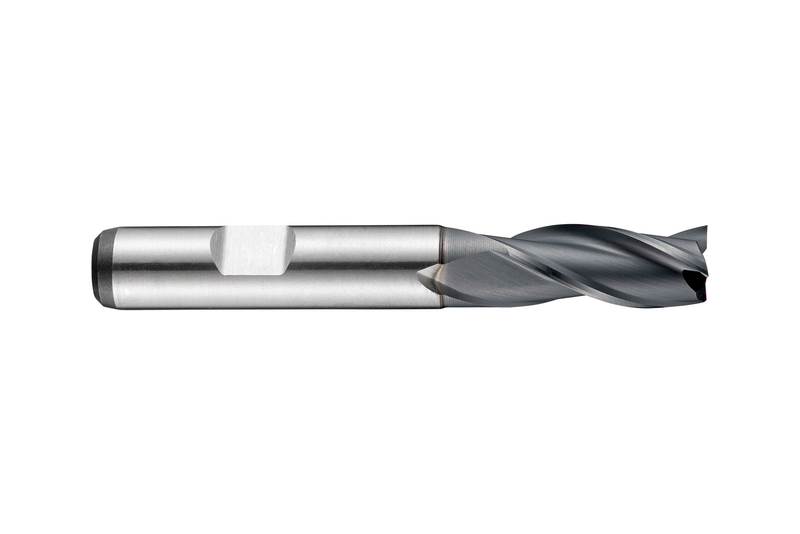

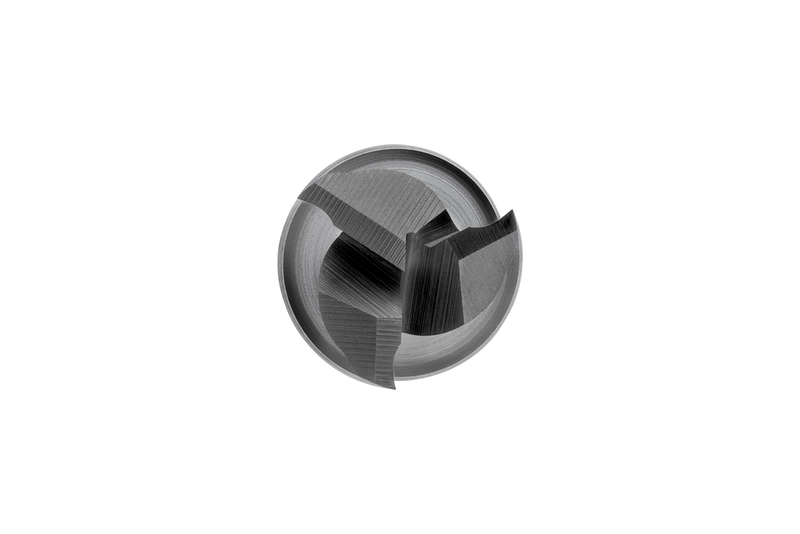

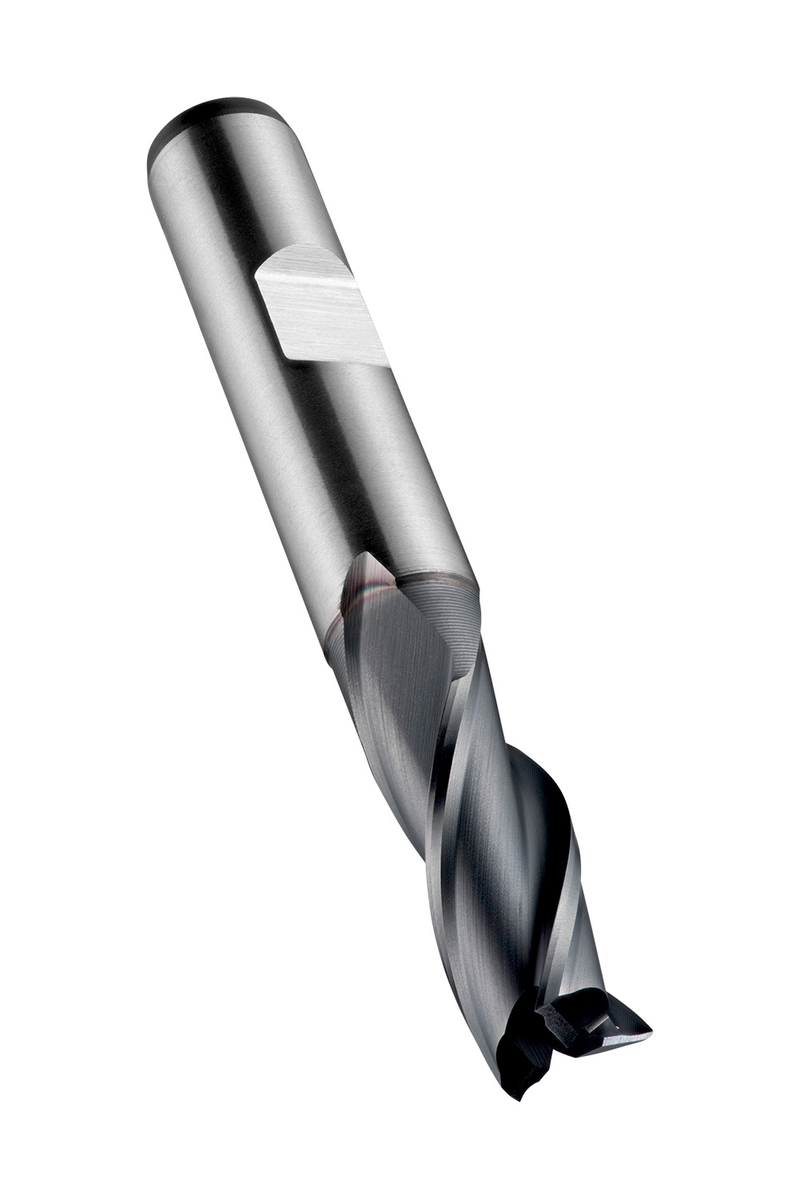

Fraise-scie à trois lèvres courte, diamètre 5 mm avec longueur de coupe de 13 mm et longueur totale de 57 mm, selon la norme DIN 844 K avec une queue Weldon de 6 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3525.0
GradeALCRONA
Product Number5984139
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573044
EAN7320760573044
File Type Download
C3525.0 — Line Drawing PDF Download
