C3526.0
C3526.0
C3526.0
C3526.0

C3526.0

UGC DOR5984141
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.20 CAD - $70.20 CAD
$70.20 CAD
$70.20 CAD - $70.20 CAD
$70.20 CAD

Vendu en lots de : 1

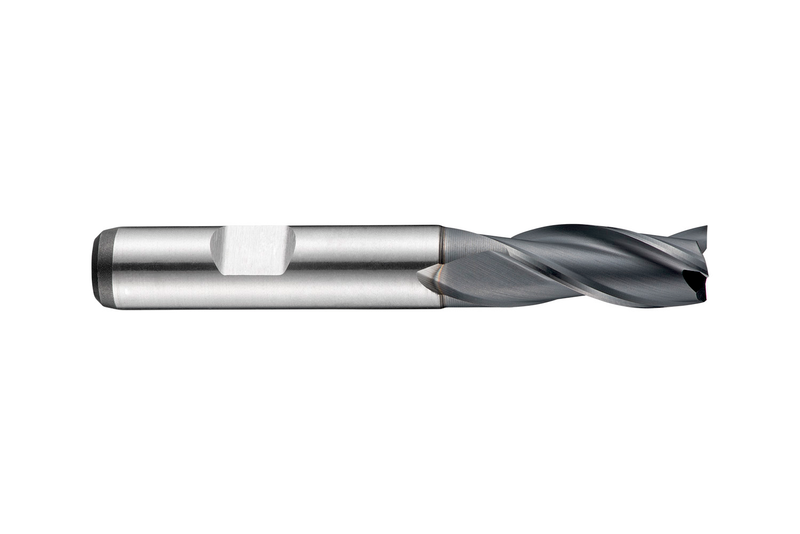

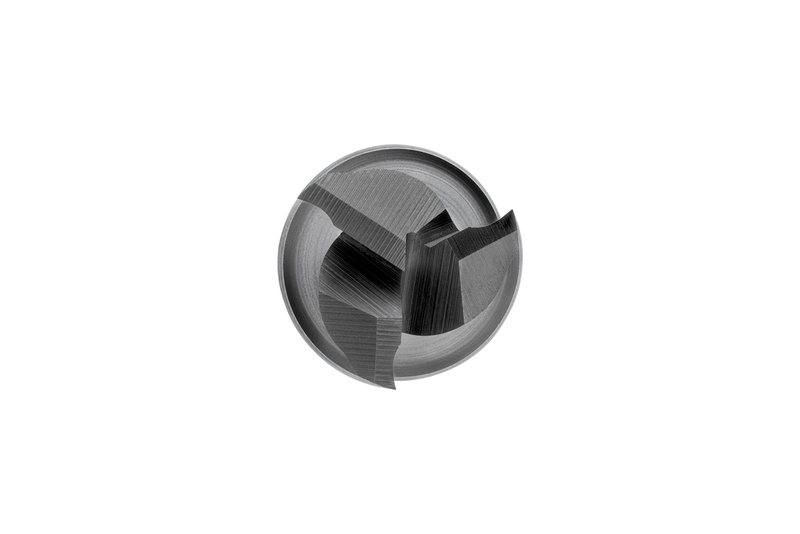

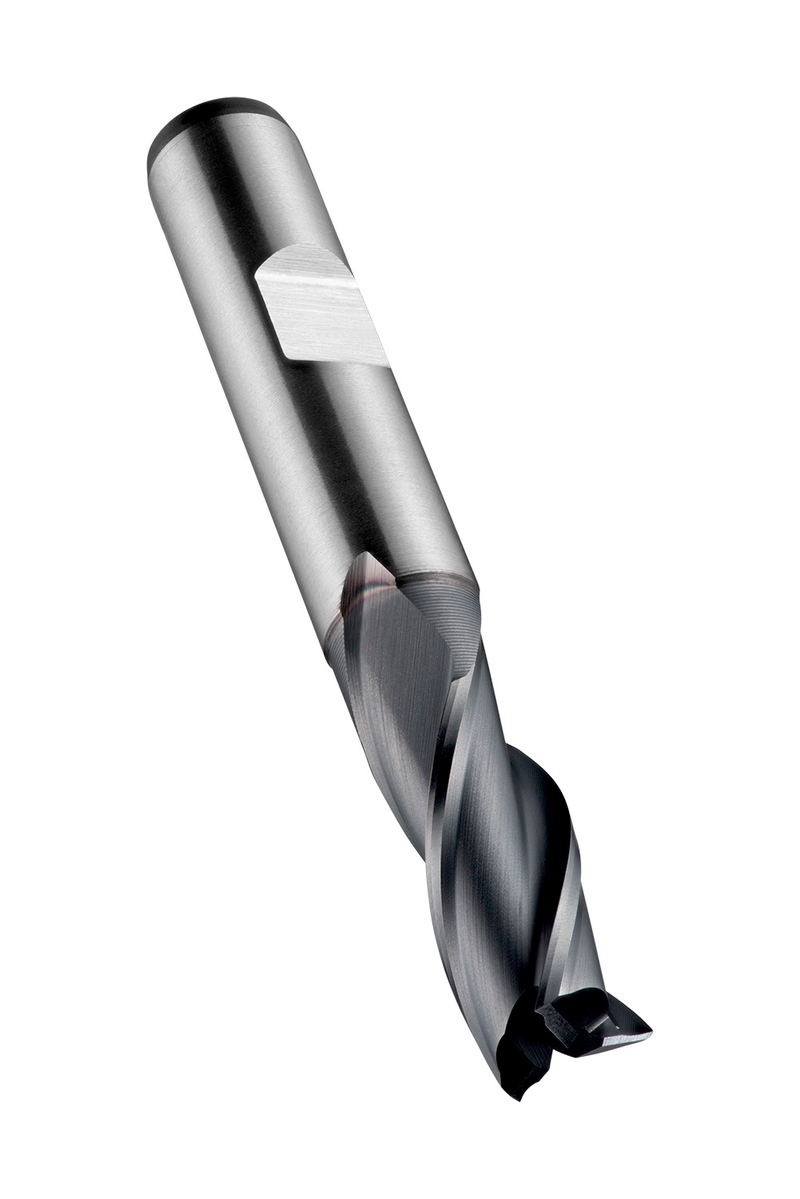

Fraise-scie à rainurer série courte à 3 dents, diamètre 6mm avec 13mm de longueur de coupe et 57mm de longueur totale, selon la norme DIN 844 K avec une queue Weldon de 6mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en acier et acier moulé, fonte, cuivre ou alliages de cuivre et titane ou alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3526.0
GradeALCRONA
Product Number5984141
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573051
EAN7320760573051
File Type Download
C3526.0 — Line Drawing PDF Download
