UGC DOR5984143
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.67 CAD - $45.67 CAD
$45.67 CAD
$45.67 CAD - $45.67 CAD
$45.67 CAD

Vendu en lots de : 1

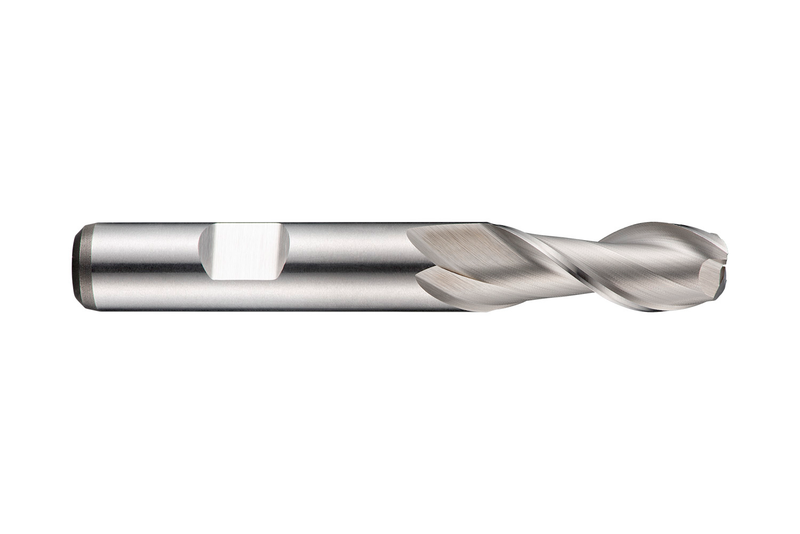

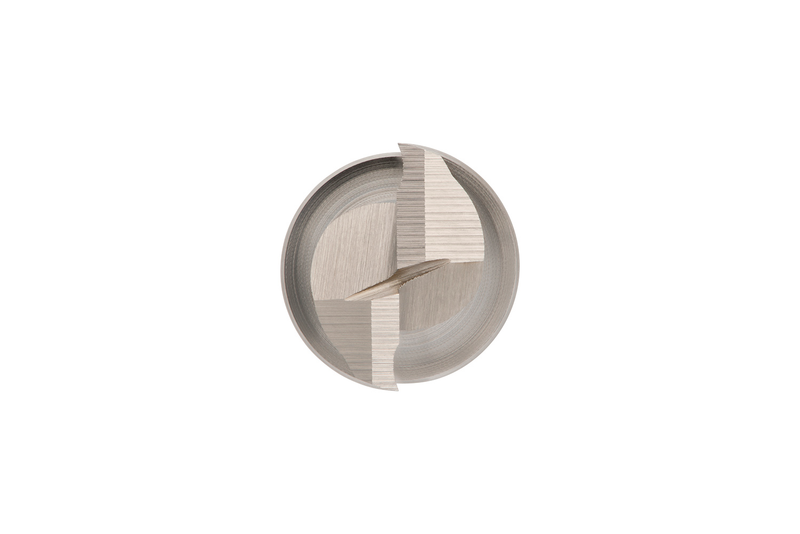

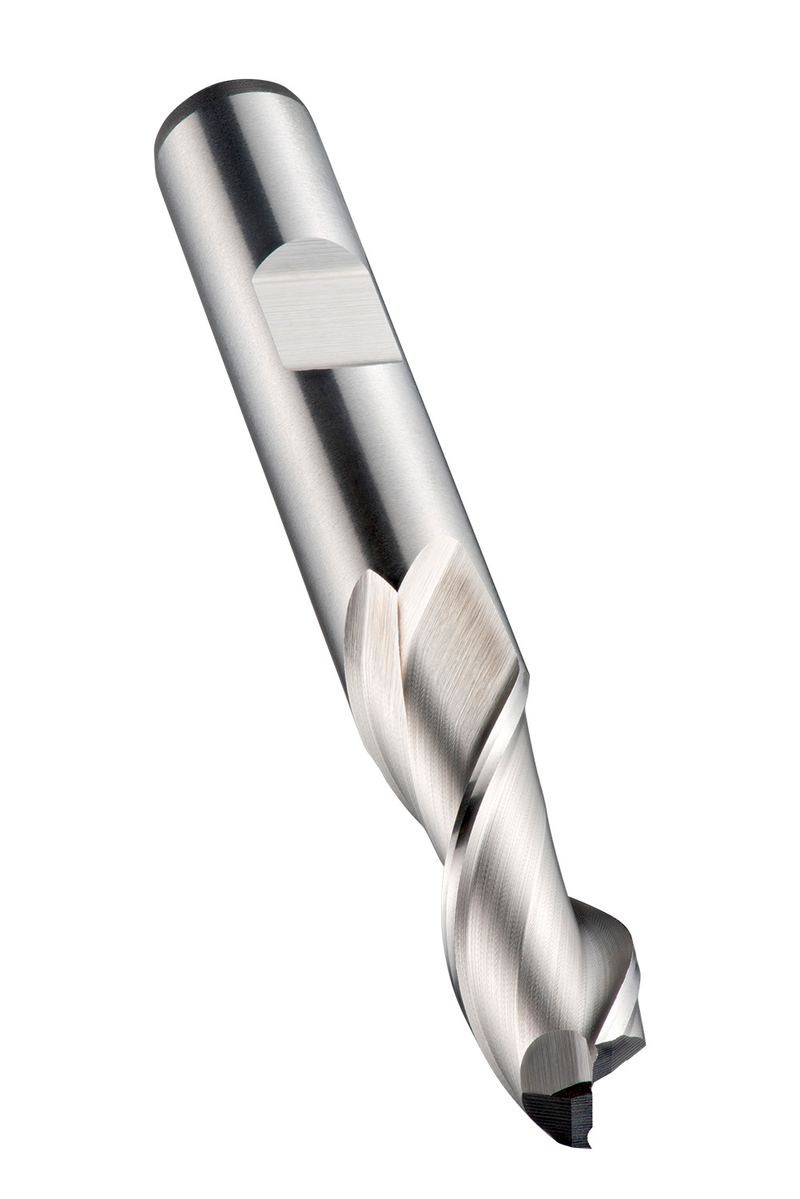

Fraise-scie courte à 2 dents, diamètre 8mm avec une longueur de coupe de 19mm et une longueur totale de 69mm, selon la norme DIN 844 K avec une queue Weldon de 10mm, HSS-E à base de cobalt avec finition brillante, hélice de 40° et angle de dépouille de 20° pour le fraisage d'épaulements, le fraisage de rainures et le rampement dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1598.0
GradeLumineux
Product Number5984143
Product FamilyC159
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.7165"
Overall Length — mm (OAL)69.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number59630
EAN7320760059630
File Type Download

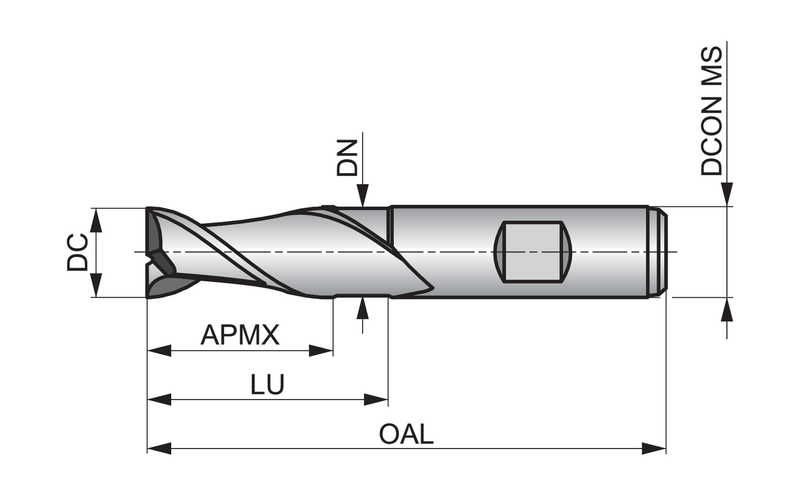

C1598.0 — Line Drawing PDF Download
