UGC DOR5984176
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.20 CAD - $244.20 CAD
$244.20 CAD
$244.20 CAD - $244.20 CAD
$244.20 CAD

Vendu en lots de : 1

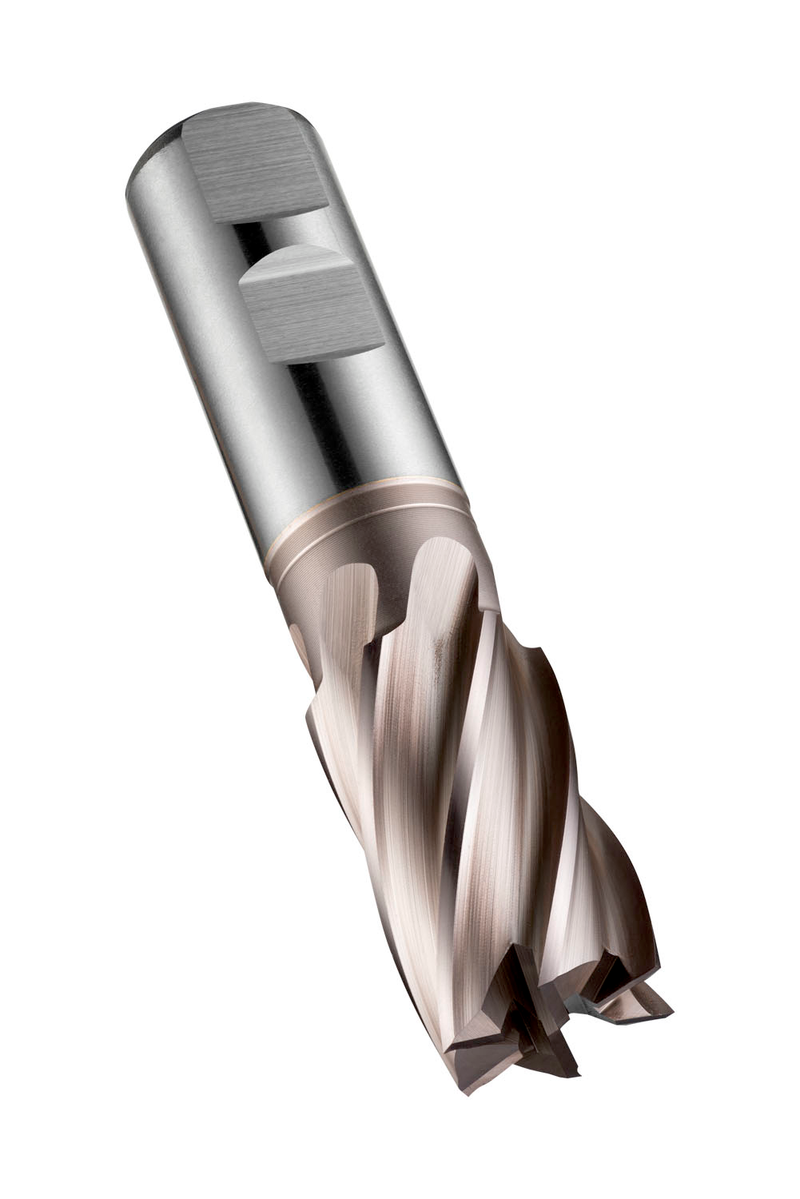

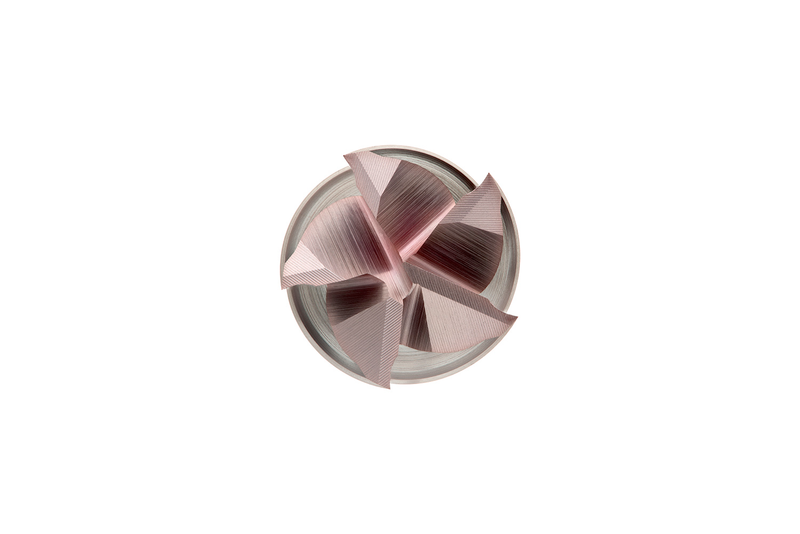

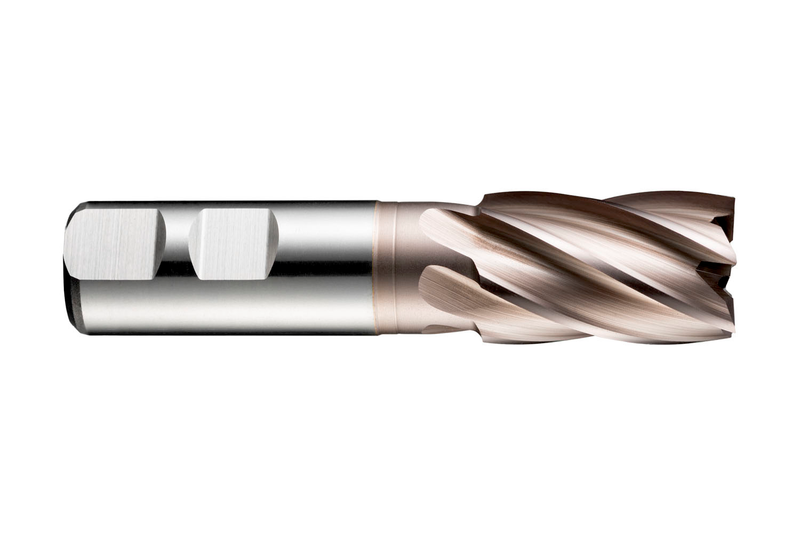

Fraise en bout courte 5 dents, diamètre 25mm, longueur de coupe 45mm, longueur totale 121mm et portée 64,5mm avec dégagement, selon la norme DIN 844 K avec une queue Weldon de 25mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le fraisage en plongée, le fraisage d'épaulements, le fraisage de rainures et le fraisage en ramping dans les aciers de coupe libre, aciers au carbone et alliés, fontes, cuivre ou alliages de cuivre et titane ou alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24625.0
GradeTiCN
Product Number5984176
Product FamilyC246
Insert Geometry
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.7638"
Overall Length — mm (OAL)121.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)30.0°
Tool Information
ShankQueue de Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354537
EAN7320760354537
