UGC DOR5984200
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.01 CAD - $51.01 CAD
$51.01 CAD
$51.01 CAD - $51.01 CAD
$51.01 CAD

Vendu en lots de : 1

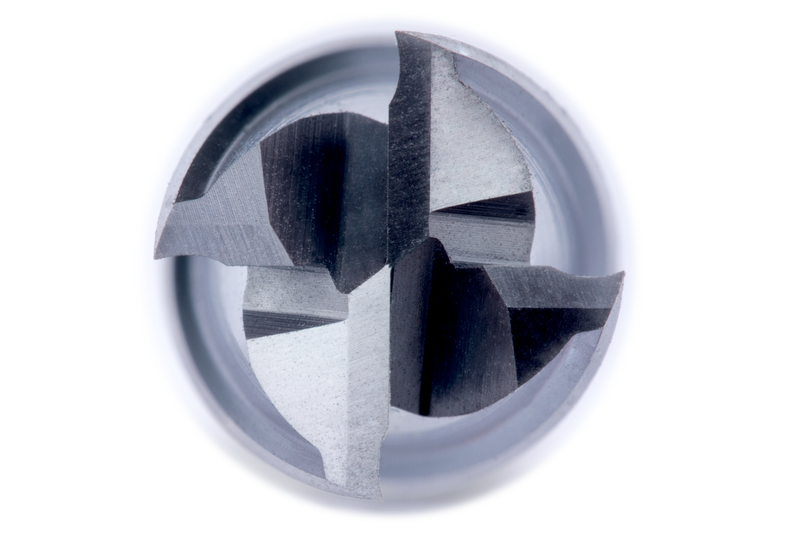

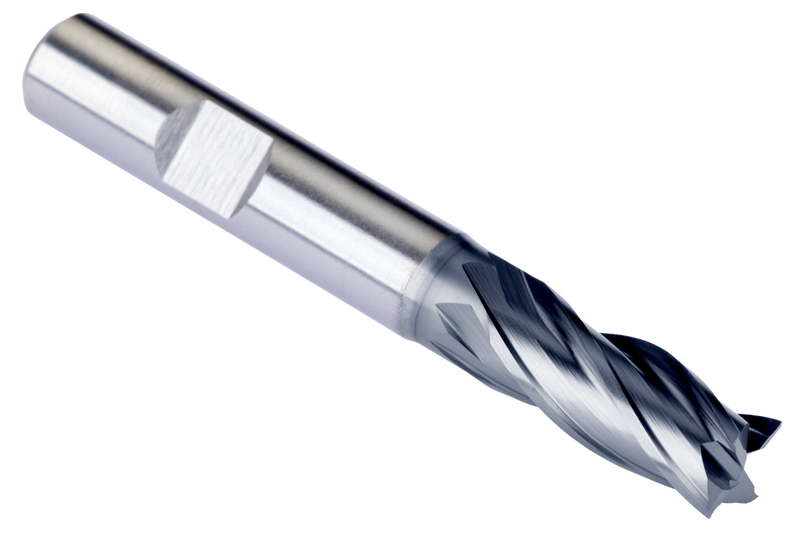

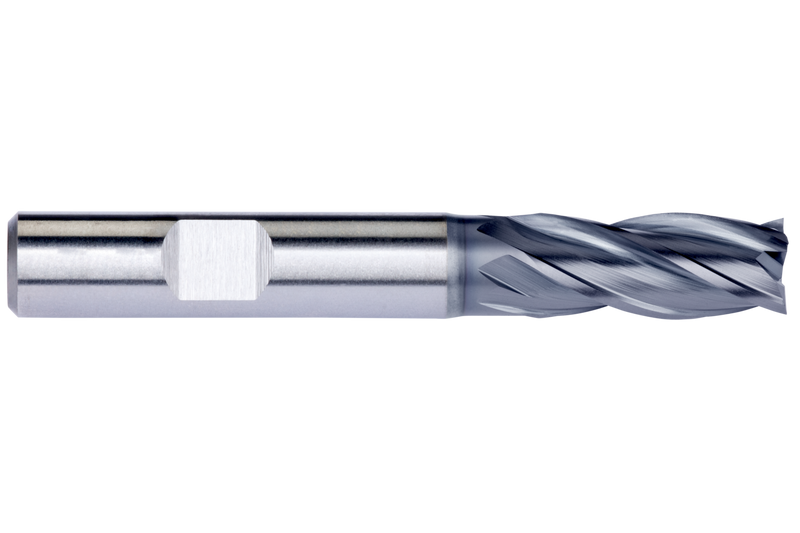

Fraise en bout série courte 4 dents, diamètre 5 mm avec une longueur de coupe de 13 mm et une longueur totale de 57 mm, conforme à la norme DIN 844 K avec un attachement Weldon de 6 mm, en HSS-E (acier rapide fritté) avec revêtement TiCN, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainure et l'interpolation hélicoïdale dans les aciers de décolletage, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2465.0
GradeTiCN
Product Number5984200
Product FamilyC246
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number356234
EAN7320760356234
File Type Download
C2465.0 — Line Drawing PDF Download
