UGC DOR5984204
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.43 CAD - $51.43 CAD
$51.43 CAD
$51.43 CAD - $51.43 CAD
$51.43 CAD

Vendu en lots de : 1

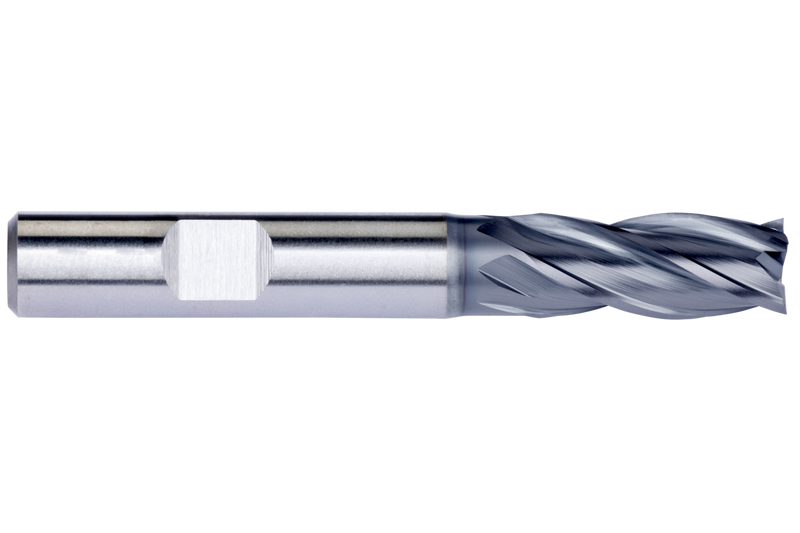

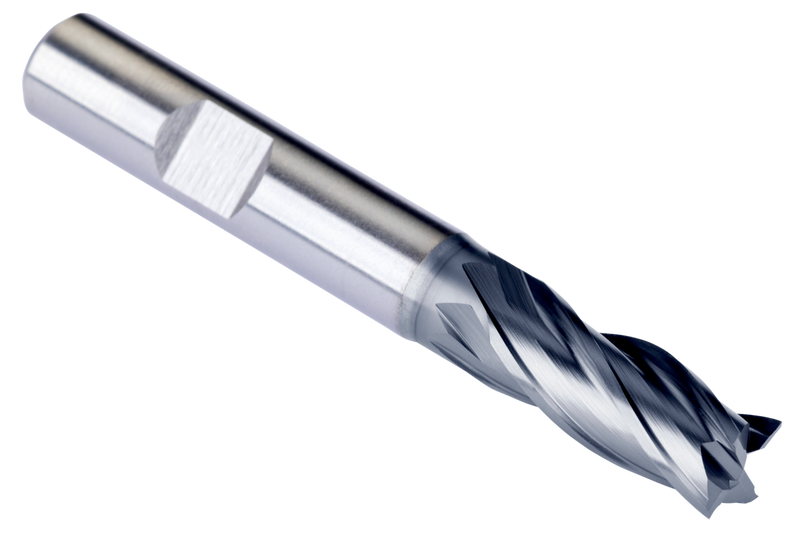

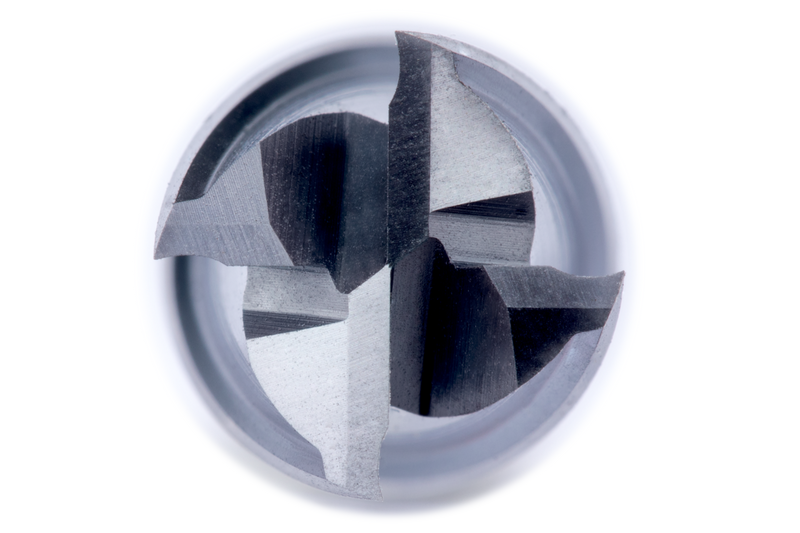

Fraise en bout courte 4 dents, diamètre 6mm avec une longueur de coupe de 13mm et une longueur totale de 57mm, selon la norme DIN 844 K avec une queue Weldon de 6mm, HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2466.0
GradeTiCN
Product Number5984204
Product FamilyC246
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354568
EAN7320760354568
File Type Download
C2466.0 — Line Drawing PDF Download
