UGC DOR5984219
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$83.51 CAD - $83.51 CAD
$83.51 CAD
$83.51 CAD - $83.51 CAD
$83.51 CAD

Vendu en lots de : 1

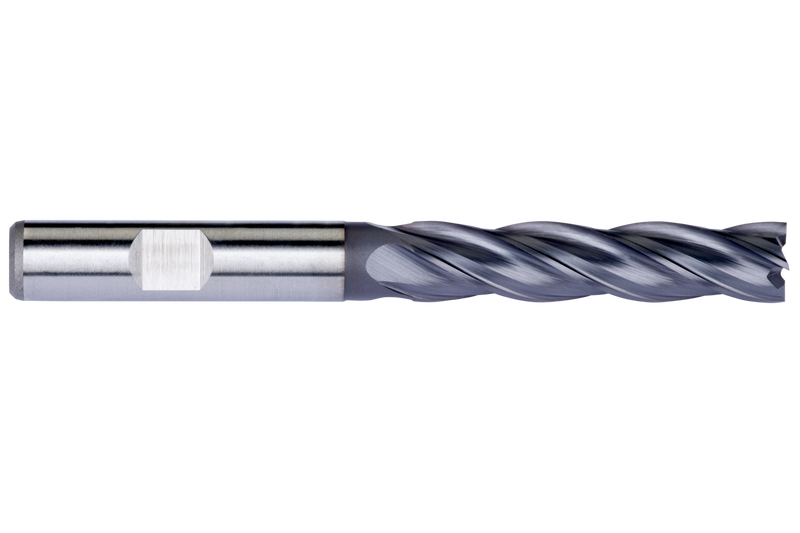

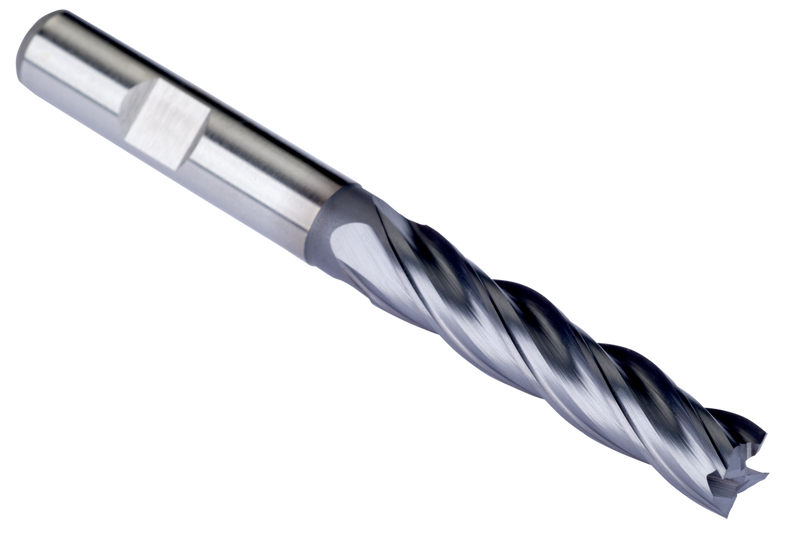

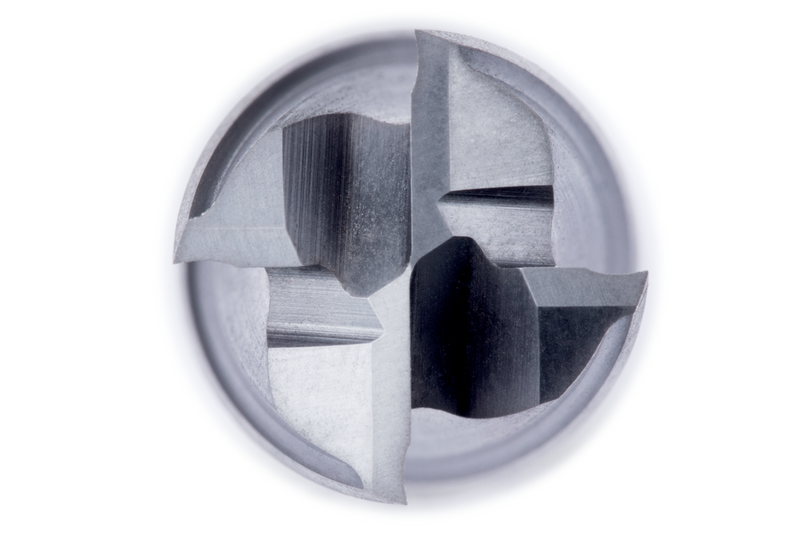

Fraise 4 dents en bout série longue, diamètre 7mm, longueur de coupe 30mm et longueur totale 80mm, conforme à la norme DIN 844 L avec queue Weldon 10mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements et de rainures dans les aciers à usinabilité améliorée, aciers au carbone et alliés, fontes, cuivre ou alliages de cuivre et titane ou alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2957.0
GradeTiCN
Product Number5984219
Product FamilyC295
Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm
Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number356340
EAN7320760356340
File Type Download
C2957.0 — Line Drawing PDF Download
