UGC DOR5984230
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

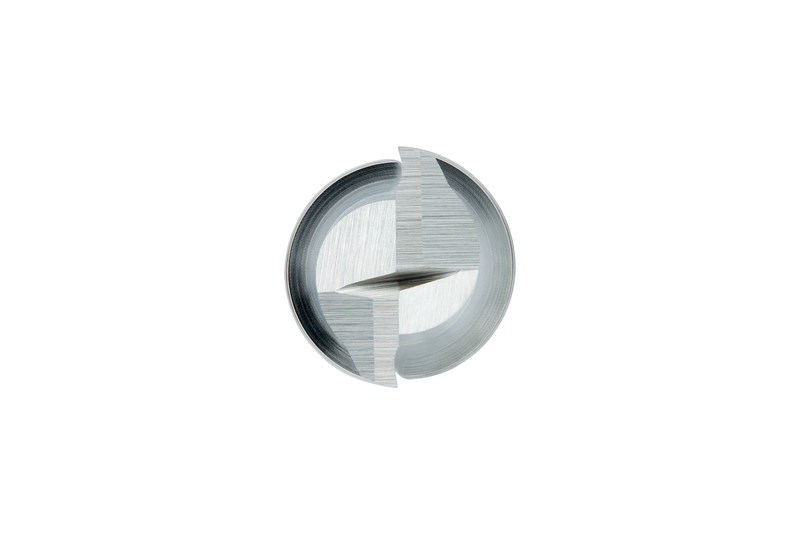

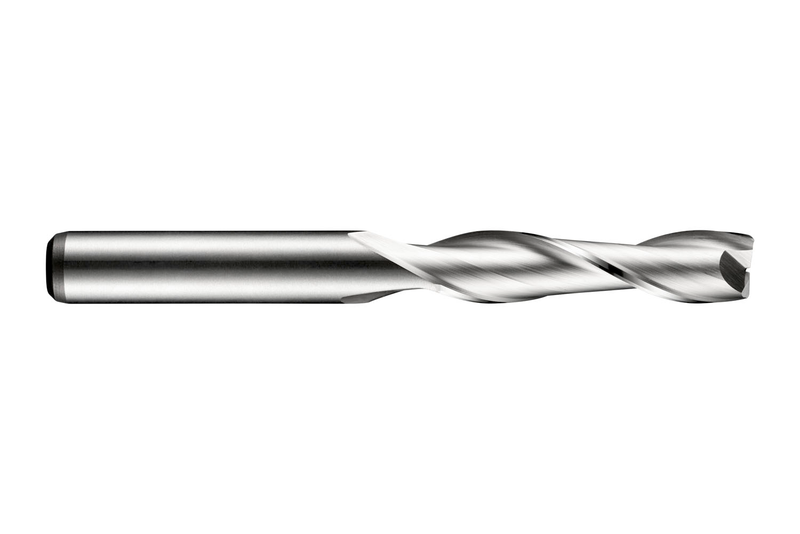

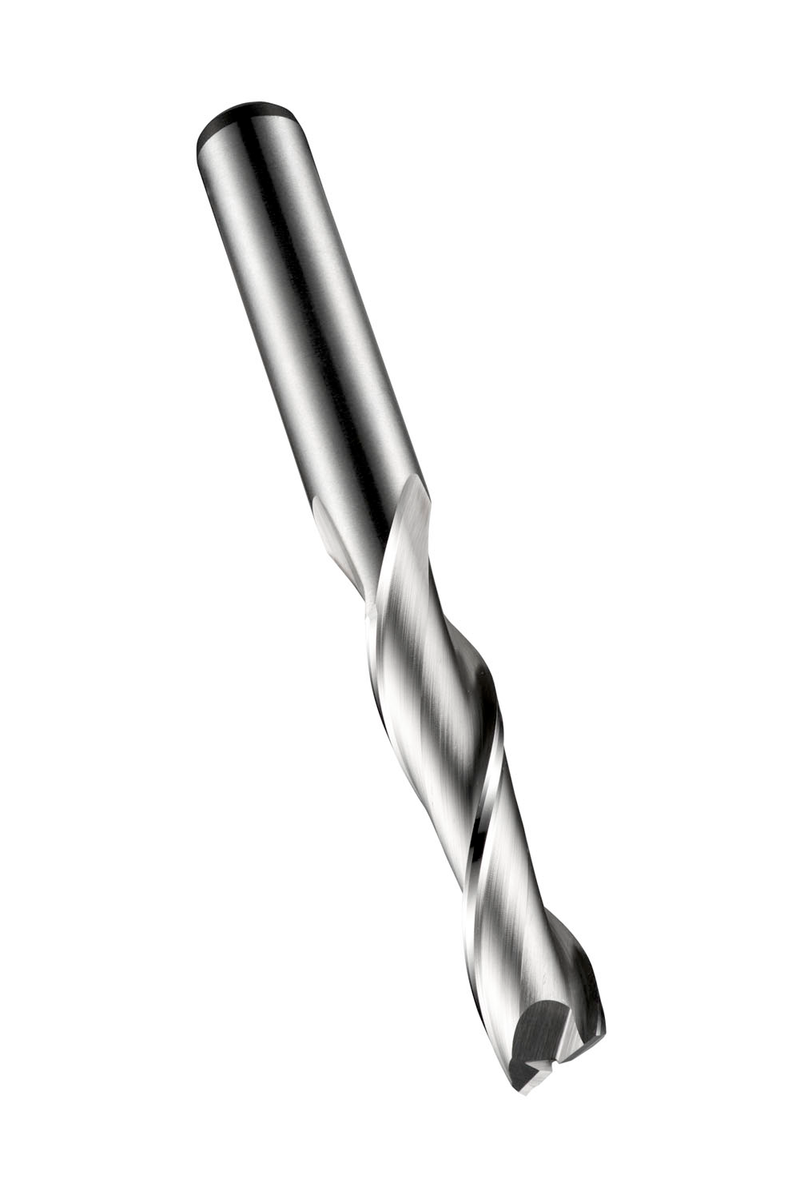

Fraise 2 tailles à queue longue de diamètre 10 mm avec une longueur de coupe de 40 mm et une longueur totale de 95 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en HSS-E cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements et le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12210.0
GradeLumineux
Product Number5984230
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)1.5748"
Depth of Cut Max — mm (APMX)40.0 mm

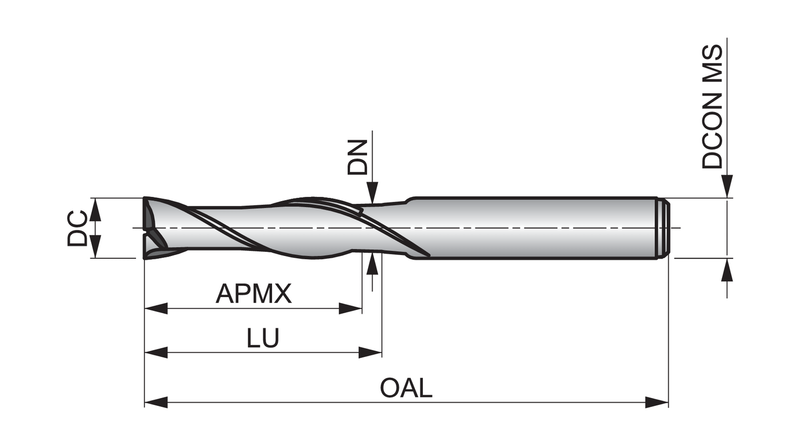

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56417
EAN7320760056417
File Type Download
C12210.0 — Line Drawing PDF Download
