C2471/2
C2471/2
C2471/2
C2471/2

C2471/2

UGC DOR5984233
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.94 CAD - $72.94 CAD
$72.94 CAD
$72.94 CAD - $72.94 CAD
$72.94 CAD

Vendu en lots de : 1

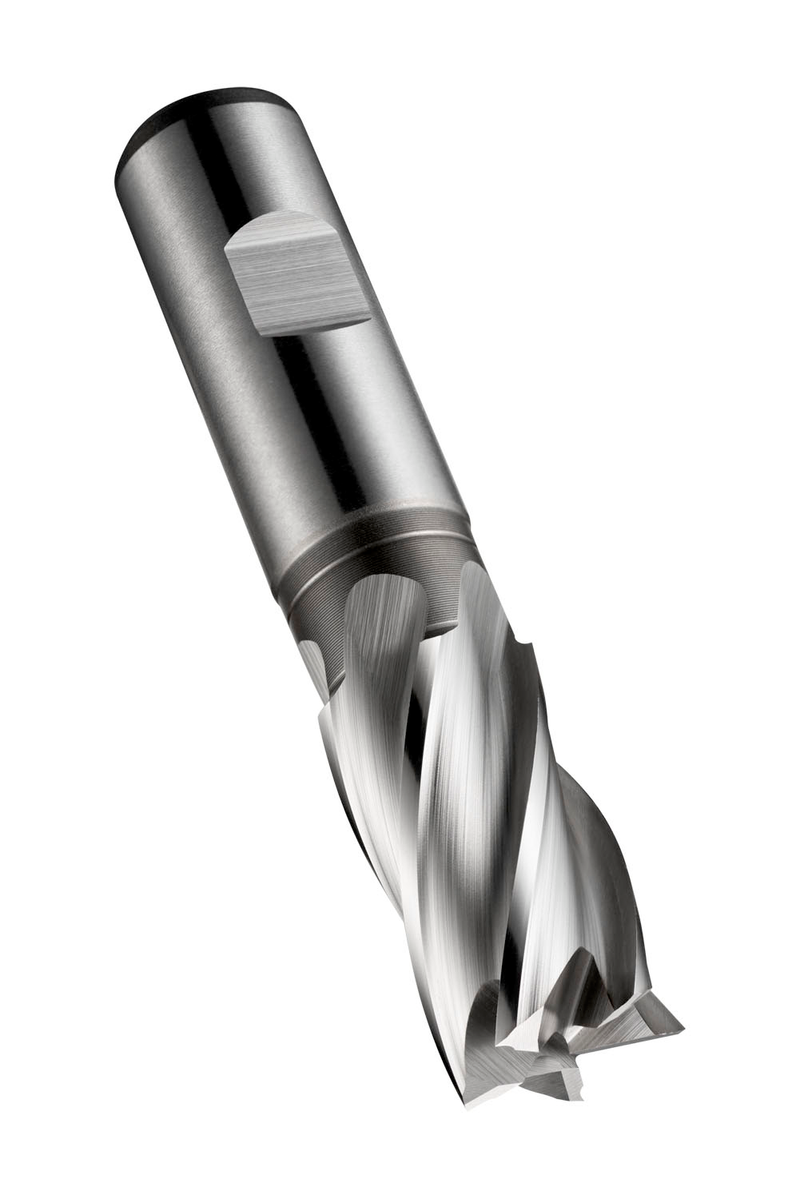

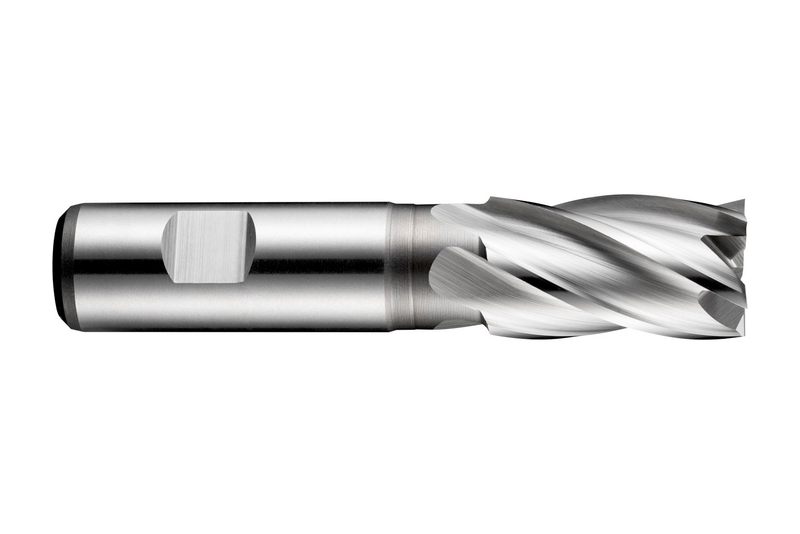

Fraise 4 dents en bout de série courte, diamètre 1/2", longueur de coupe 26 mm, longueur totale 83 mm et portée 37,5 mm avec dégagement de col, selon la norme DIN 844 K avec queue Weldon de 12 mm, HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans les aciers de décolletage et au carbone non alliés, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2471/2
GradeLumineux
Product Number5984233
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number640197
EAN7320760640197
File Type Download
C2471/2 — Line Drawing PDF Download
