UGC DOR5984235
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.66 CAD - $67.66 CAD
$67.66 CAD
$67.66 CAD - $67.66 CAD
$67.66 CAD

Vendu en lots de : 1

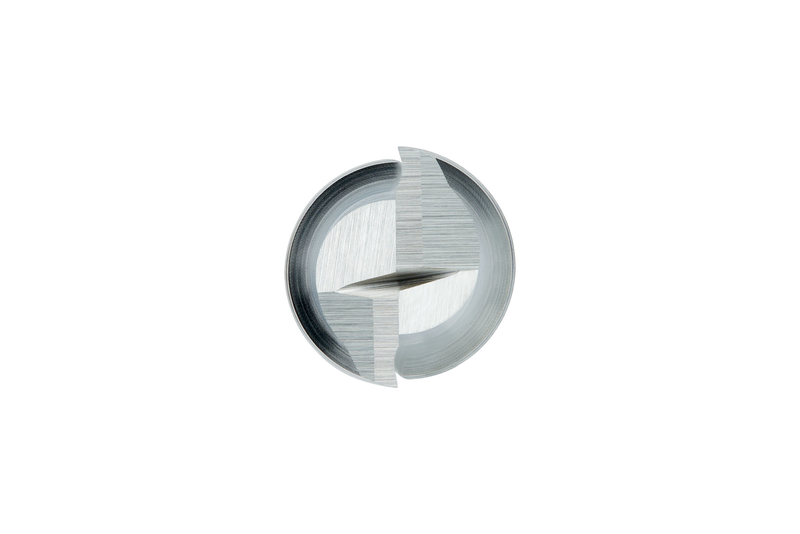

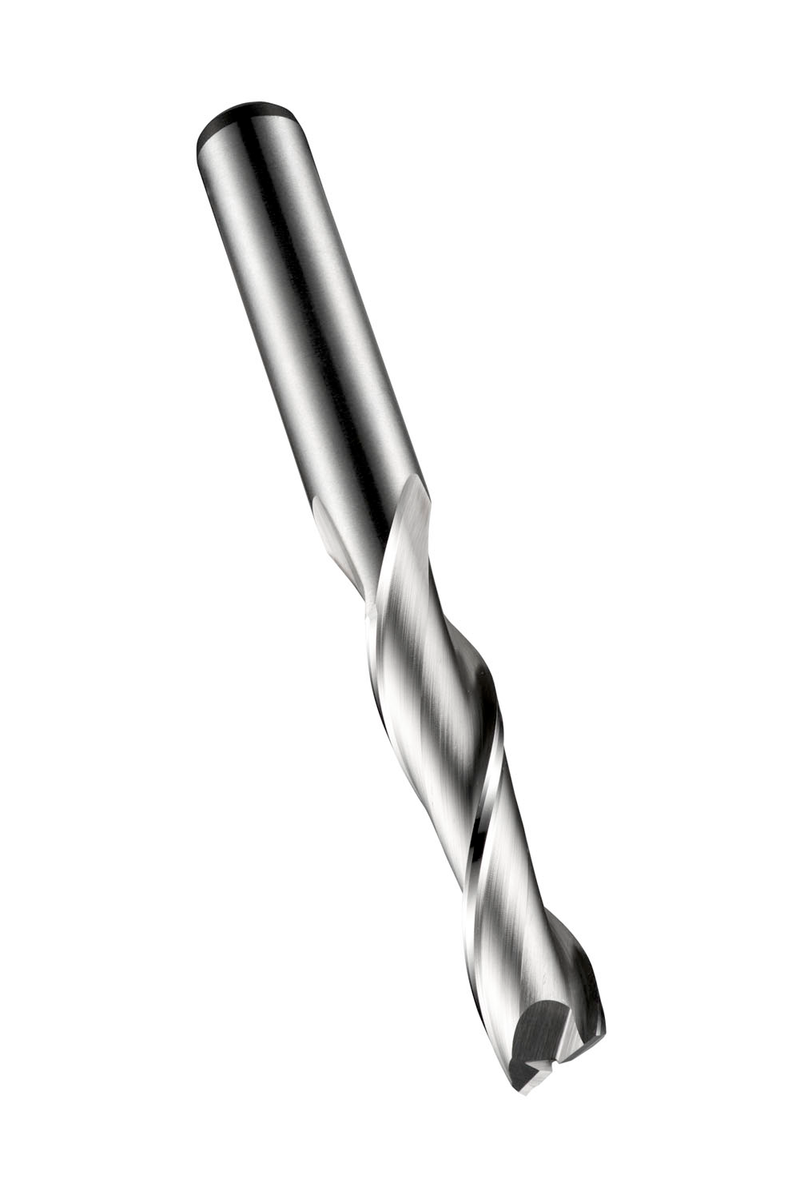

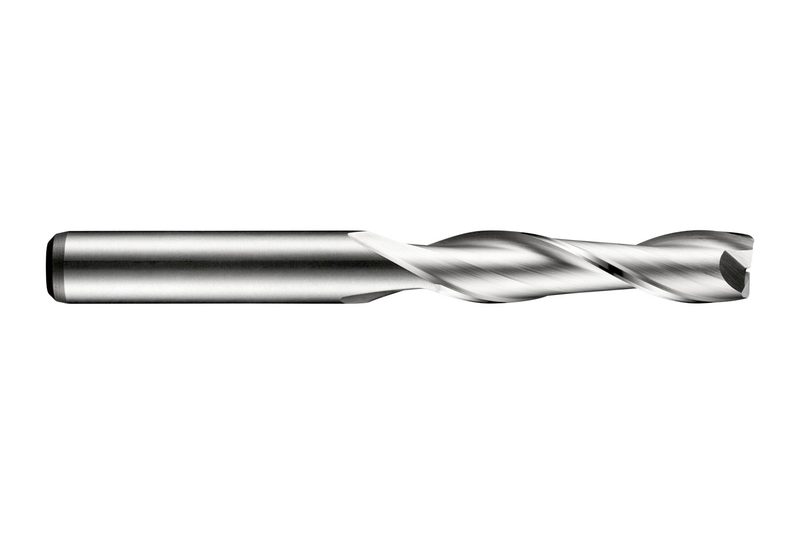

Fraise deux tailles à queue cylindrique longue, diamètre 12mm avec une longueur de coupe de 45mm et une longueur totale de 110mm, selon la norme DORMER, avec une queue cylindrique de 12mm, en HSS-E au cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage en bout et le fraisage de rainures dans les aciers à usinage facile et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12212.0
GradeLumineux
Product Number5984235
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm

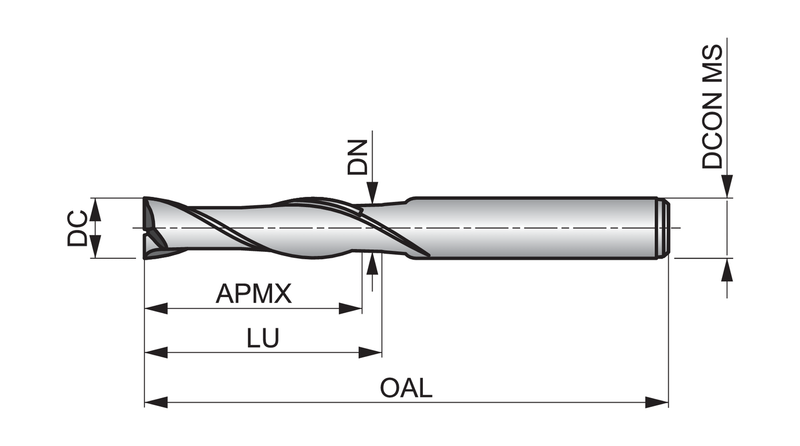

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56424
EAN7320760056424
File Type Download
C12212.0 — Line Drawing PDF Download
