UGC DOR5984240
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.10 CAD - $85.10 CAD
$85.10 CAD
$85.10 CAD - $85.10 CAD
$85.10 CAD

Vendu en lots de : 1

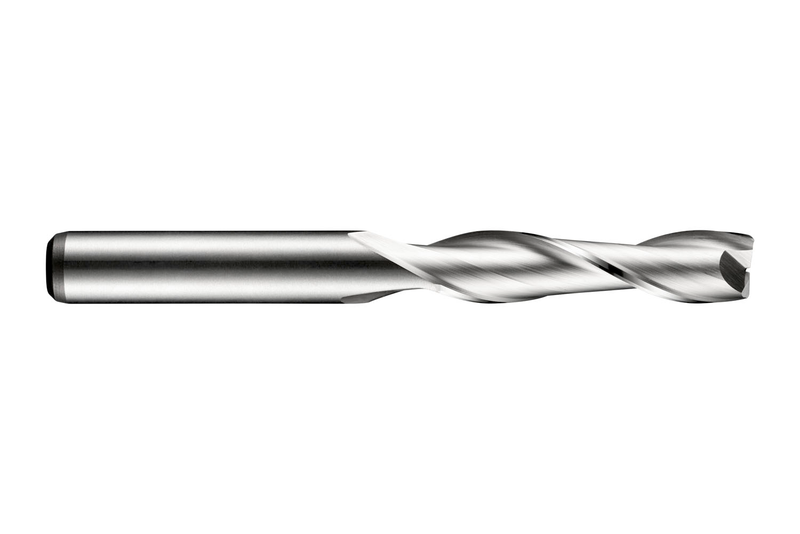

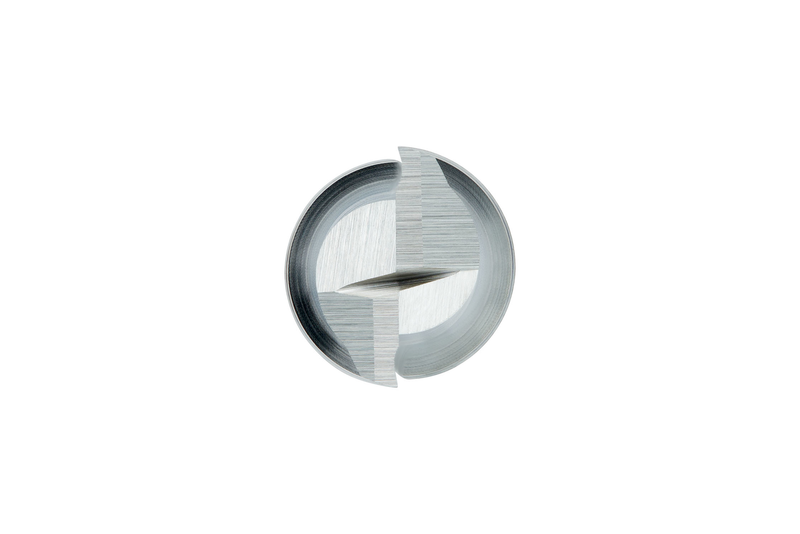

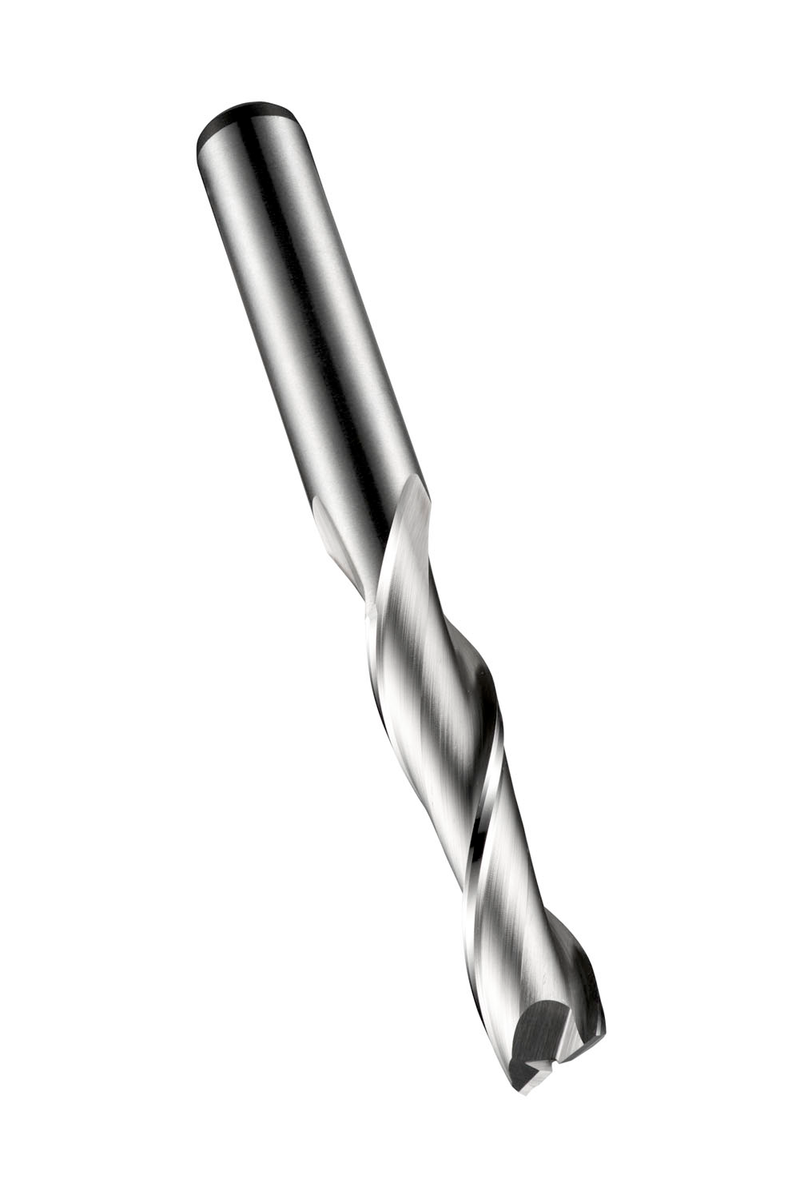

Fraise en bout longue série 2 coupes, diamètre 14mm avec 52mm de longueur de coupe et 125mm de longueur totale, selon la norme DORMER avec queue cylindrique de 12mm, en HSS-E cobalt avec finition brillante, hélice à 30° et angle de dépouille à 12° pour l'usinage d'épaulements et de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12214.0
GradeLumineux
Product Number5984240
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)2.0472"
Depth of Cut Max — mm (APMX)52.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56431
EAN7320760056431
File Type Download

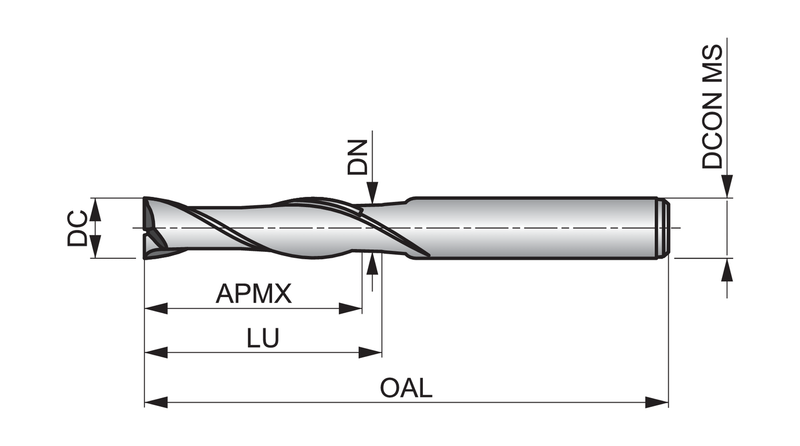

C12214.0 — Line Drawing PDF Download
