UGC DOR5984246
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.01 CAD - $102.01 CAD
$102.01 CAD
$102.01 CAD - $102.01 CAD
$102.01 CAD

Vendu en lots de : 1

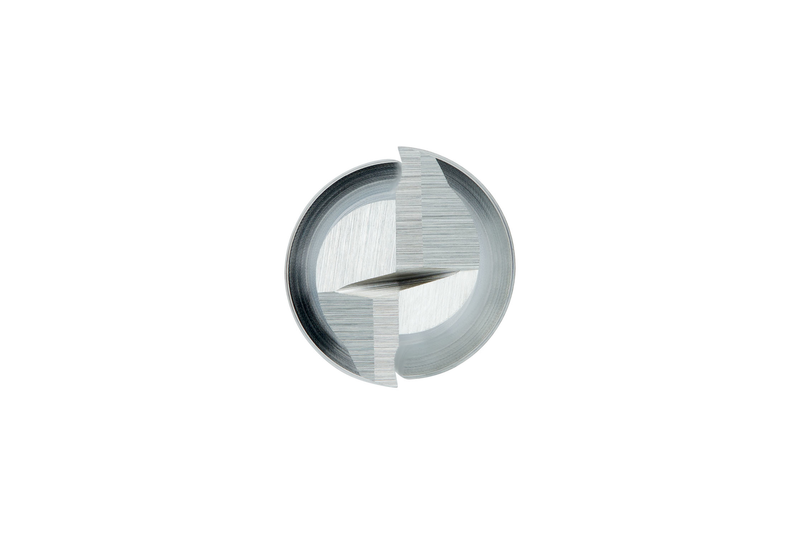

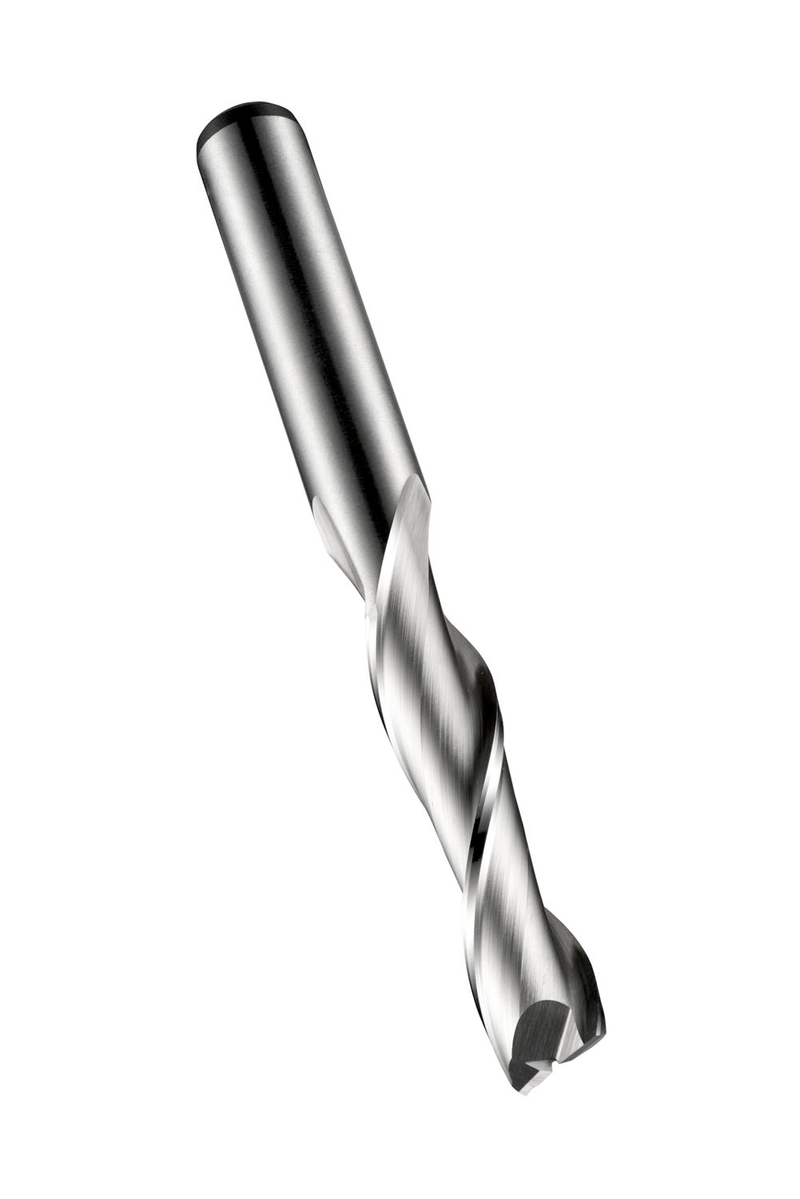

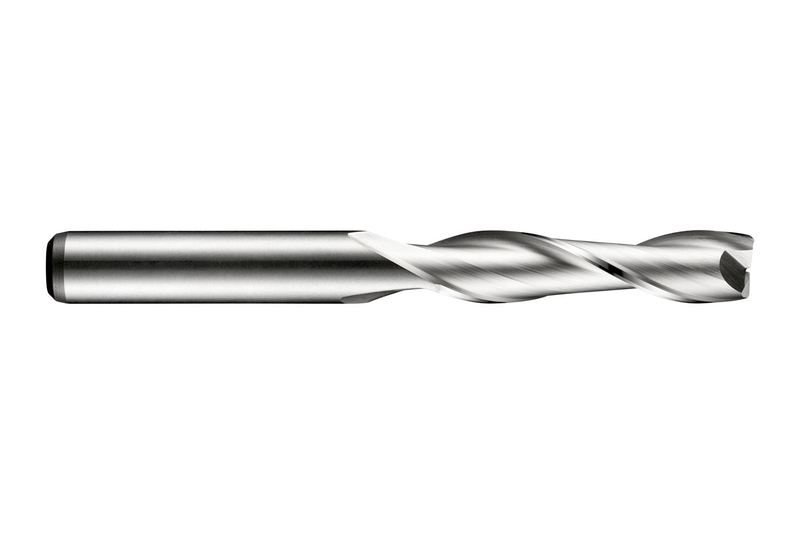

Fraise en bout série longue 2 dents, diamètre 16mm avec 58mm de longueur de coupe, 140mm de longueur totale et 69.5mm d'allongement avec dégagement de collet, selon la norme DORMER avec une queue cylindrique de 16mm, en HSS-E à base de cobalt avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le surfaçage et le fraisage de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12216.0
GradeLumineux
Product Number5984246
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)2.2835"
Depth of Cut Max — mm (APMX)58.0 mm

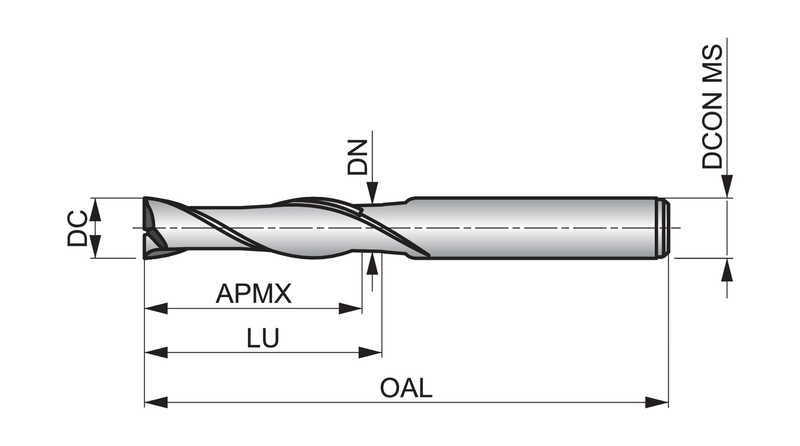

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)69.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56448
EAN7320760056448
File Type Download
C12216.0 — Line Drawing PDF Download
