UGC DOR5984252
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$116.81 CAD - $116.81 CAD
$116.81 CAD
$116.81 CAD - $116.81 CAD
$116.81 CAD

Vendu en lots de : 1

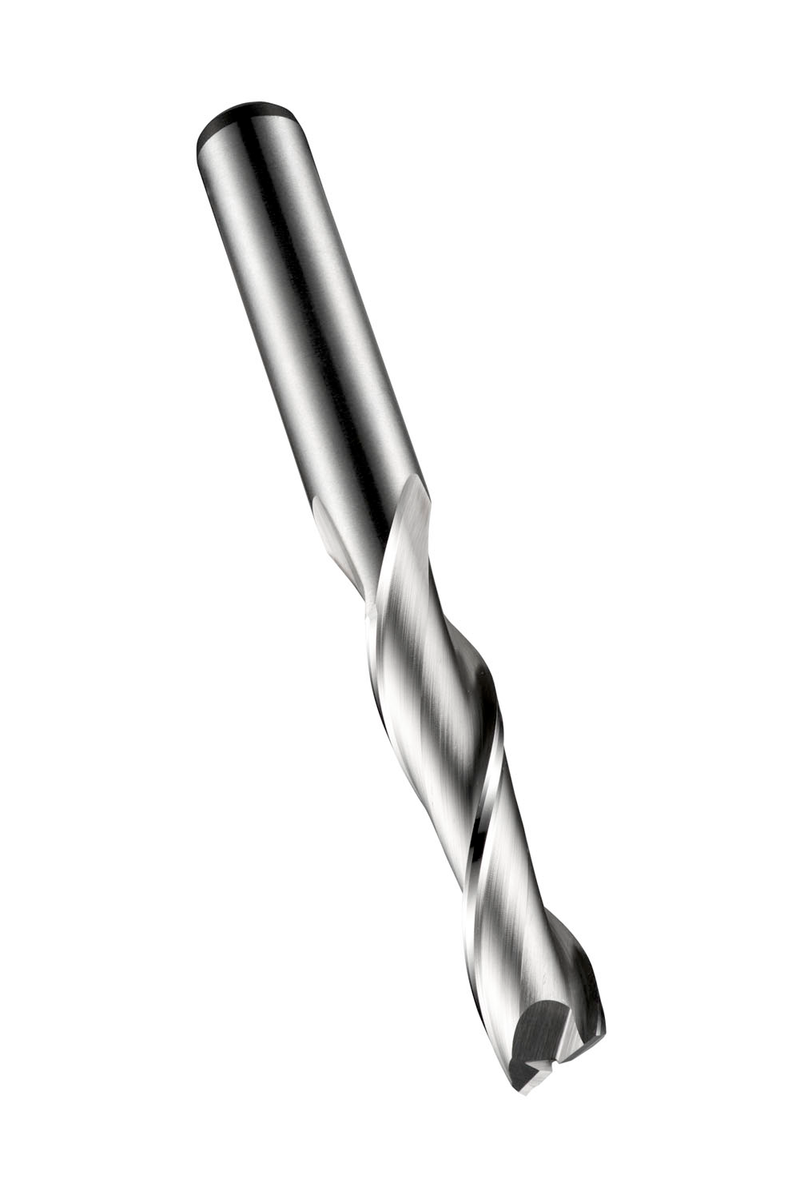

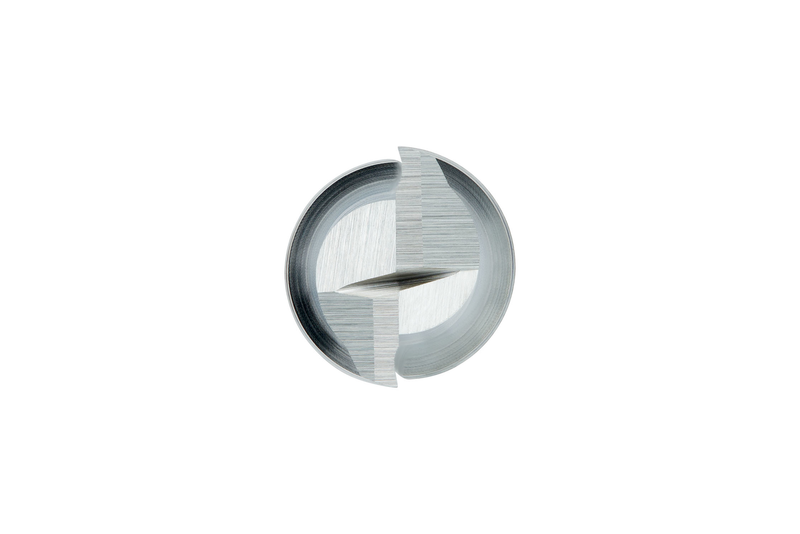

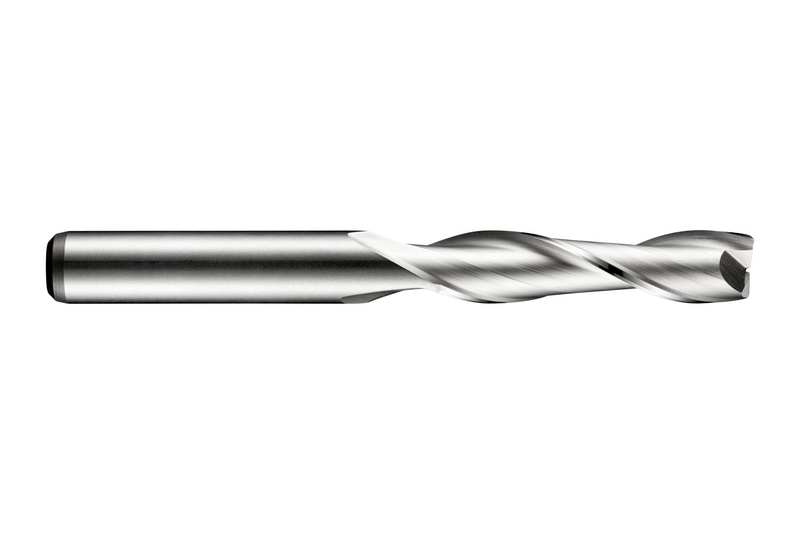

Fraise deux tailles à queue longue, diamètre 18 mm, longueur de coupe 65 mm, longueur totale 150 mm, portée 76,5 mm avec dégagement de la gorge, conforme à la norme DORMER, queue cylindrique 16 mm, en HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements et de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)C12218.0
Product Name (ISO)C12218,0
GradeLumineux
Product Number5984252
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)2.5591"
Depth of Cut Max — mm (APMX)65.0 mm

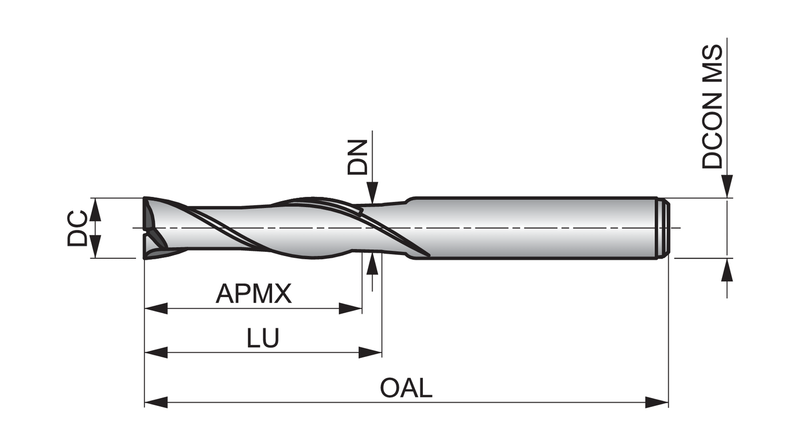

Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)76.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56455
EAN7320760056455
File Type Download
C12218.0 — Line Drawing PDF Download
