UGC DOR5984257
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$135.31 CAD - $135.31 CAD
$135.31 CAD
$135.31 CAD - $135.31 CAD
$135.31 CAD

Vendu en lots de : 1

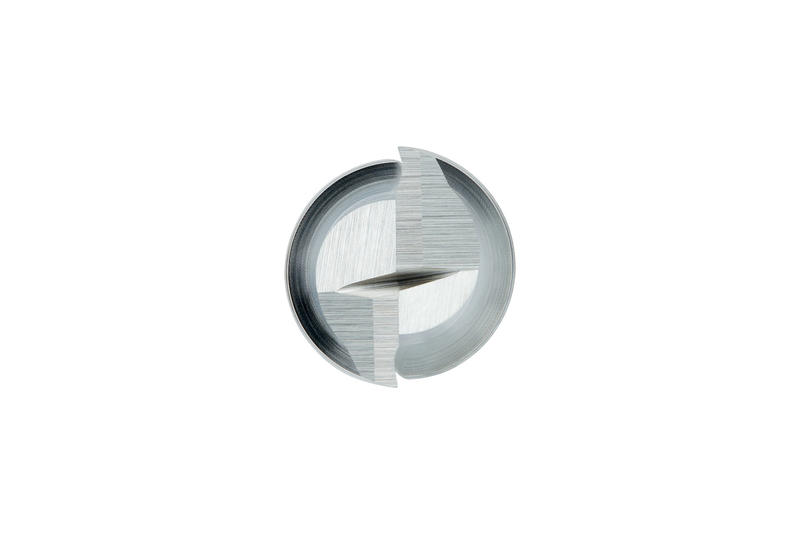

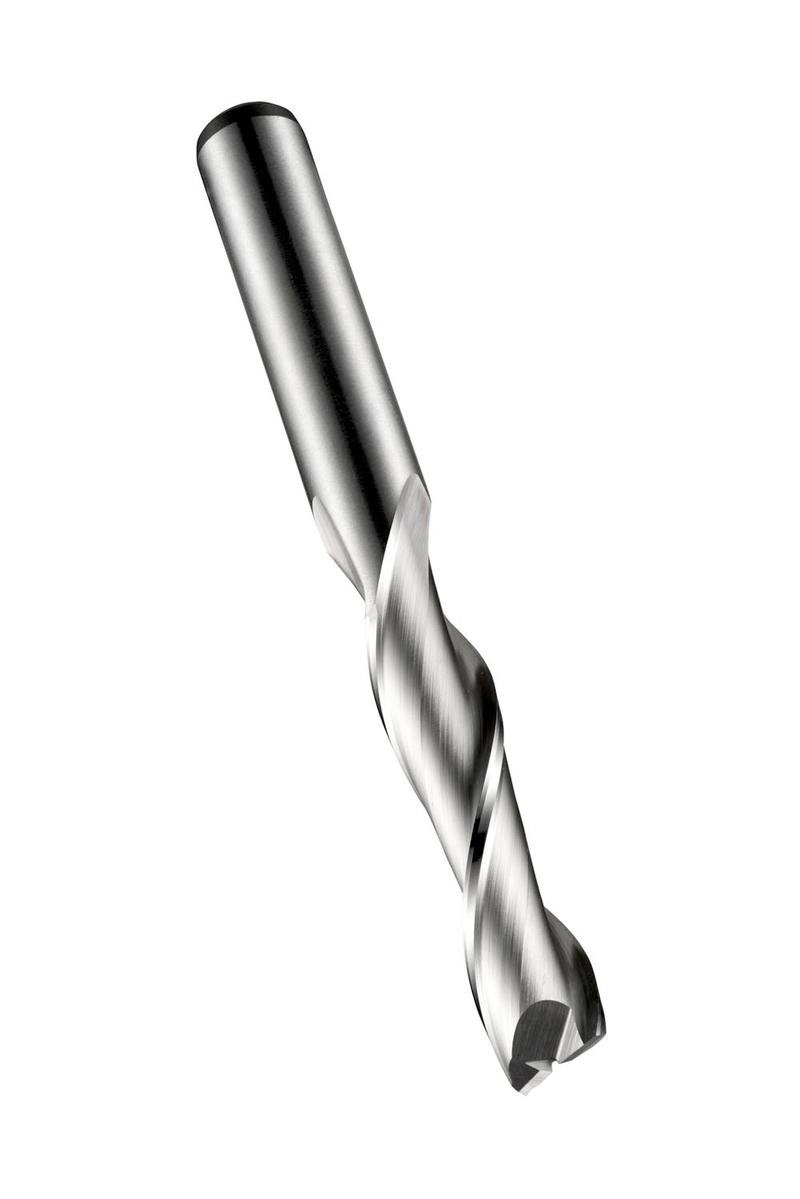

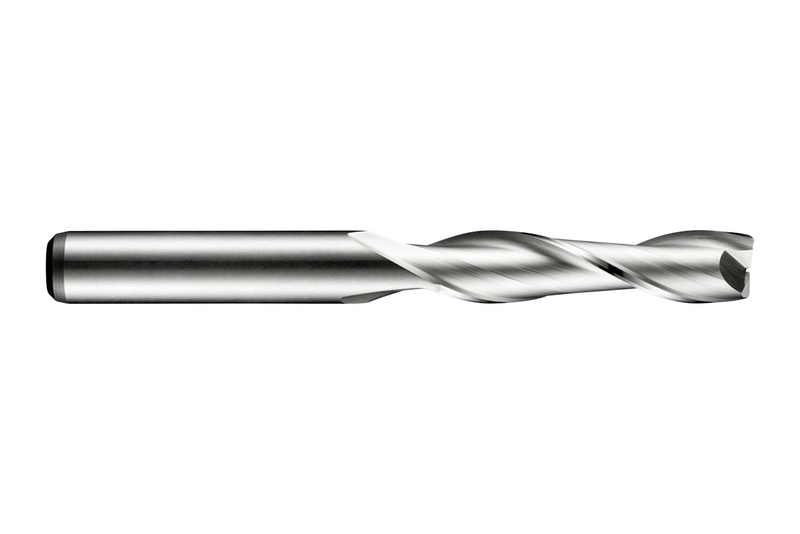

Fraise deux tailles à queue longue, diamètre 20 mm, longueur de coupe de 70 mm, longueur totale de 160 mm et longueur accessible de 85,5 mm avec dégagement de collet, selon la norme DORMER avec une queue cylindrique de 20 mm, HSS-E au cobalt avec finition brillante, hélice de 30° et angle de dégagement de 12° pour le fraisage d'épaulements et de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12220.0
GradeLumineux
Product Number5984257
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)2.7559"
Depth of Cut Max — mm (APMX)70.0 mm

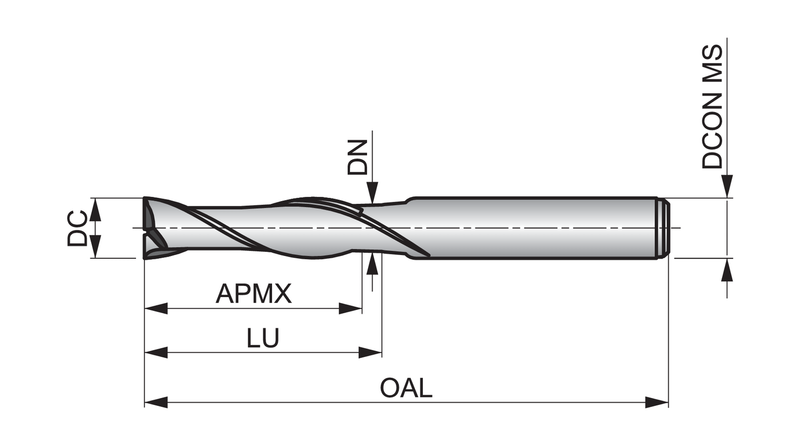

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Usable Length — mm (LU)85.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56462
EAN7320760056462
File Type Download
C12220.0 — Line Drawing PDF Download
