UGC DOR5984261
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.53 CAD - $74.53 CAD
$74.53 CAD
$74.53 CAD - $74.53 CAD
$74.53 CAD

Vendu en lots de : 1

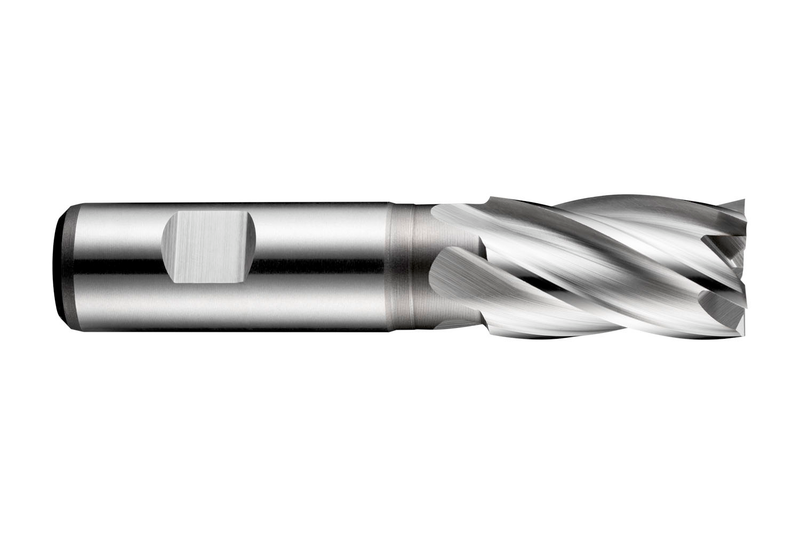

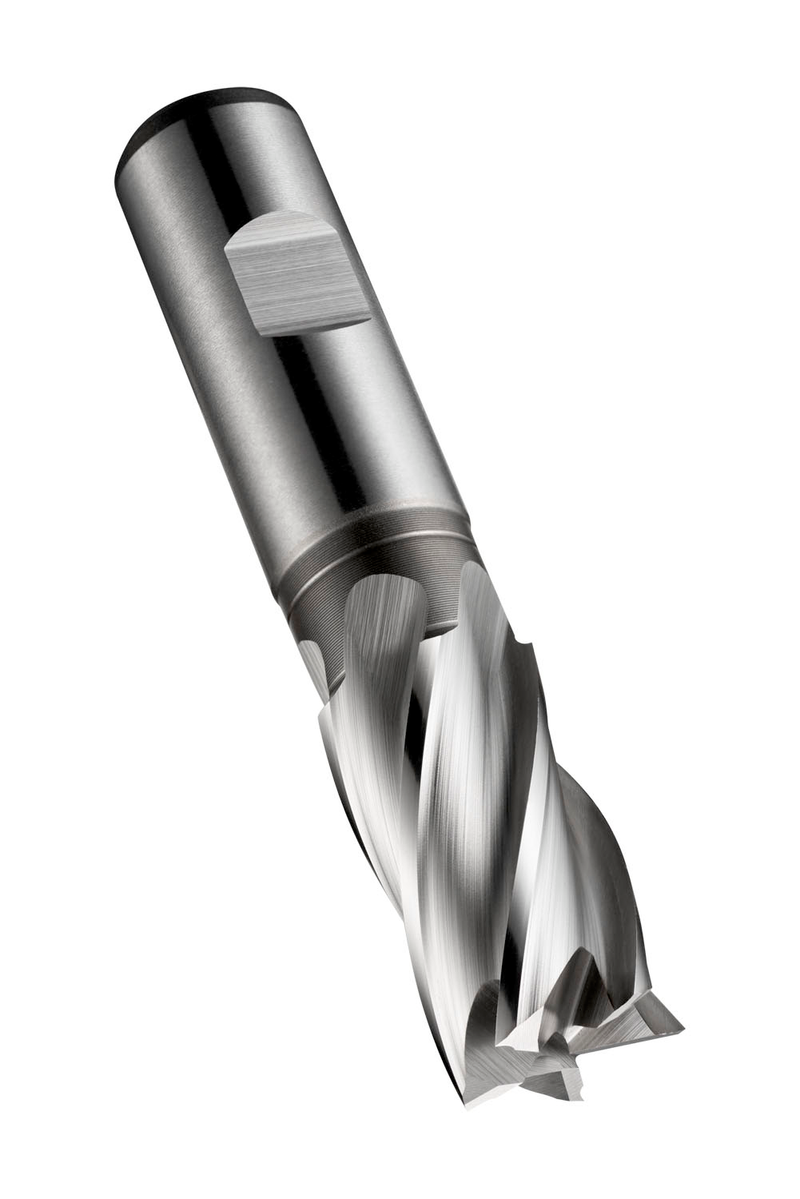

Fraise en bout série courte 4 dents, diamètre 13mm avec longueur de coupe 26mm, longueur totale 83mm et portée 37.5mm avec dégagement de collet, selon la norme DIN 844 K avec une queue Weldon de 12mm, en HSS-E métallurgie des poudres avec finition brillante, hélice 30° et angle de dépouille 12° pour le surfaçage, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24713.0
GradeLumineux
Product Number5984261
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.5118"
Cutting Diameter — mm (DC)13.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354612
EAN7320760354612
File Type Download
C24713.0 — Line Drawing PDF Download
