UGC DOR5984280
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.04 CAD - $84.04 CAD
$84.04 CAD
$84.04 CAD - $84.04 CAD
$84.04 CAD

Vendu en lots de : 1

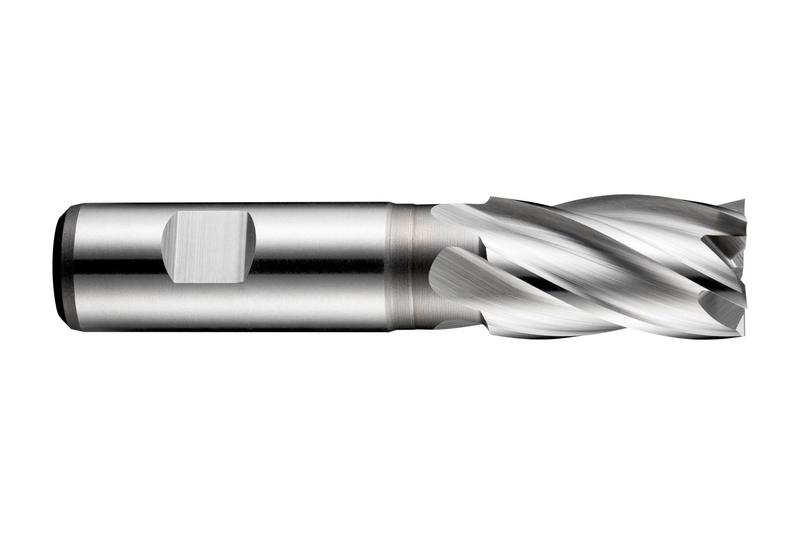

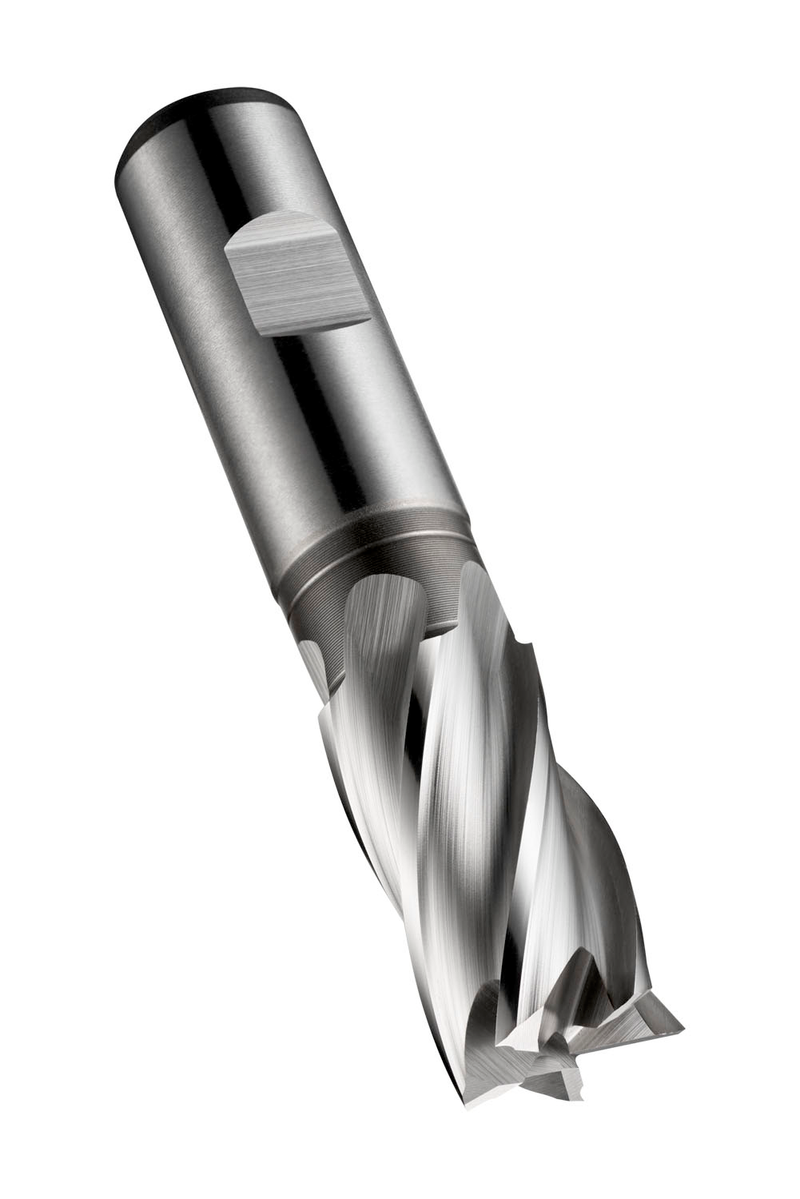

Fraise deux tailles courte 4 dents, diamètre 16mm avec une longueur de coupe de 32mm, longueur totale de 92mm et un dégagement de 43,5mm, selon la norme DIN 844 K avec une queue Weldon de 16mm, en HSS-E métallurgie des poudres finition brillante, hélice à 30° et angle de coupe de 12° pour le fraisage d'épaulement, le fraisage de rainures et l'usinage en ramping dans les aciers à usinage facile et aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24716.0
GradeLumineux
Product Number5984280
Product FamilyC247

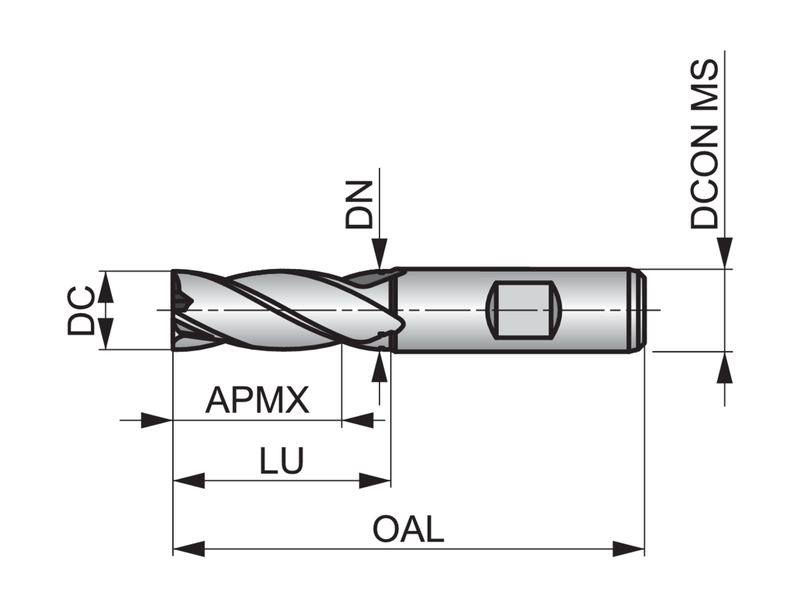

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

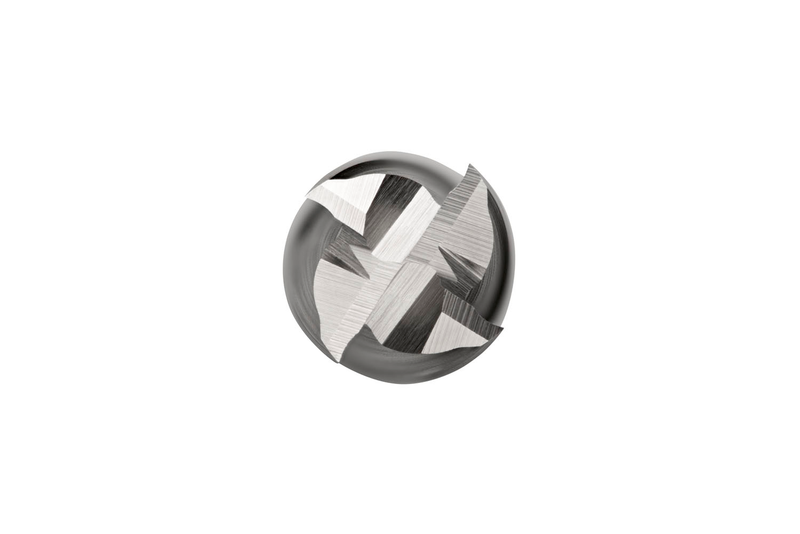

Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354643
EAN7320760354643
File Type Download
C24716.0 — Line Drawing PDF Download
