UGC DOR5984281
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.17 CAD - $41.17 CAD
$41.17 CAD
$41.17 CAD - $41.17 CAD
$41.17 CAD

Vendu en lots de : 1

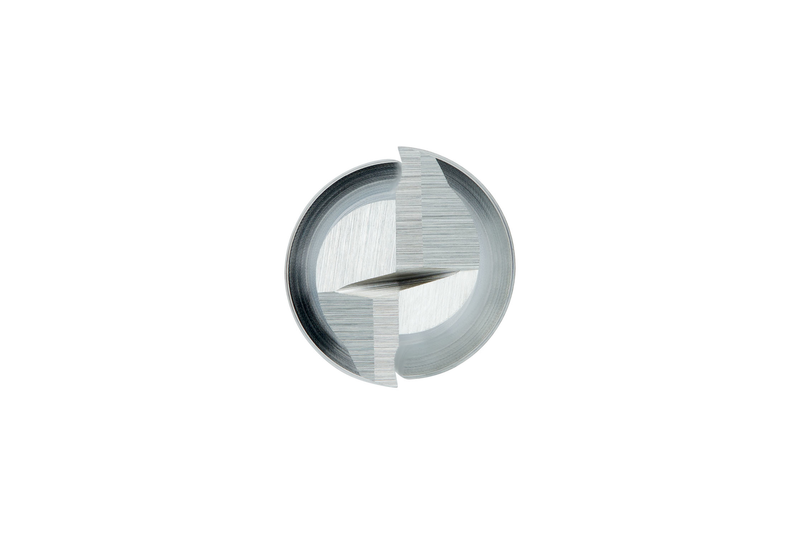

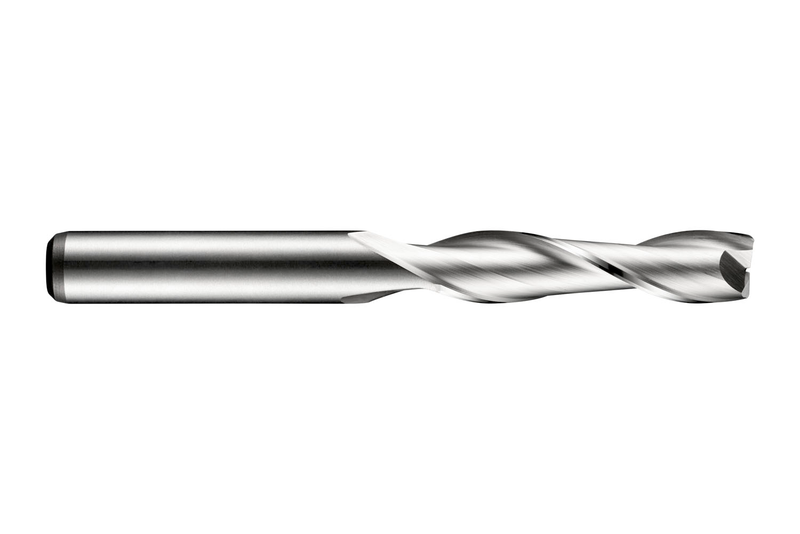

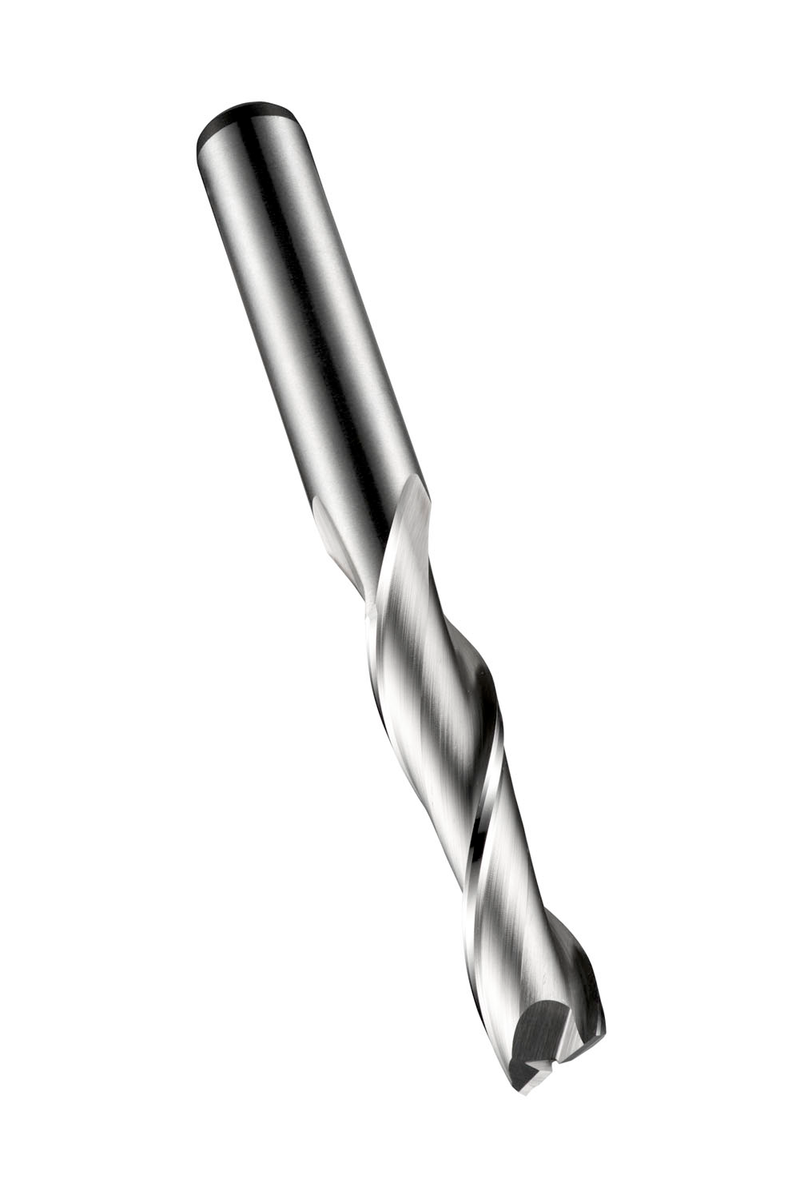

Fraise 2 tailles longue, diamètre 5mm avec une longueur de coupe de 22mm et une longueur totale de 65mm, selon la norme DORMER avec une queue cylindrique de 5mm, en HSS-E cobalt avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1225.0
GradeLumineux
Product Number5984281
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

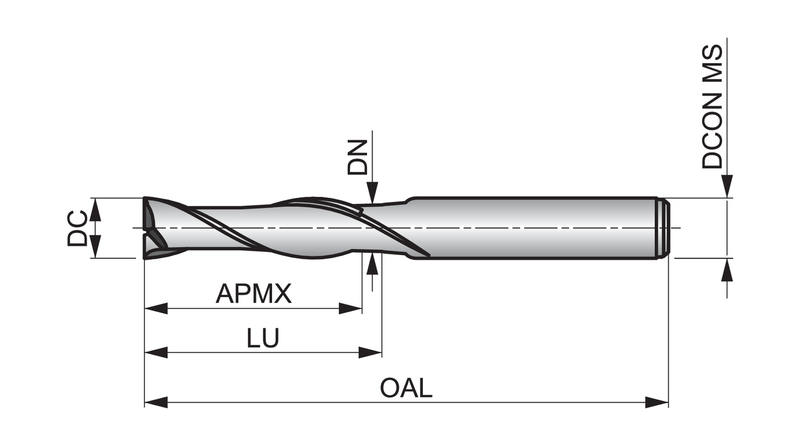

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.5591"
Overall Length — mm (OAL)65.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56509
EAN7320760056509
File Type Download
C1225.0 — Line Drawing PDF Download
