UGC DOR5984283
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.00 CAD - $63.00 CAD
$63.00 CAD
$63.00 CAD - $63.00 CAD
$63.00 CAD

Vendu en lots de : 1

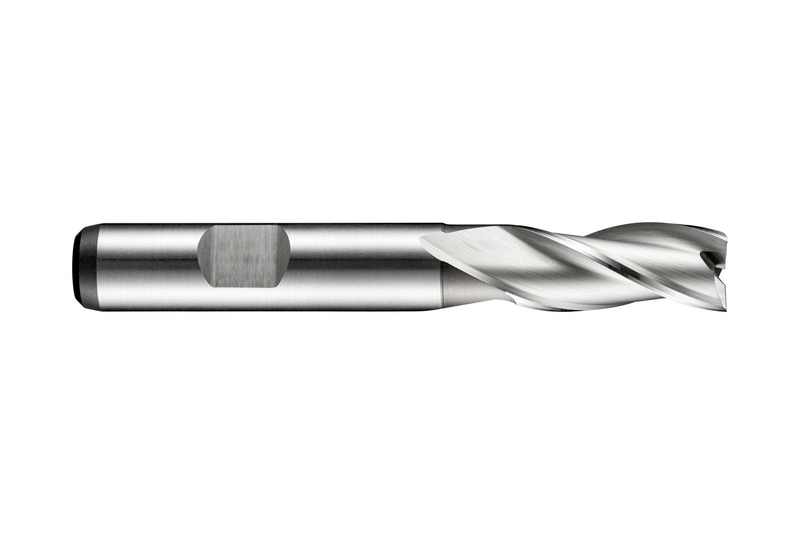

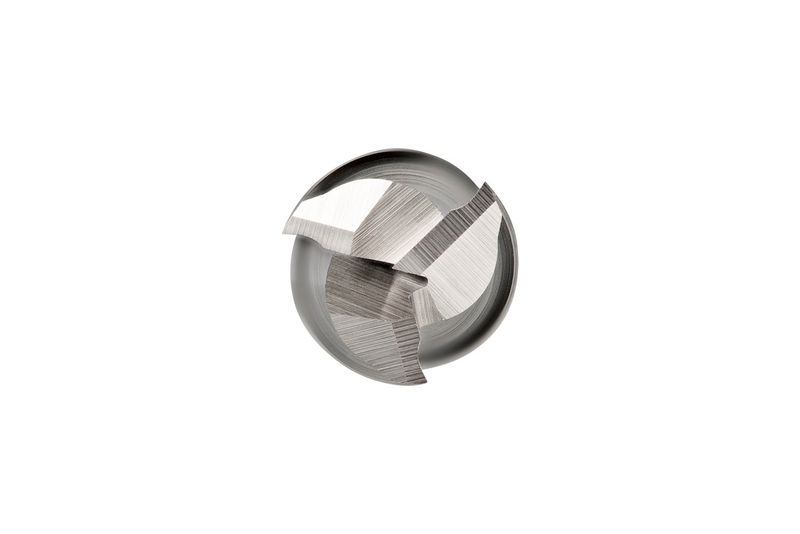

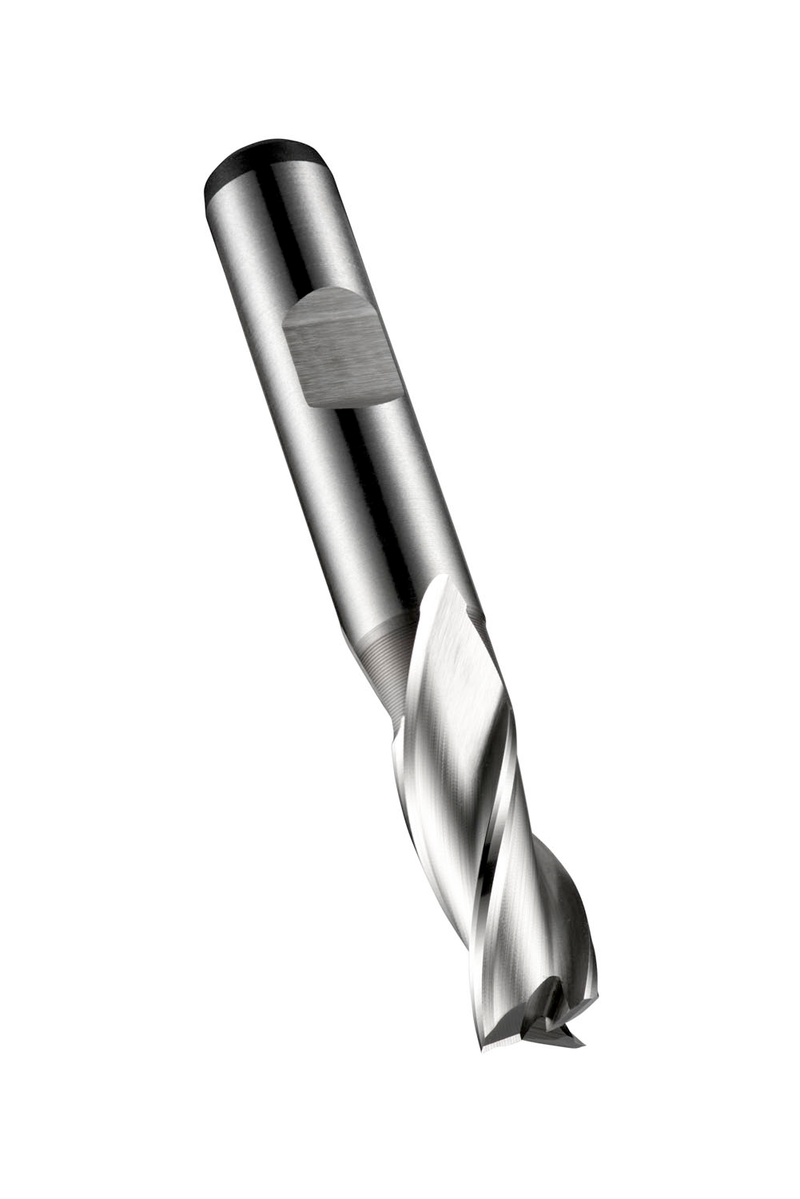

Fraise 3 dents à queue cylindrique, série courte, diamètre 10 mm, longueur de coupe 22 mm, longueur totale 72 mm et portée 31,5 mm avec dégagement de col, selon la norme DIN 844 K avec une queue Weldon de 10 mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers à coupe rapide et les aciers au carbone, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, Ni et Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30510.0
GradeLumineux
Product Number5984283
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Usable Length — mm (LU)31.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572221
EAN7320760572221
File Type Download
C30510.0 — Line Drawing PDF Download
