UGC DOR5984286
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.54 CAD - $41.54 CAD
$41.54 CAD
$41.54 CAD - $41.54 CAD
$41.54 CAD

Vendu en lots de : 1

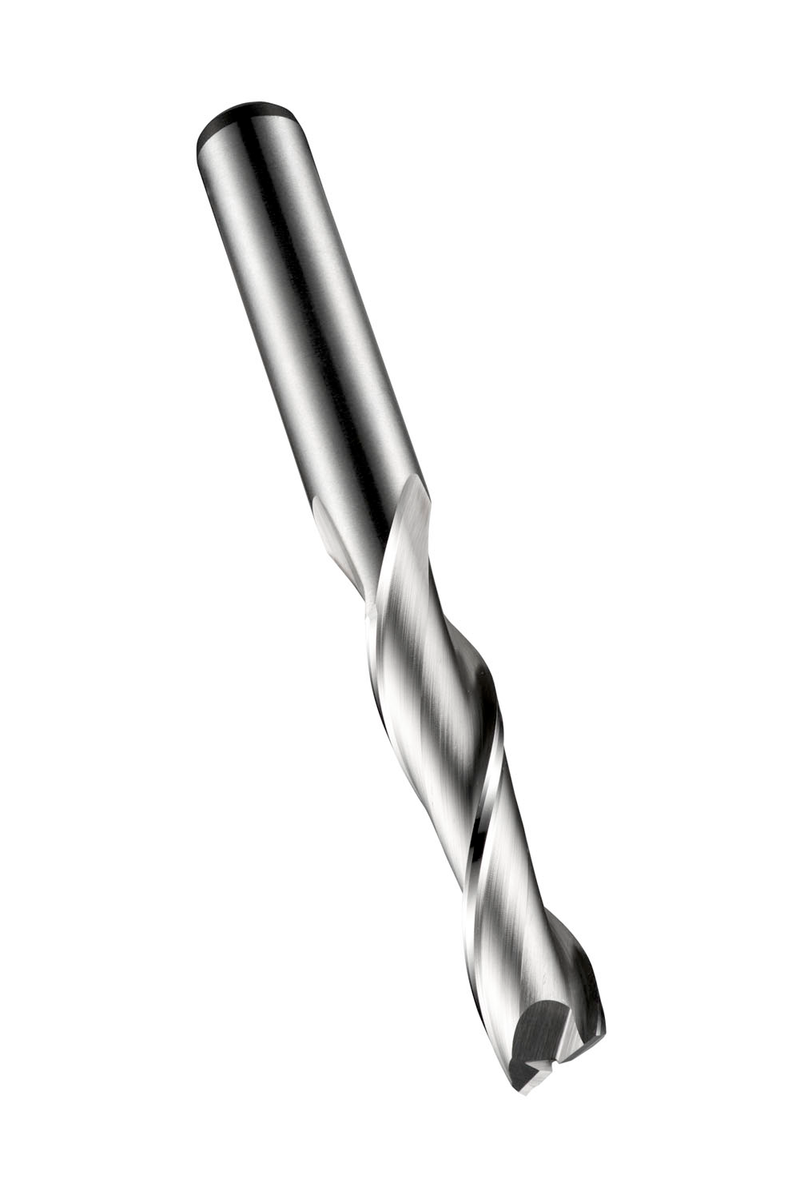

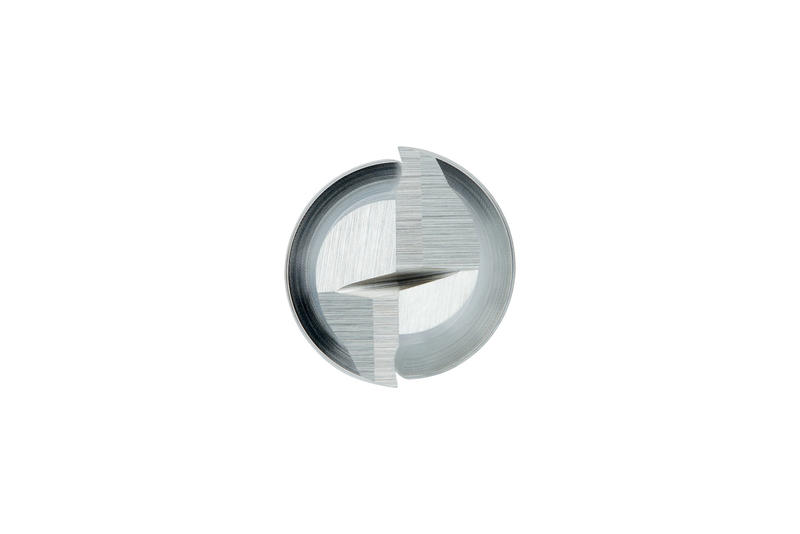

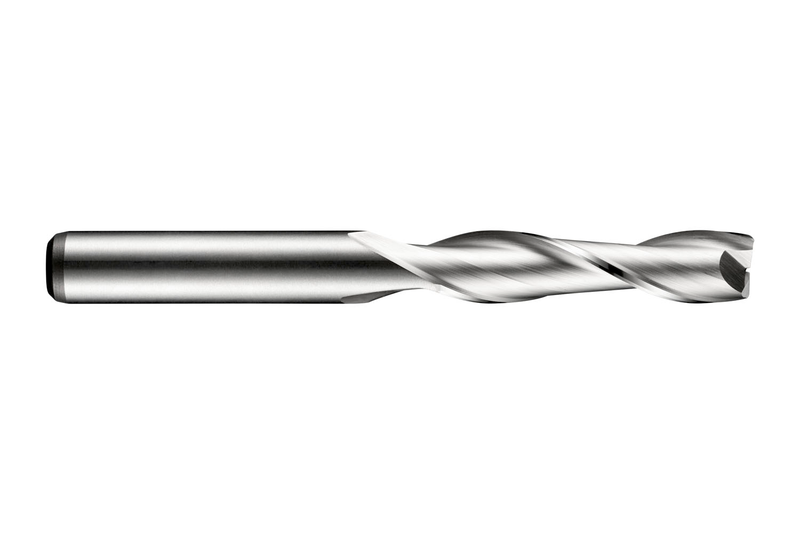

Fraise 2 tailles série longue, diamètre 6mm, avec une longueur de coupe de 27mm et une longueur totale de 75mm, selon la norme DORMER avec un diamètre de queue cylindrique de 6mm, en HSS-E cobalt avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage en plongée et le fraisage de rainures dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1226.0
GradeLumineux
Product Number5984286
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)1.063"
Depth of Cut Max — mm (APMX)27.0 mm

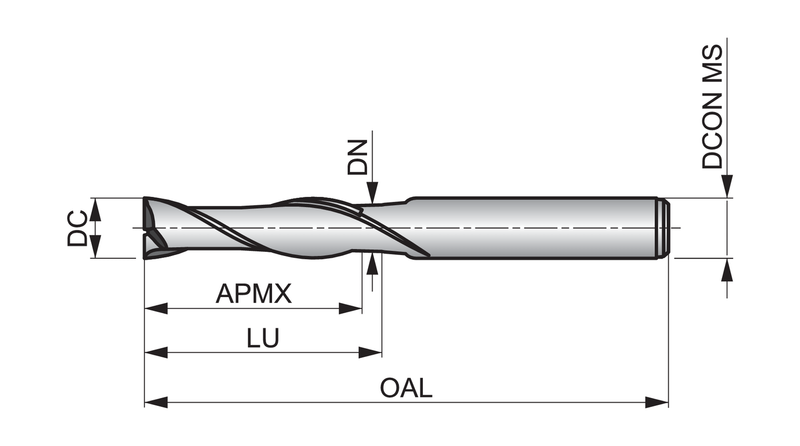

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56516
EAN7320760056516
File Type Download
C1226.0 — Line Drawing PDF Download
