UGC DOR5984290
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$95.67 CAD - $95.67 CAD
$95.67 CAD
$95.67 CAD - $95.67 CAD
$95.67 CAD

Vendu en lots de : 1

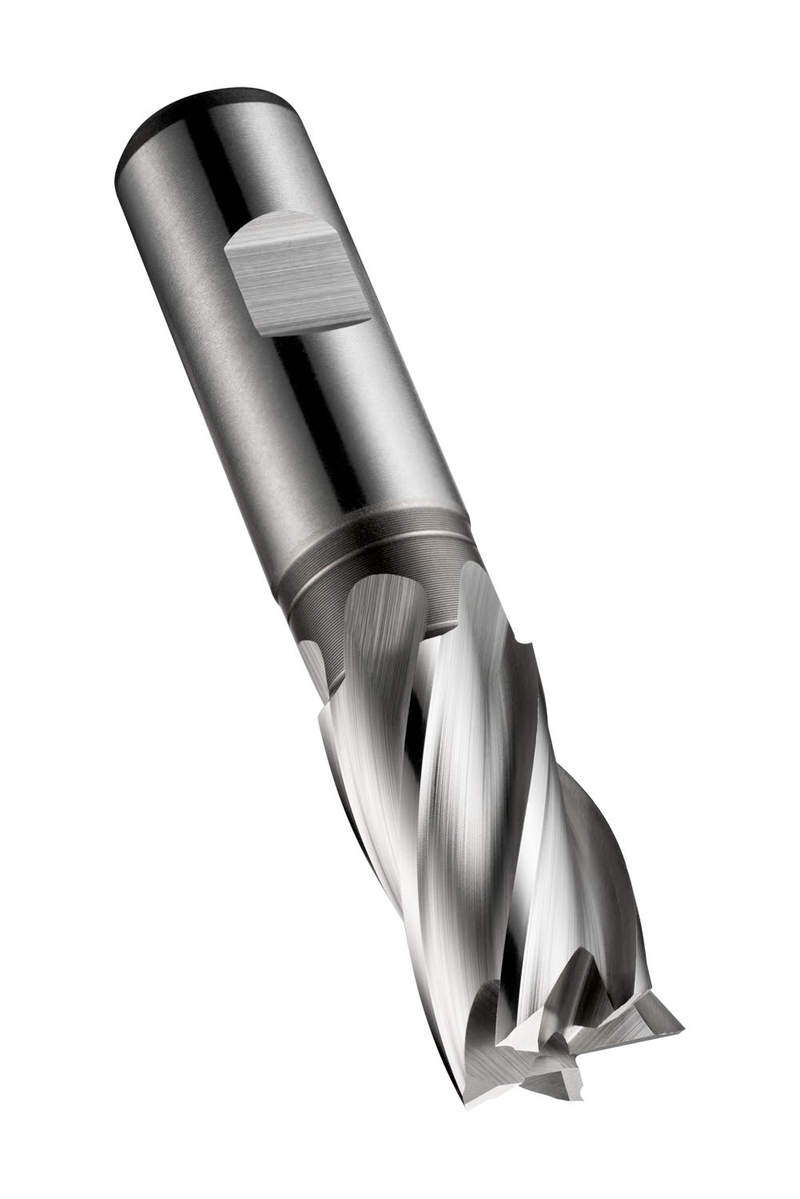

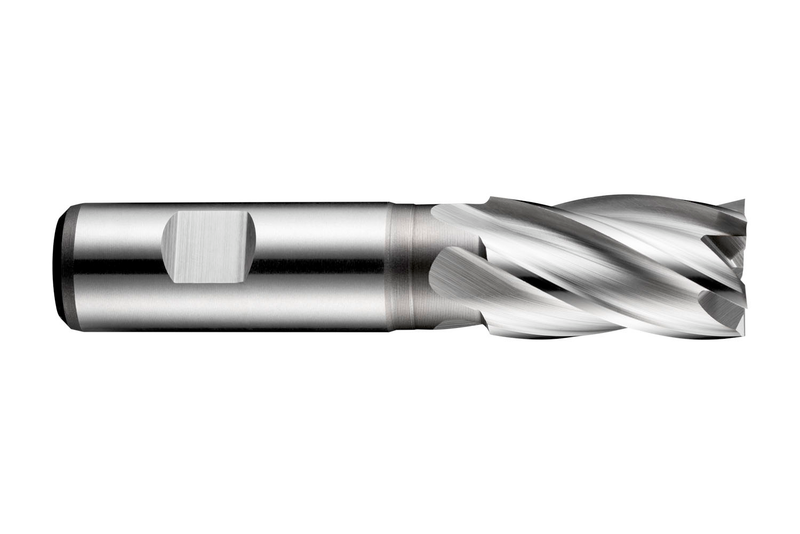

Fraise en bout courte 4 dents, diamètre 18mm, longueur de coupe 32mm, longueur totale 92mm et longueur utile 43,5mm avec dégagement de collet, selon norme DIN 844 K avec queue Weldon 16mm, en HSS-E métallurgie des poudres avec finition brillante, hélice 30° et angle de dépouille 12° pour le surfaçage, l'usinage de rainures et l'usinage en plongée dans les aciers de décolletage et les aciers au carbone non alliés ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24718.0
GradeLumineux
Product Number5984290
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354650
EAN7320760354650
File Type Download
C24718.0 — Line Drawing PDF Download
