UGC DOR5984291
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.67 CAD - $58.67 CAD
$58.67 CAD
$58.67 CAD - $58.67 CAD
$58.67 CAD

Vendu en lots de : 1

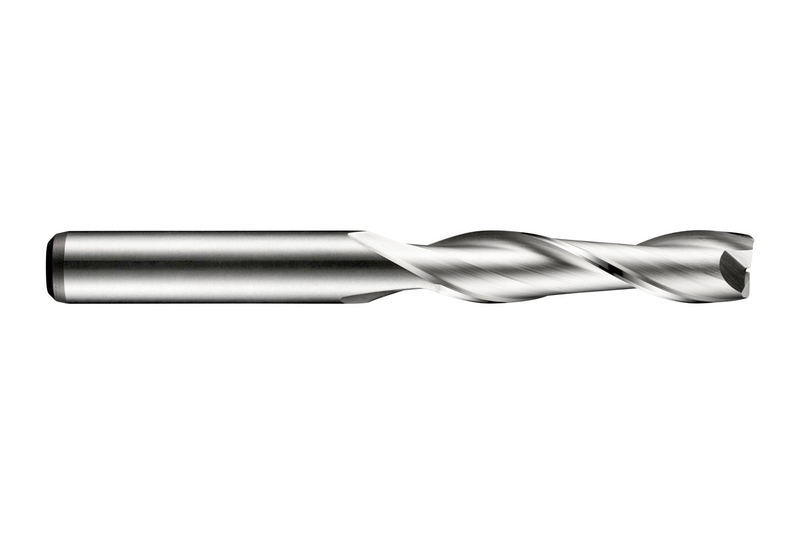

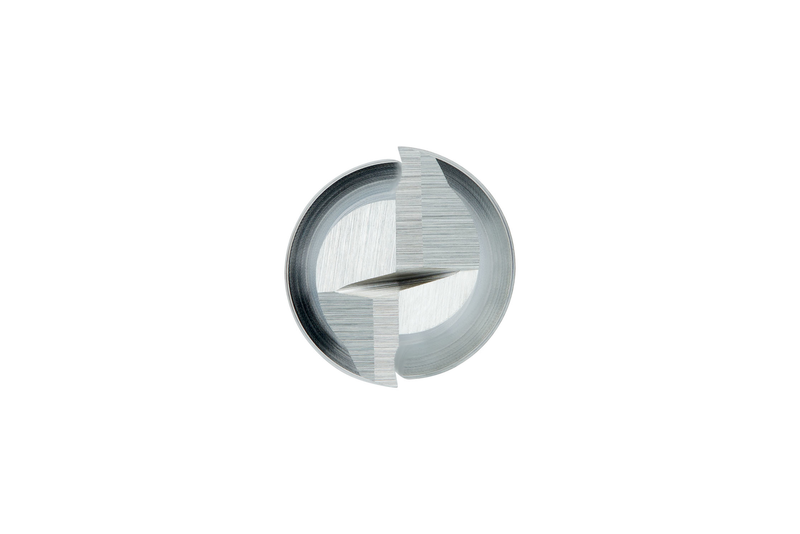

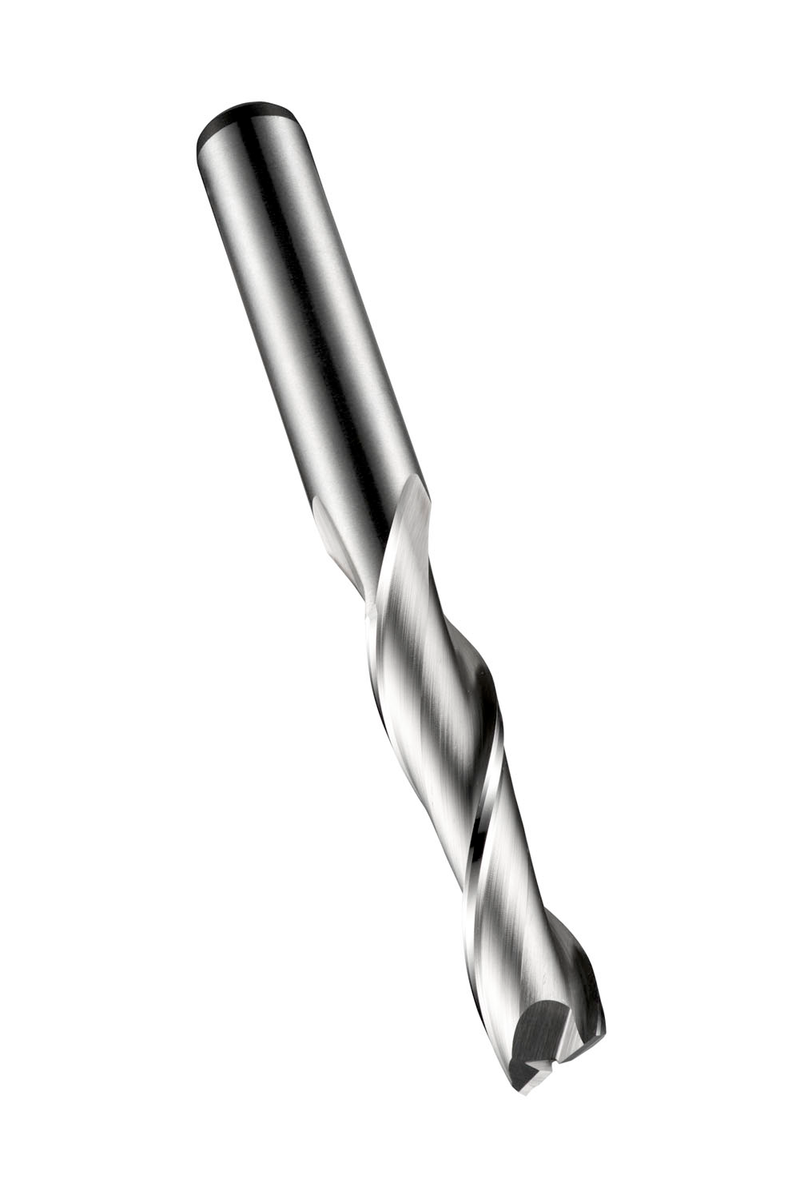

Fraise 2 tailles longue, diamètre 7 mm avec une longueur de coupe de 33 mm et une longueur totale de 85 mm, conforme à la norme DORMER avec un attachement cylindrique de 8 mm, en HSS-E cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements et de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1227.0
GradeLumineux
Product Number5984291
Product FamilyC122
Insert Geometry
Depth of Cut Max — in (APMX)1.2992"
Depth of Cut Max — mm (APMX)33.0 mm
Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)3.3465"
Overall Length — mm (OAL)85.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56523
EAN7320760056523
File Type Download

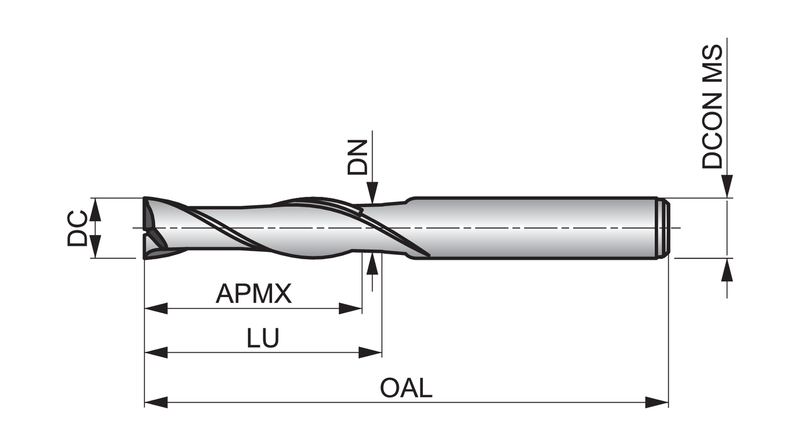

C1227.0 — Line Drawing PDF Download
