UGC DOR5984294
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.64 CAD - $52.64 CAD
$52.64 CAD
$52.64 CAD - $52.64 CAD
$52.64 CAD

Vendu en lots de : 1

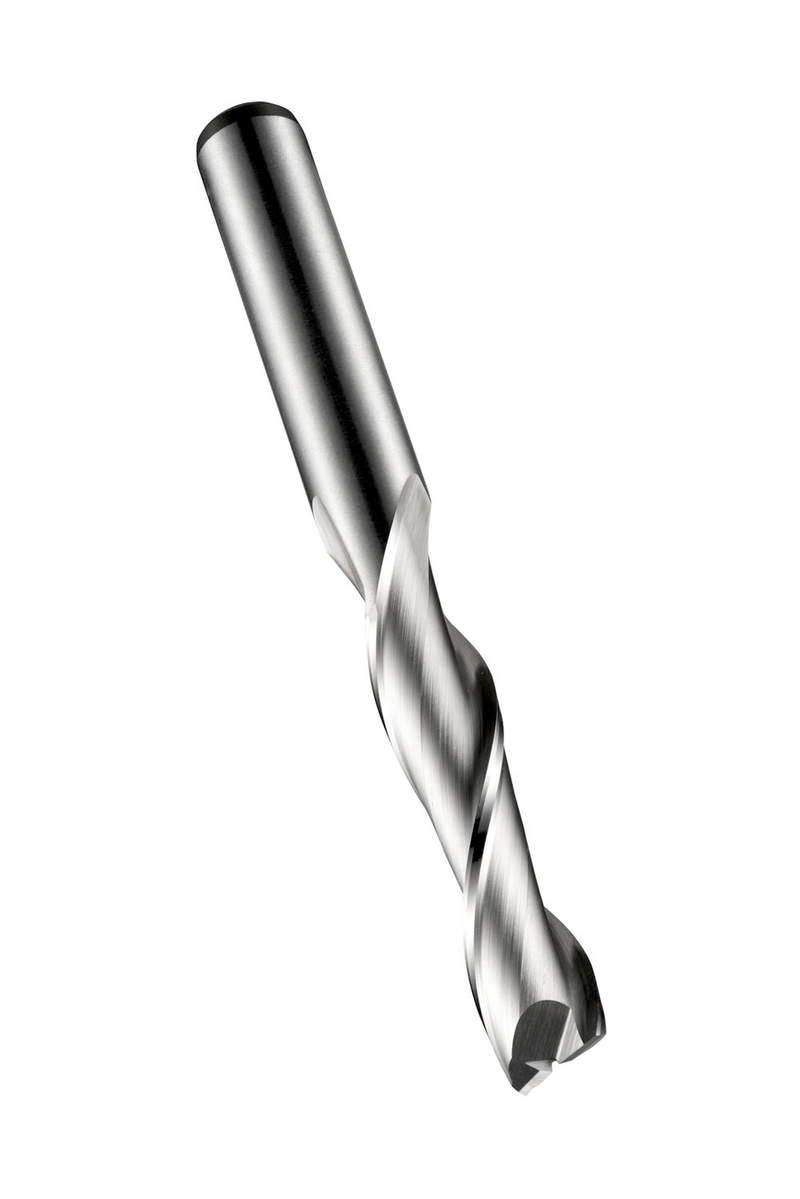

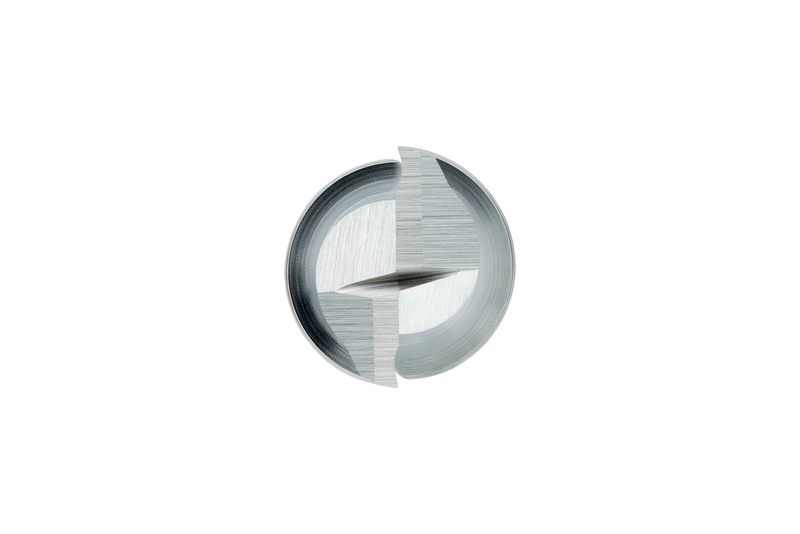

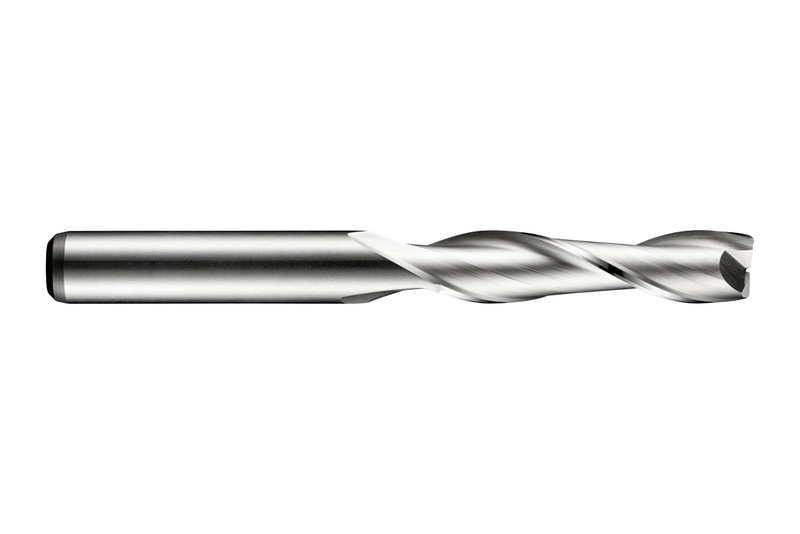

Fraise 2 tailles série longue, diamètre 8mm, longueur de coupe 33mm et longueur totale 85mm, selon norme DORMER avec queue cylindrique 8mm, en HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage en plongée et l'usinage de gorges dans l'acier de décolletage, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1228.0
GradeLumineux
Product Number5984294
Product FamilyC122

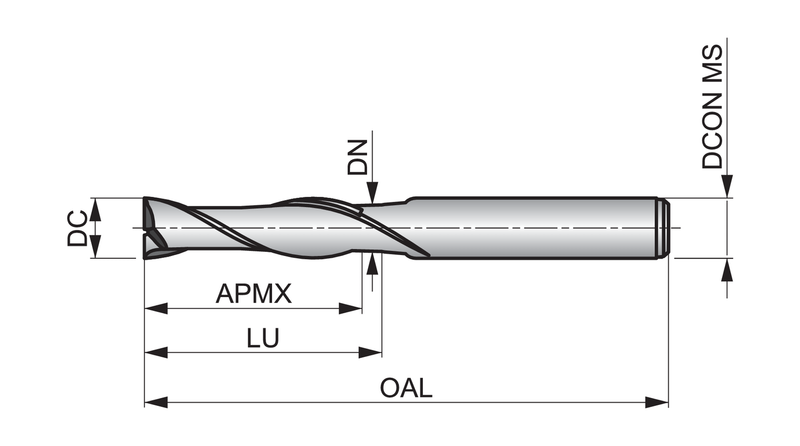

Insert Geometry
Depth of Cut Max — in (APMX)1.2992"
Depth of Cut Max — mm (APMX)33.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.3465"
Overall Length — mm (OAL)85.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 1835A
StandardNorme de travail
Reference Numbers
EDP Number56530
EAN7320760056530
File Type Download
C1228.0 — Line Drawing PDF Download
