UGC DOR5984296
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$139.01 CAD - $139.01 CAD
$139.01 CAD
$139.01 CAD - $139.01 CAD
$139.01 CAD

Vendu en lots de : 1

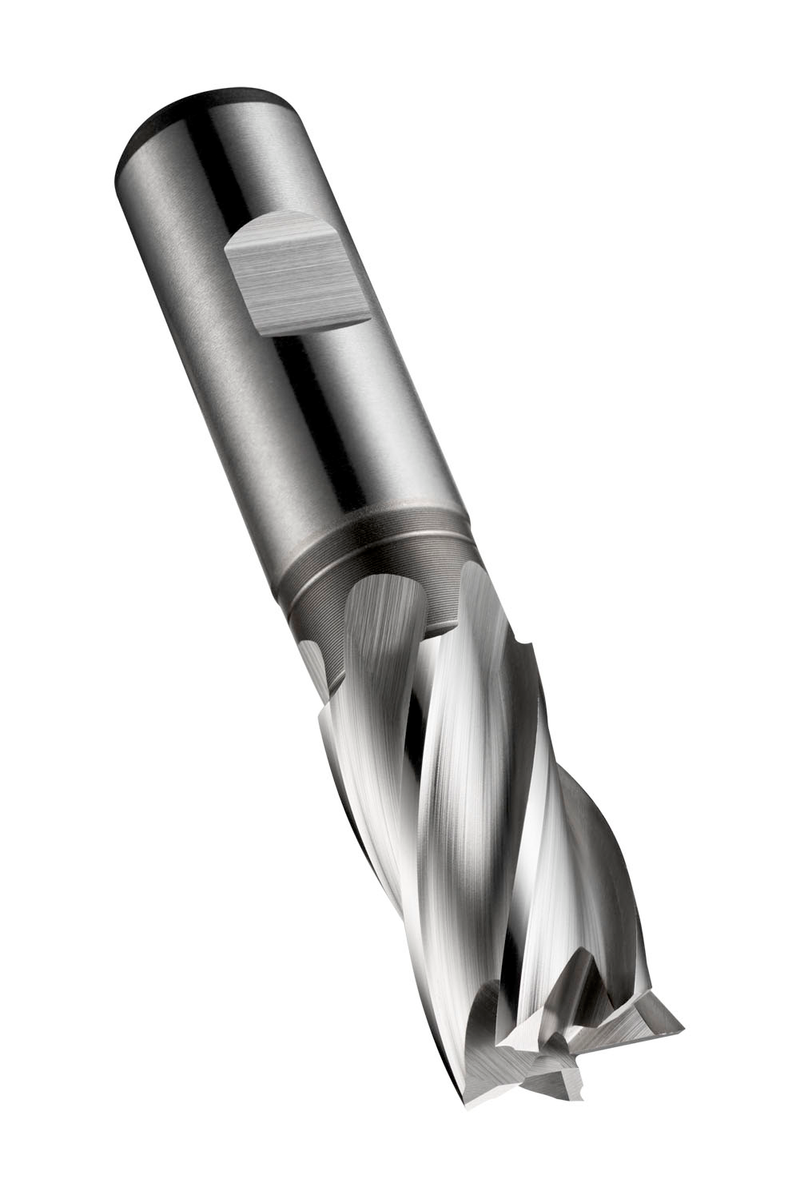

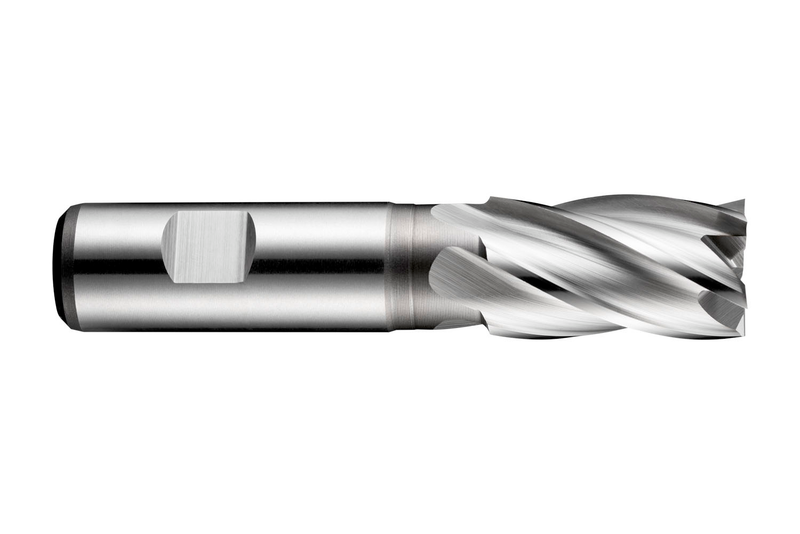

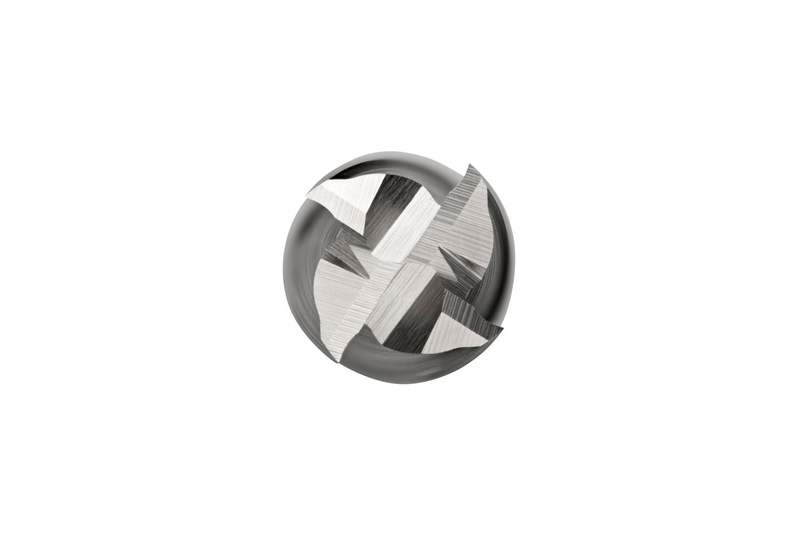

Fraise en bout série courte 4 arêtes, diamètre 19mm, longueur de coupe 32mm, longueur totale 92mm et longueur utile 43,5mm avec dégagement de col, selon la norme DIN 844 K avec queue Weldon 16mm, en HSS-E métallurgie des poudres avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage, l'acier au carbone non allié et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24719.0
GradeLumineux
Product Number5984296
Product FamilyC247

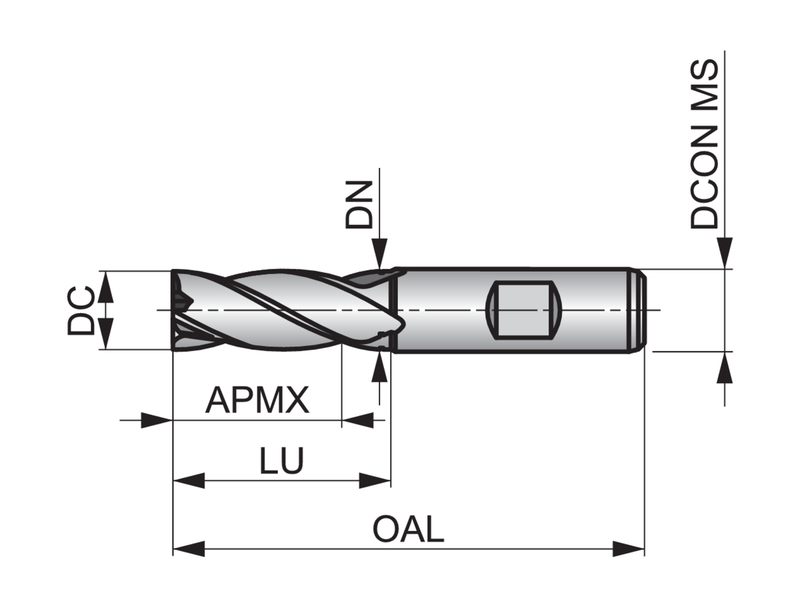

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.748"
Cutting Diameter — mm (DC)19.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number609323
EAN7320760609323
File Type Download
C24719.0 — Line Drawing PDF Download
