C2472.5
C2472.5
C2472.5
C2472.5

C2472.5

UGC DOR5984305
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.27 CAD - $37.27 CAD
$37.27 CAD
$37.27 CAD - $37.27 CAD
$37.27 CAD

Vendu en lots de : 1

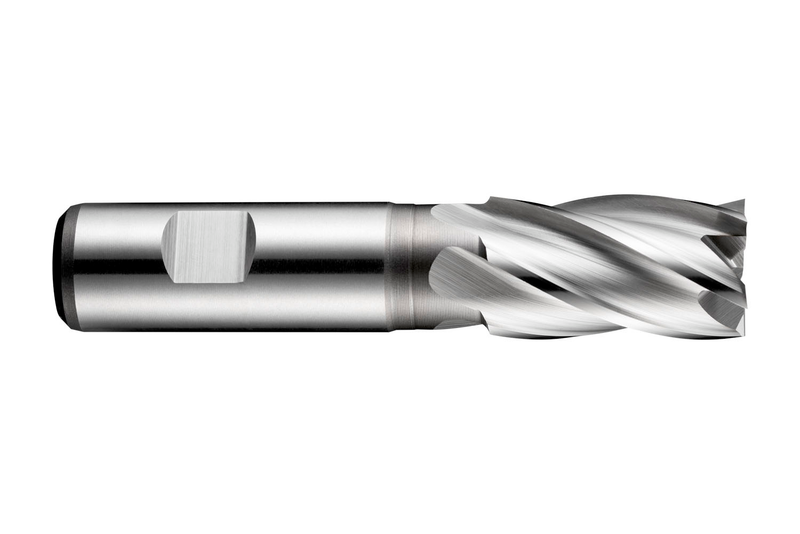

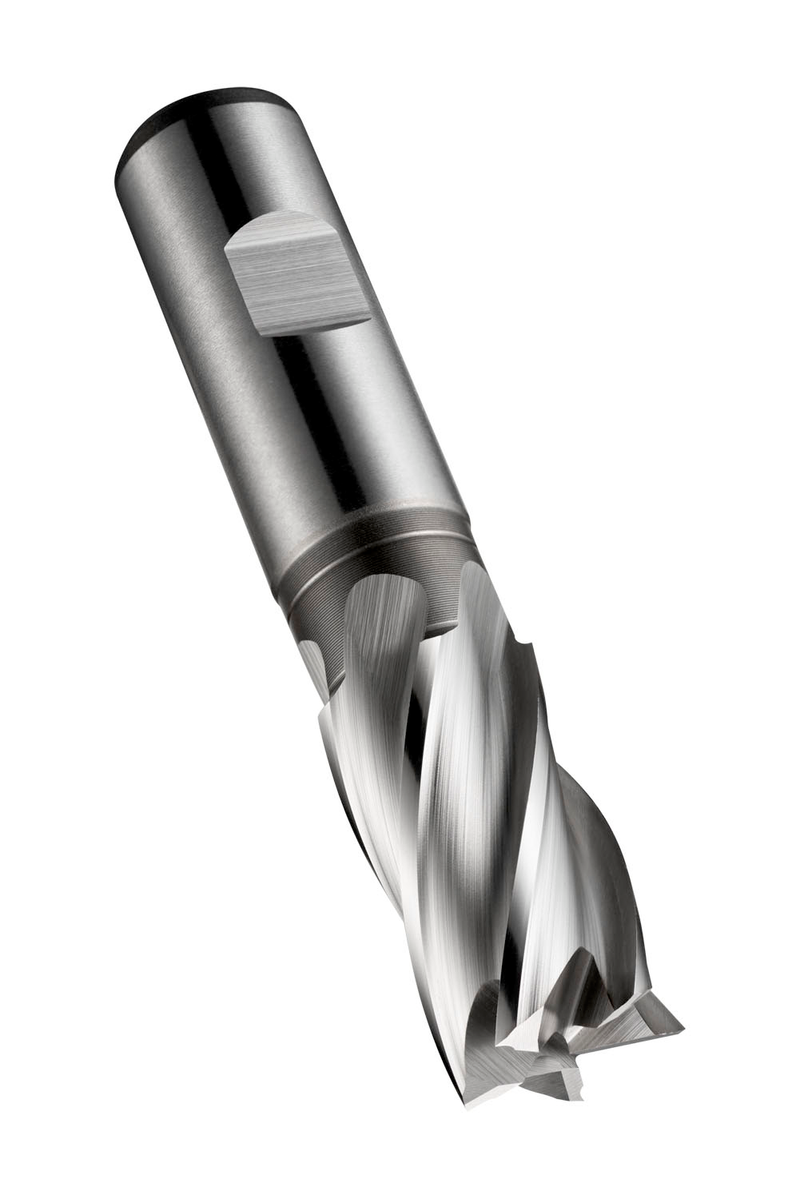

Fraise en bout série courte 4 dents, diamètre 2,5 mm, longueur de coupe 8 mm et longueur totale 52 mm, selon la norme DIN 844 K avec queue Weldon de 6 mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements, de rainures et en ramping dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2472.5
GradeLumineux
Product Number5984305
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354674
EAN7320760354674
File Type Download
C2472.5 — Line Drawing PDF Download
