UGC DOR5984318
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$111.00 CAD - $111.00 CAD
$111.00 CAD
$111.00 CAD - $111.00 CAD
$111.00 CAD

Vendu en lots de : 1

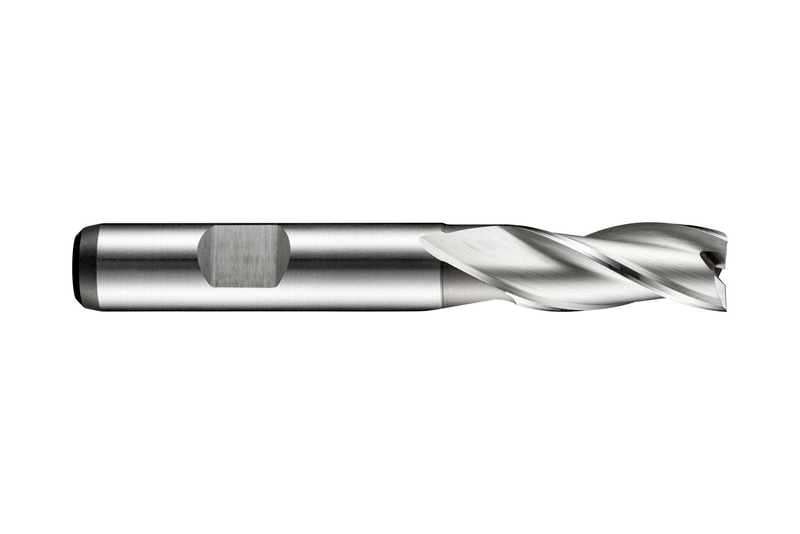

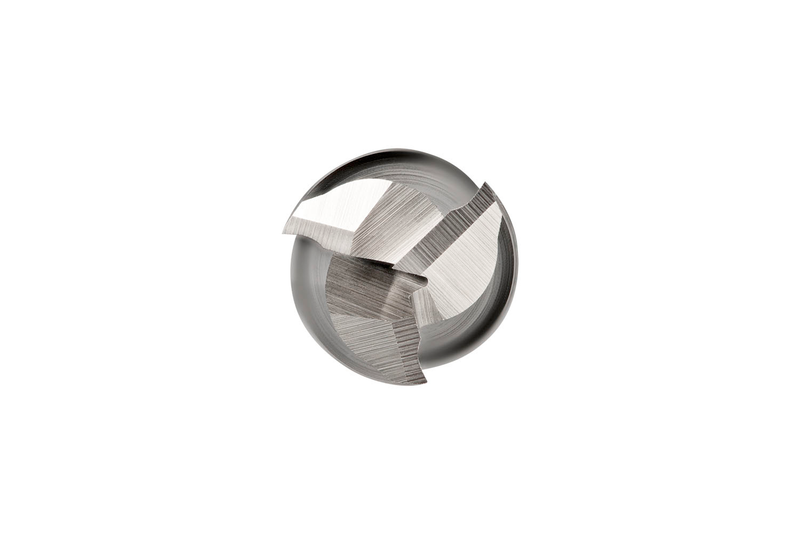

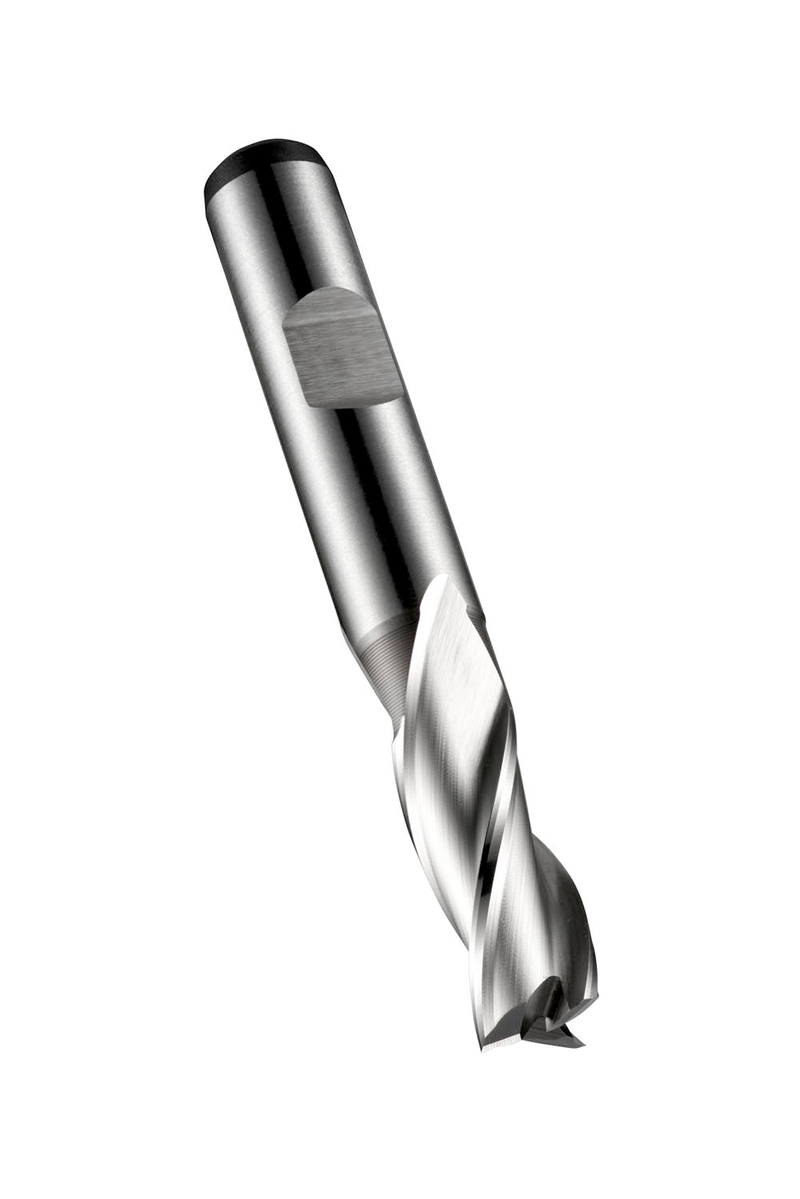

Fraise 3 dents à queue cylindrique, série courte, diamètre 16mm, longueur de coupe 32mm, longueur totale 92mm et portée 43,5mm avec dégagement de collet, selon la norme DIN 844 K avec une queue Weldon de 16mm, en HSS-E PM finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage et les aciers au carbone, le cuivre ou les alliages de cuivre et les superalliages à base de Fe, de Ni et de Co

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C30516.0
GradeLumineux
Product Number5984318
Product FamilyC305
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572283
EAN7320760572283
File Type Download
C30516.0 — Line Drawing PDF Download
