UGC DOR5984325
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$145.89 CAD - $145.89 CAD
$145.89 CAD
$145.89 CAD - $145.89 CAD
$145.89 CAD

Vendu en lots de : 1

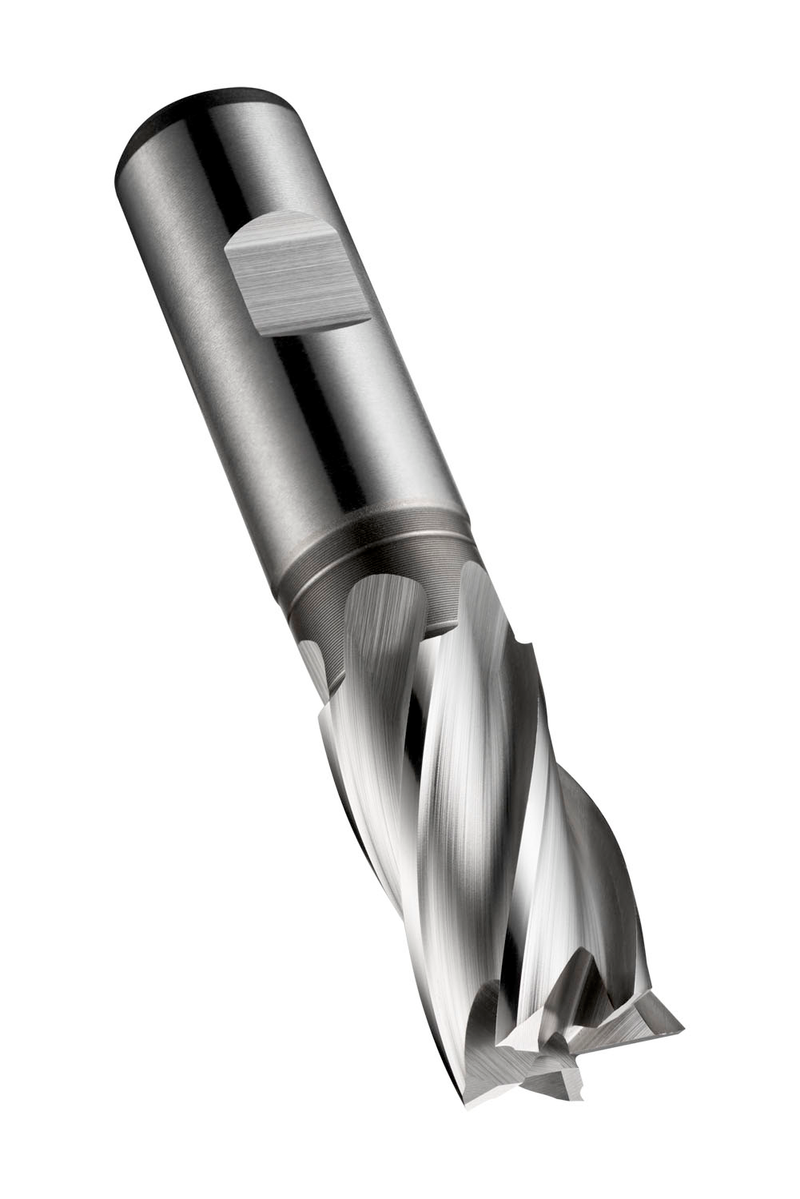

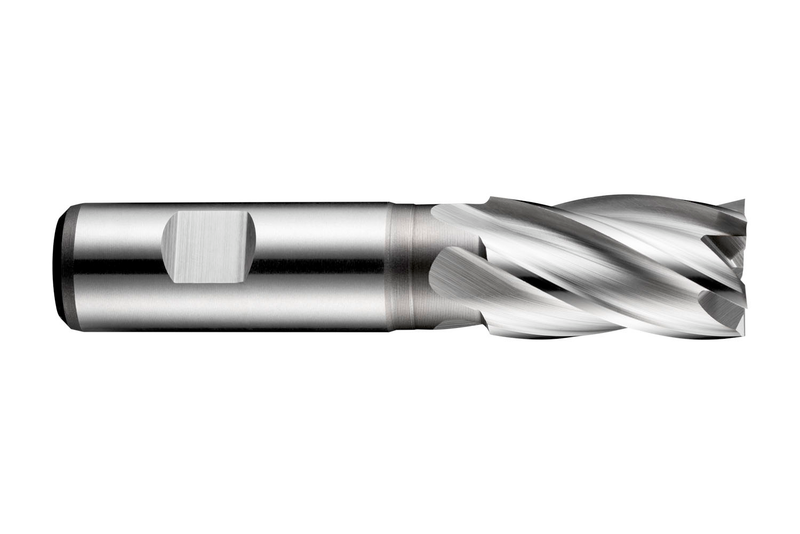

Fraise en bout série courte 5 dents, diamètre 22mm, longueur de coupe 38mm, longueur totale 104mm et portée 53,5mm avec dégagement, conforme à la norme DIN 844 K avec queue Weldon 20mm, en HSS-E métallurgie des poudres finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en acier à usinage libre, acier au carbone ordinaire, cuivre ou alliages de cuivre.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C24722.0
GradeLumineux
Product Number5984325
Product FamilyC247
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

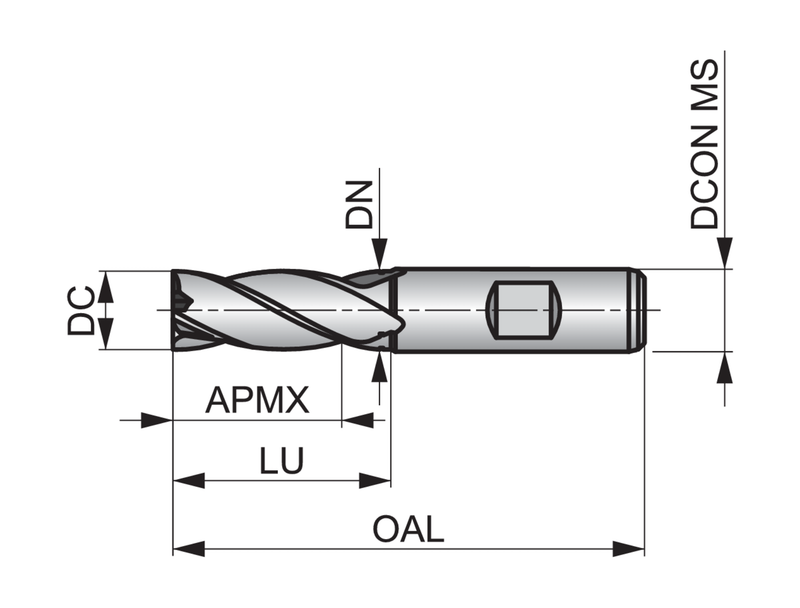

Dimensions
Cutting Diameter — in (DC)0.8661"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354698
EAN7320760354698
File Type Download
C24722.0 — Line Drawing PDF Download
